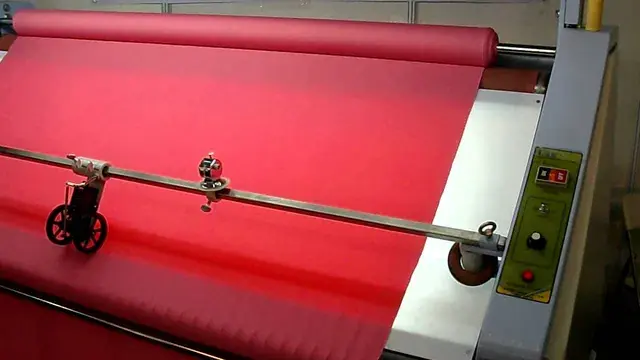

Fabric Inspection Machine
Focus Garment
UZ-F9/60'' / UZ-F9/72'' / UZ-F9/96''
Fabric Inspection-Relax & Winding Machine
Product features
Design for multi function inspector.
Inpectable from roll or fold fabric.
After inspect, able to keep by roll or fold.
In the step of keeping by fold, relaxing device will be sway to make fabric loosening.
Attached with length measuring device and defect counter as standard.
Able to use with Knit , Woven ,Tubular
Specifications
| Model | UZ-F3 | UZ-F9 ( Extra Board) |
|---|---|---|
| Power Supply | 220V./1Ph./50-60Hz. | 220V./1Ph./50-60Hz. |
| Motor | 1 Hp/4 Pole | 1 Hp/4 Pole |
| Fabric width | 60" , 72" , 96" (And make to order as required) | 60" , 72" , 96" (And make to order as required) |
| Speed | 0-80 yard/min. | 0-80 yard/min. |
| Inspection board (height) | 22" | 26" |
| Dimension (WxLxH) | 60"=120x190x170cm. 72"=120x250x170cm. 96"=60x280x170cm. | 60"=120x190x170cm. 72"=120x250x170cm. 96"=60x280x170cm. |
Videos
Data sheets, photos, videos and specifications: Focus Garment.
