Product features

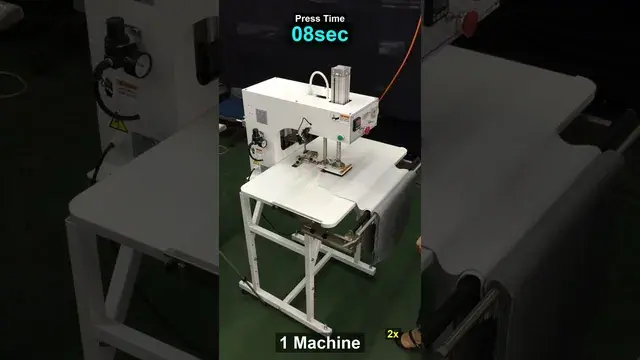

Heat transfer a label from pick up and pressing, by only pressing the button once. Fully Automatic Air Driven. Pressure and Temperature control can be made easily by digital. The upper press plate is processed with Teflon and aluminum, therefore the plate does not soil easily, and can be cleaned easily. The machine stand is standard equipment. Compact and requires no other installation such as an air compressor, and can be installed very easily. A highly efficient and quiet compact heat transfer press with 1,000kg Max. pressure strength. Anti-static type Teflon sheet is used for the upper press plate, providing easy cleaning of the plate.
Specifications
| Description | Automatic Heat Transfer Press |
|---|---|
| Model | HP-16LP |
| Power source | 1phase |
| Rated Output | 550w |
| Temperature (Max) | 195℃ |
| Pressure ( Max) | 0.51 kg/cm |
| Dimension | 820(W)×830(D)×1310(H)mm |
| Weight | 60kg |
| Plate size | 160mm × 160 mm |
Catalogue
The HP-16LP documents Hashima publishes, on their own site. They open in a new tab.
Open the catalogueOpen the instruction manual
And the catalogues Hashima publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Hashima. No prices or stock here: ask us and we will get back to you.
