Juki
LU-1560N, LU-1561N Series
with automatic lubricating mechanism
2-needle, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook
Product features
JUKI's unique feed mechanism promises excellent efficiency of feed. In addition to the standard models of 2-needle machines, other models intended for special purposes are available, one having a thread trimmer. The machine is applicable to an extended range of heavy materials for industrial use, such as cargo handling belts and containers, as well as those for industrial use, such as cargo handling belts and containers, as well as those for general use, such as car seats, sofas and bags, thereby contributing to both improved quality and increased productivity.
A new feed mechanism with a rectangular feeding motion prevents stitch gathering
The alternating vertical movement mechanism prevents irregular stitches
Consistent seam quality
Higher lift of the presser foot
The high, 16mm (13mm for LU-1565N) presser foot lift enables easy material handling.

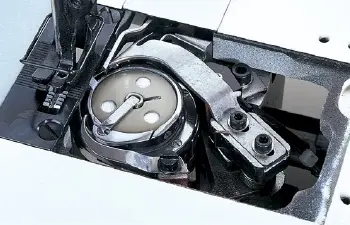

The highly efficient vertical-axis double-capacity hook is equipped as standard
With the adoption of this vertical-axis double-capacity hook, the frequency of bobbin thread changing is reduced, promising sewing work of increased efficiency.

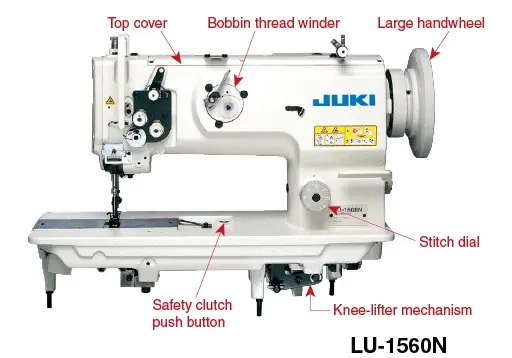

LU-1560N, LU-1561N (with automatic lubricating mechanism)
Basic performance
Improved operability

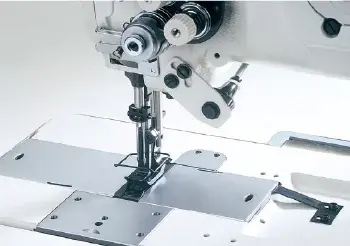

The area around the needle entry is designed to be easily observed (LU-1560N-7, LU-1561N-7)
Since the needle thread tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one-touch type reverse feed button is easily viewable. This substantially contributes to improved operability.

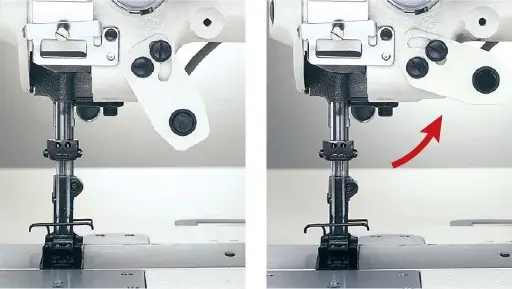

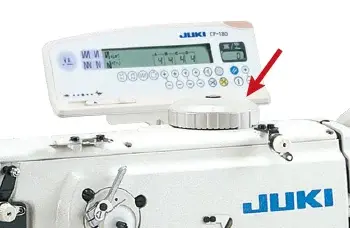

The walking foot and presser foot's alternating vertical movement can be set and changed with ease (LU-1560N-7, LU-1561N-7)
Thread trimming without fail (LU-1560N-7, LU-1561N-7)
The machine leaves a shorter needle thread after thread trimming, improving thread consumption efficiency. With a rigid knife and improved cam shape, the thread trimmer cuts thread as thick as #5 without fail.
A helpful automatic reverse feed function is provided as standard (LU-1560N-7, LU-1561N-7)
Bottom-feed micro-adjustment mechanism is provided as standard (LU-1510N-7, LU-1511N-7)
The 1-needle type machine is equipped with a bottom-feed micro-adjustment mechanism with the needle feed amount fixed. This helps prevent irregular stitches which are free from pitch errors.
Specifications
*"sti/min" stands for "Stitches per Minute."
| Model name | LU-1560N | LU-1561N | LU-1560N-7 | LU-1561N-7 | LU-1565N |
|---|---|---|---|---|---|
| Model name | - | - | With automatic thread trimmer | With automatic thread trimmer | With organized split needle bar |
| Application | Heavy-weight | Heavy-weight | Heavy-weight | Heavy-weight | Heavy-weight |
| Max. sewing speed | 2,500sti/min* | 2,500sti/min* | 2,500sti/min* | 2,500sti/min* | 2,000sti/min* |
| Max. stitch length | 9mm (forward /backward) | 9mm (forward /backward) | 9mm (forward /backward) | 9mm (forward /backward) | 9mm (forward /backward) |
| Needle bar stroke | 36mm | 36mm | 36mm | 36mm | 33.4mm |
| Lift of the presser foot | By hand: 9mm, By knee: 16mm (max.) | By hand: 9mm, By knee: 16mm (max.) | By hand: 9mm, Auto: 16mm | By hand: 9mm, Auto: 16mm | By hand: 9mm, By knee: 13mm (max.) |
| Auto-lifter | Option | Option | Provided as standard (pneumatic auto-lifter: AK-147B) | Provided as standard (pneumatic auto-lifter: AK-147B) | Option |
| Needle gauge | 4.8mm, 6.4mm, 7.9mm, 9.5mm, 12.7mm (3/16, 1/4, 5/16, 3/8, 1/2) | 6mm, 8mm, 10mm, 12mm | 4.8mm, 6.4mm, 7.9mm, 9.5mm, 12.7mm (3/16, 1/4, 5/16, 3/8, 1/2) | 6mm, 8mm, 10mm, 12mm | 4.8mm, 6.4mm, 7.9mm (3/16, 1/4, 5/16) |
| Organized split needle bar | - | - | - | - | Provided as standard |
| Alternating vertical movement | 2.5~6.5mm | 2.5~6.5mm | 1~6.5mm | 1~6.5mm | 2.5~6.5mm |
| Dial for adjustment of alternating vertical movement | - | - | Provided as standard | Provided as standard | - |
| Thread take-up | Slide type | Slide type | Slide type | Slide type | Slide type |
| Hook | Vertical-axis double-capacity hook | Vertical-axis double-capacity hook | Vertical-axis double-capacity hook | Vertical-axis double-capacity hook | Vertical-axis double-capacity hook |
| Needle (at the time of delivery) | 135×17 (Nm160) Nm125~Nm180 | 135×17 (Nm160) Nm125~Nm180 | 135×17 (Nm160) Nm125~Nm180 | 135×17 (Nm160) Nm125~Nm180 | 135×17 (Nm160) Nm125~Nm180 |
| Thread | #30~#5, B46~B138, Nm=60/3~20/3 | #30~#5, B46~B138, Nm=60/3~20/3 | #30~#5, B46~B138, Nm=60/3~20/3 | #30~#5, B46~B138, Nm=60/3~20/3 | #30~#5, B46~B138, Nm=60/3~20/3 |
| Locus of feed | Rectangular feed | Rectangular feed | Rectangular feed | Rectangular feed | Rectangular feed |
| Needle thread tension box | Single-tension method | Single-tension method | Single-tension method | Single-tension method | Single-tension method |
| Pitch changing method | By dial | By dial | By dial | By dial | By dial |
| Bobbin thread winder | Built on the machine head | Built on the machine head | Built on the machine head | Built on the machine head | Built on the machine head |
| Knee-lifter mechanism | Built on the machine head | Built on the machine head | - | - | Built on the machine head |
| Safety mechanism | Provided as standard (reset with the push of a button) | Provided as standard (reset with the push of a button) | Provided as standard (reset with the push of a button) | Provided as standard (reset with the push of a button) | Provided as standard (reset with the push of a button) |
| Lubrication | Automatic | Automatic | Automatic | Automatic | By an oiler (hook: automatic) |
| Lubricating oil | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) |
| Distance from needle to machine arm | 255mm | 255mm | 255mm | 255mm | 255mm |
| Bed size | 517mm×178mm | 517mm×178mm | 517mm×178mm | 517mm×178mm | 517mm×178mm |
| Weight of the machine head | 45kg | 45kg | 51kg | 51kg | 45kg |
| Automatic reverse feed function | Option | Option | Provided as standard | Provided as standard | - |
| Compressed air and air consumption | - | - | 0.5MPa {5kg/cm²} • 0.3Nl/min | 0.5MPa {5kg/cm²} • 0.3Nl/min | - |
| Power requirement | - | - | Single-phase 100~120V, 220~240V 3-phase 200~220V, 220~240V | Single-phase 100~120V, 220~240V 3-phase 200~220V, 220~240V | - |
| Power consumption | - | - | 550VA | 550VA | - |
