Seiko

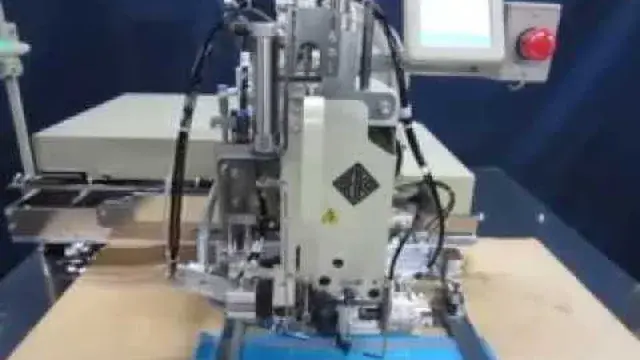

SAM-23
Single needle, Long arm, Super heavy duty, Large oscillating shuttle hook, Programmable electronic pattern sewing machine.
Product features
Applications
For sewing super heavy weight materials. Suitable for sewing products such as safety and logging belts, cargo slings, harnesses, construction barriers, parachutes, balloons and book binding.
Variety
| SAM-23 |
|---|
Specifications
| Max. sewing speed | 500s.p.m. |
|---|---|
| Max.stitch length | 13mm |
| Amount of inside presser foot | 35mm |
| Amount of outside presser foot | 28mm |
| Needle bar stroke | 66mm |
| Needle(Standerd) | Schmetz 1000H #250 (#27) |
| Hook | Large oscillating shuttle hook |
| Sewing area *Select from 1 to 3 | 1.(X)250mm×(Y)150mm 2.(X)350mm×(Y)150mm 3.(X)650mm×(Y)150mm |
| Scale up/down function | 20-200% for each X-Y axis (1 increment/step) |
| Thread trimmer *when the function is selected. | Heat cutting system |
| Lubrication | Semi-automatic lubrication type |
Videos
Catalogue
The SAM-23 documents Seiko publishes, on their own site. They open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Seiko.
