Seiko
SAM-40

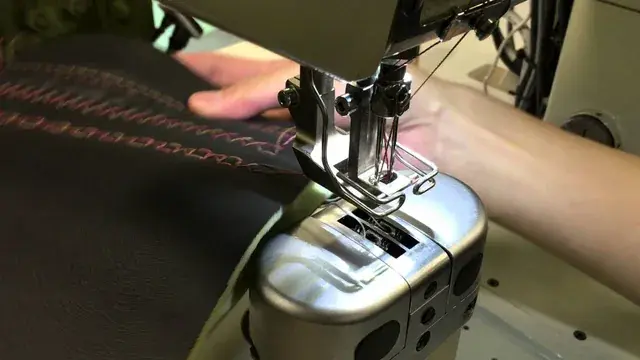

Two needle, Post bed, Large vertical axis hook, Multi different ornamental stitching, Automatic presser foot lift, Compound feed and walking foot, Lockstitch sewing machine.
Product features
For sewing medium to heavy weight materials such as leather, vinyl, synthetics and laminated and coated materials. Suitable for sewing such as automobile upholstery tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment and wearing apparel outdoor clothing.
| SAM-40 |
|---|
Specifications
| Max. sewing speed | 450s.p.m. |
|---|---|
| Max.stitch length | 10mm |
| Clearance under presser foot | 9mm(by hand) 16mm(by automatic foot lifter) |
| Needle bar stroke | 34mm |
| Needle(Standard) | PFx134KS #21-#23 (Standerd #23) |
| Hook | Large vertical axis hook (2.0 times) |
| Amount of walking foot movement | 1～7mm |
| Lubrication | Semi-automatic lubrication type |
Catalogue
The SAM-40 documents Seiko publishes, on their own site. They open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Seiko. No prices or stock here: ask us and we will get back to you.
