Yao Han

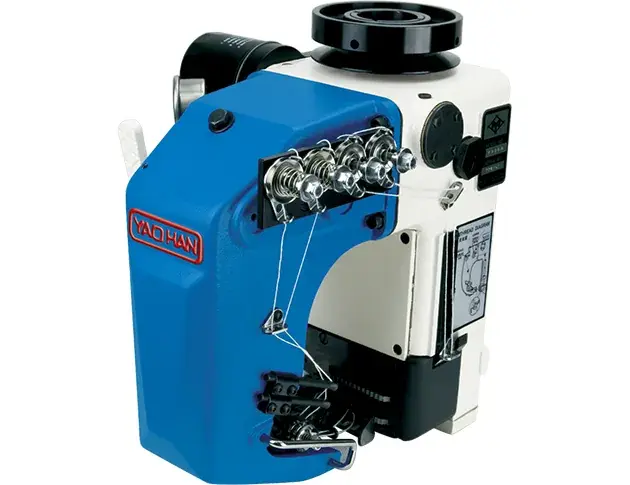

F920A / F920AC
High Speed Bag Closer (2-needle , 4-thread)
Product features
Max sewing speed 1900 r.p.m.
High speed obtained with low vibration.
Desgned to have long-range smooth performance with low vibration,and the latest innovation in trouble-free-bag-sewing technology.
Self-lubrication system protects moving parts and ensure maximum productivity with low maintenance.
Easily adaptable to your existing equipment,can use with standard two thread stitch or 1-thread stitch and stitch width is adjustable from 2~5 stitches per inch (7~12mm).
For bag closing all kinds of paper,cotton,PP/PE,hessian,jute etc.
Specifications
| Model | F920A | F920AC |
|---|---|---|
| Speed | 1900 r.p.m. | |
| Material Thickness | 8 mm | |
| Stitch | 7~12 mm | |
| Stitch Type | 2-needle 4-thread chain stitch | |
| Cutter Type | Guillotine | Auto scissors |
| Closing Type | Standard | Standard / Tape |
| Tape Cutter | - | Auto scissors |
| Air Pressure | - | 4 kg/cm2 |
| Air Consumption | - | 3.5 N/min. |
| N.W. | 30 kg | 34 kg |
| G.W. | 31 kg | 35 kg |
Catalogue
The F920A / F920AC documents Yao Han publishes, on their own site. They open in a new tab.
And the catalogues Yao Han publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Yao Han. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
