Consew

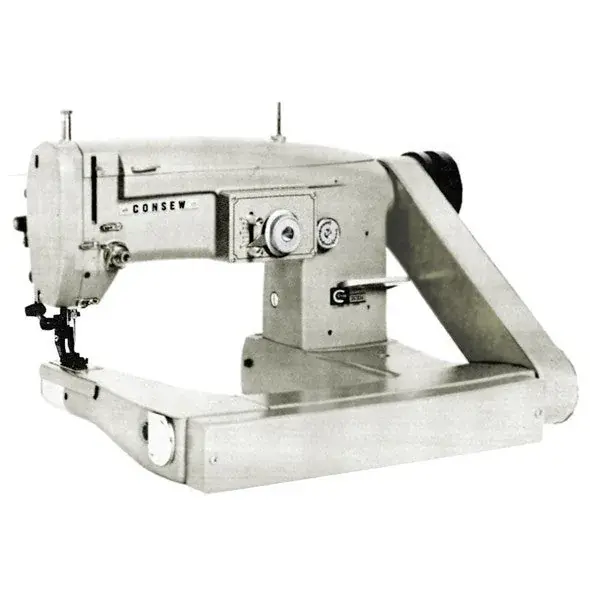

Consew 347R-1A-1UF
Feed-Off-The-Arm, Zig-Zag, Upper and Lower Feed Machine
Product features
Feed-Off-The-Arm, Zig-Zag, Upper and Lower Feed Machine
Features
Cylindrical arm suitable for any tubular pieces.
Upper and lower feed mechanism to avoid puckering and material slippage.
Good for any stretchable material , such as rubber coated cloth, vinyl, elastic, wetsuits, orthopedic braces.
2-stitch and 3-stitch types are good for reinforcing stitches on heavier materials.
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2800 |
| Stitch Length | 5mm |
| Lubrication | Semi-Automatic |
| Presser Foot Lift | 5mm |
| Cylinder Diameter | 55mm |
| Cylinder Bed Length | 225mm |
| Zig-Zag Stitch Width | 10mm |
| Sewing Type | Single Needle, Lockstitch Zig-Zag |
