Consew 347R-1A-1WS

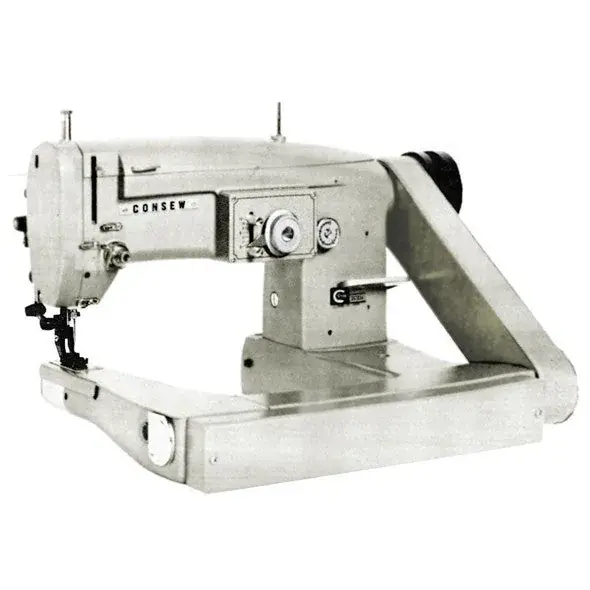

The Consew 347R-1A-1WS is a specialized feed-off-the-arm zig-zag machine designed for precision work on tubular and stretchable materials.
Product features
The Consew 347R-1A-1WS is a specialized feed-off-the-arm zig-zag machine designed for precision work on tubular and stretchable materials. Its cylindrical arm allows for effortless handling of hard-to-reach or circular pieces, while the combination of upper and lower feed mechanisms ensures smooth fabric control, preventing puckering and slippage.
Applications
Sewing wetsuits and other stretchable materials such as rubber-coated cloth, vinyl, elastic, and orthopedic braces
Suitable for any tubular pieces
2-stitch and 3-stitch types are good for reinforcing stitches on heavier materials
Features
Cylindrical arm for sewing tubular pieces
Upper and lower feed mechanism to avoid puckering and material slippage
Good for any stretchable material
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2800 |
| Stitch Length | 5mm |
| Lubrication | Semi-Automatic |
| Presser Lift | 5mm |
| Cylinder Diameter | 55mm |
| Cylinder Bed Length | 225mm |
| Zig-Zag Stitch Width | 10mm |
| Sewing Type | Single Needle Lockstitch Zig-Zag |
