Consew

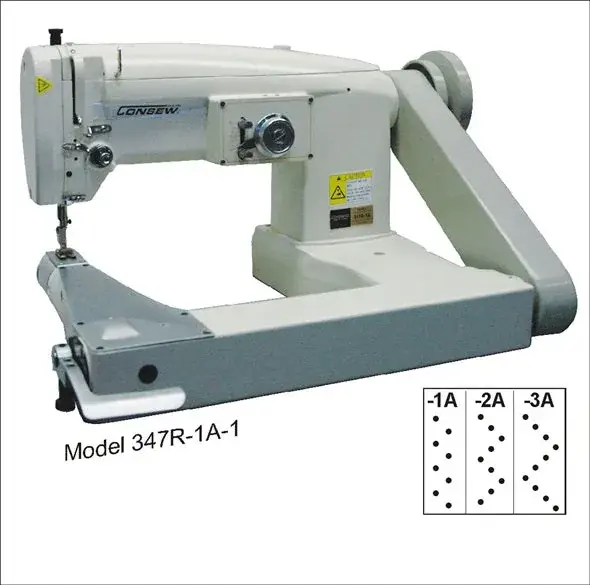

Consew 347R-3A-1
Single Needle, Drop Feed, Feed-Off-The-Arm, Cylinder Bed, Zig-Zag Machine
Product features
Single Needle, Drop Feed, Feed-Off-The-Arm, Cylinder Bed, Zig-Zag Machine
With: 3 Stitch Zig-Zag, Cylinder Bed, Feed-Off-The-Arm, Horizontal Axis Transverse Rotary Hook, 3000 s.p.m. max, Reverse Feed
Applications
Sewing light to medium weight materials including leather, vinyl, canvas, and laminated and coated materials
Designed for stitching on cylindrical objects and closing various apparel or accessory articles
Can also be used for decorative stitching
Suitable for stitching products such as wet suits, tarpaulins, sails, shoes, boots, and mops
Features
3 stitch zig-zag
Cylinder bed
Feed-off-the-arm
Horizontal axis transverse rotary hook
Maximum speed of 3000 s.p.m.
Reverse feed
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 3000 |
| Clearance Under Presser Foot | 15/64" (6mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Needle | 135 x 5 |
| Bobbin | Metal B54, Pre-wound F |
| Stitch Type | 304 |
| Needle Bar Stroke | 1 19/64" (33mm) |
| Hook | B49 |
| Stitch Width, Max | 3/8" (8mm) |
| Cylinder Diameter | 2 3/16" (55mm) |
Catalogue
The Consew 347R-3A-1 documents Consew publishes, on their own site. They open in a new tab.
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
