Dürkopp Adler
195
The versatillity double chainstitch machine for medium heavy duty applications
Product features
Individual configurable to your application
The 195 flat bed chainstitch machine is equipped with bottom feed and differential alternating top feed, which allows smooth sewing results without material shifting even in critical materials.
The machine class 195 is available as 1-, 2- and 3- needle machine. Through the use of different sewing equipments and optional equipments the machine is well-prepared for your application.
Your benefits at a glance
Safe stitch formation due to automatic adaption of the looper thread supply to the stitch length
Smooth sewing results without material shifting even in critical materials through independent adjustment of top and bottom feed
Firm stitch tightening during corner sewing due to closed thread tension during intermediate sewing feet lift
High material throughput due to high sewing speed and long stitch lenght. Thanks to the chainstich technologie there is no bobbin change required
Reduction of handling times by means of thread trimmer, automatic stitch condensing and sewing foot lift
Examples of use

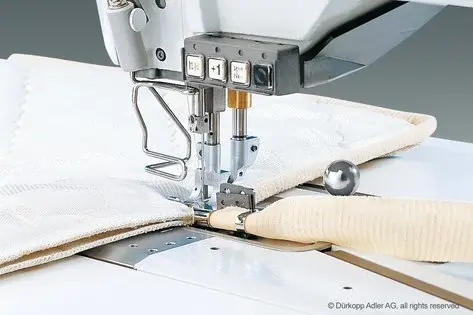

Binding of mattress covers

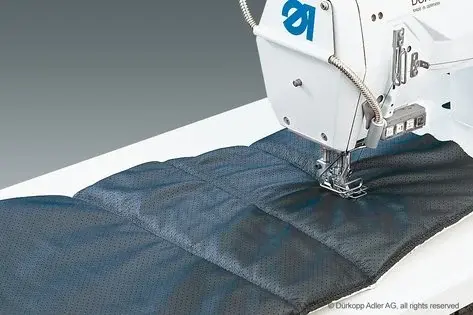

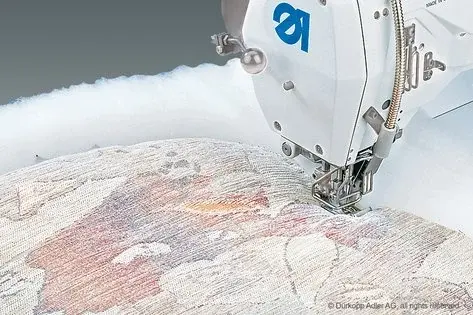

Stitching through of seat plates with fullness

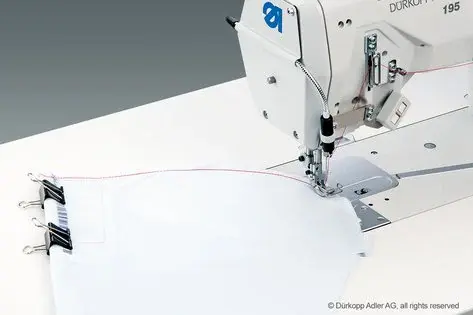

Peparatory operations
Smooth, distortion-free seams in airbag fabric

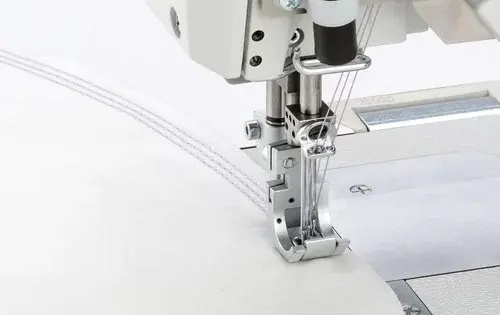

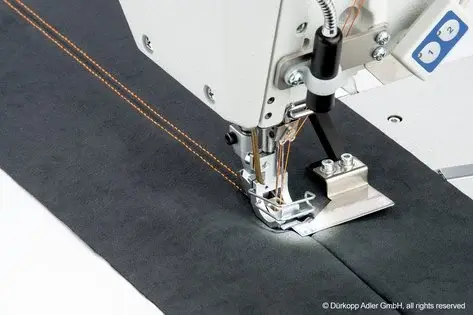

Twin- and Triple needle application in airbag fabric
Topstitching of semi-finished/prefabricated interior fabric
Specifications
| Model | 195-171120-01 | 195-171521-01 | 195-671120-01 |
|---|---|---|---|
| Air requirement per stroke / Air pressure [NL] [bar] | 0,5 / 6 | 0,5 / 6 | 0,5 / 6 |
| Bottom feed and differential, alternating foot top feed | ● | ● | ● |
| Clearance when Sewing/Lifting A = Sewing [mm] max. B = Lifting [mm] max. | A= 10 / B= 17 | A= 10 / B= 17 | A= 10 / B= 17 |
| Dimensions (Length, Width, Height) [mm] | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 |
| Double chainstitch (401) | ● | ● | ● |
| Edge trimmer | – | – | ● |
| Flat bed machine with clearance C [mm] D [mm] | 281 / 136 | 281 / 136 | 281 / 136 |
| Foot stroke adjustuble by dial | ● | ● | ● |
| Foot stroke adjustuble by dial with simultaneous automatic speed limitation | ● | ● | ● |
| Fullness above, flat sewing, fullness below | ● | ● | ● |
| Hook knife | ● | ● | ● |
| Looper (crossline) | ● | ● | ● |
| Needle size [Nm] max. | 90-160 | 90-160 | 90-160 |
| Needle system [Nm max.] * depending on the sewing equipment | 933 | 933 | 933 |
| Nominal voltage [V], [Hz] | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz |
| Program control, operating panel OP1000 | ● | ● | ● |
| Rated power [W] max. | 375 | 375 | 375 |
| Sewing Material SL = very light / L= light / LM = light to medium heavy / M= medium heavy / MS = medium heavy to heavy / S = heavy | M | M | M |
| Single needle | ● | ● | ● |
| Stitch condensinging and sewing foot lift, pedal controlled | ● | ● | ● |
| Stitch length [mm] max. | 2,5 - 8 | 2,5 - 8 | 2,5 - 8 |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 4.000* | 4.000 | 3.500 |
| Stroke of the alternating sewing feet [mm] max. | 2-7 | 2-7 | 2-7 |
| Synthetic [Tkt.] max. * = Max. thread size upper thread: Tkt. 10/3, max. thread size Unterfaden: Tkt. 20/3 ** = Max. thread size upper thread: Tkt. 15/3; max. thread size Unterfaden: Tkt. 40/3 | 20 / 3 - 25 / 3 | 20 / 3 - 25 / 3 | 20 / 3 - 25 / 3 |
| Thread trimmer | – | ● | – |
| Twin or three needles, Sewing distance [mm] max. | ○ 3,2-6,0 | – | – |
| Weight, sewing head [kg] | 52 | 52 | 52 |
● Standard ○ Optional
Catalogue
The 195 documents Dürkopp Adler publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Dürkopp Adler publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Dürkopp Adler.
