Dürkopp Adler
5625
Single-needle double-chainstitch sewing head for the use on TAPE EDGE sewing units
Product features
Extremely reliable and powerful machine head
The 5625 series is specially designed to meet the requirements of mattress production and impresses with its powerful bottom feed and alternating top and needle feed as well as precise INLINE hook system for perfect stitches, even with thick, multi-layer materials. Low-maintenance roller bearings, reliable fresh-oil lubrication system, and tool-free front cover access ensure a smooth operation process. The special cylinder-arm in a shortened form is ideal for use on mattress production lines. For binding work, the machine can be equipped with a binder by the customer. Whether Eco or Eco+, the 5625 series combines state-of-the-art sewing technology with maximum process reliability for fast, reliable production processes.
Your benefits at a glance
The oil distribution system is specifically designed for the angled machine mounting
Maintenance is kept to a minimum due to a reliable fresh-oil lubrication system
High traction due to unison feed (bottom feed and alternating top and needle feed)
Sewing head is weight optimized for sewing units
Easy front cover access (machine head) in seconds without tools

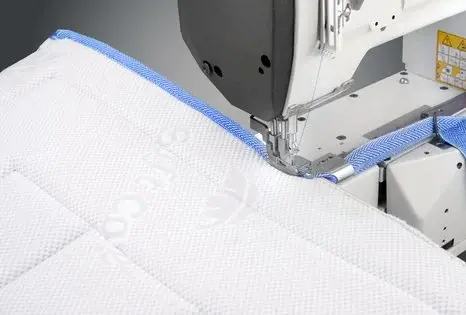

Examples of use
Specifications
| Model | 5625 ECO | 5625 ECO+ |
|---|---|---|
| Automatic presser foot lift | – | ● |
| Bottom feed, needle feed and alternating foot top feed | ● | ● |
| Clearance when lifting [mm] max. | 11 mm | 11 mm |
| Double chainstitch (401) | ● | ● |
| Easy front cover access (machine head) | ● | ● |
| Looper (in-line) | ● | ● |
| Needle size [Nm] max. | 110 - 180 | 110 - 180 |
| Needle system [Nm max.] * depending on the sewing equipment | SY 4112 | SY 4112 |
| Nominal voltage [V], [Hz] | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz |
| Pneumatic thread tension release | – | ● |
| Stitch length [mm] max. | 8,5 mm | 8,5 mm |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 3.500 | 3.500 |
● Standard ○ Optional
Catalogue
The 5625 documents Dürkopp Adler publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Dürkopp Adler publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Dürkopp Adler.
