Merrow
70-D3B-2 RAIL
Butted seam sewing machine for railways
Product features
The Merrow 70-D3B-2 RAIL is a requirement for any automated processing facility. Designed to be mounted on a railway sewing system the 70-D3B-2 RAIL is the most reliable means of joining wide material when straight and square seams are essential.
The 70-D3B-2 RAIL is an end-to-end seaming sewing machine from Merrow, specially built for the continuous processing of fabric on semi-automated, or fully-automated equipment.
The Merrow Rail sewing head will fit all European and American made Sewing Railways

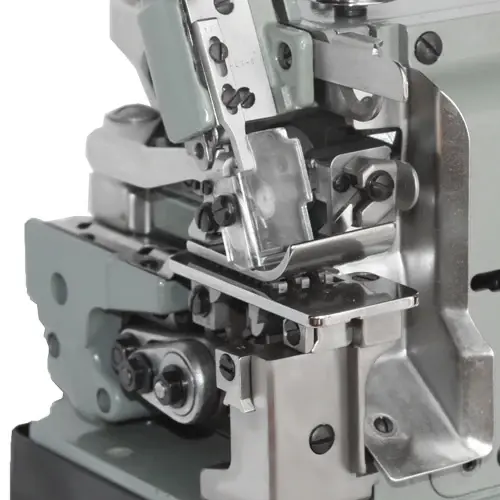

The Merrow Model 70-D3B-2 RAIL industrial sewing machine is derived from the industry standard Merrow 70-D3B-2 sewing machine for the endwise joining of piece goods. The 70-D3B-2 RAIL is a single thread machine with cutters that is produces a strong, flat, 5/8” stitch on a wide range of fabric.
WHY it's better
Railway operations create straighter more consistent seams across wide fabrics. The Merrow 70-D3B-2 RAIL when paired with a American or European Railway reduces spare parts consumption (fewer broken needles, needle carriers) and improves the quality of the seaming process.
HOW it's better
The Merrow 70-D3B-2 RAIL has an Adapted Design for pro-active feeding..the Merrow RAIL sewing head is designed to be pushed across the fabric by the railway (as opposed to pulling the fabric through on its own feed system).
WHERE it's used
the 70-D3B-2 RAIL is only used on railways, and the combined unit is often used in the following processes: Continuous Bleaching, Mercerising, Scouring, Washing, Drying, Pad & Steam Dyeing, Printing, Steaming, Shrinking (Sanforizing), Finishing, Tubular Processing, Slitting & De-twisting, Heat Setting, Napping & Shearing, Singeing, Calendering
The 70-D3B-2 RAIL is one of more than 350 variations of the Merrow 70-D3B-2
Railways do not come with the 70-D3B-2 RAIL and require additional investment.
Applications
Automated Butted Seam for Vinyl Leather

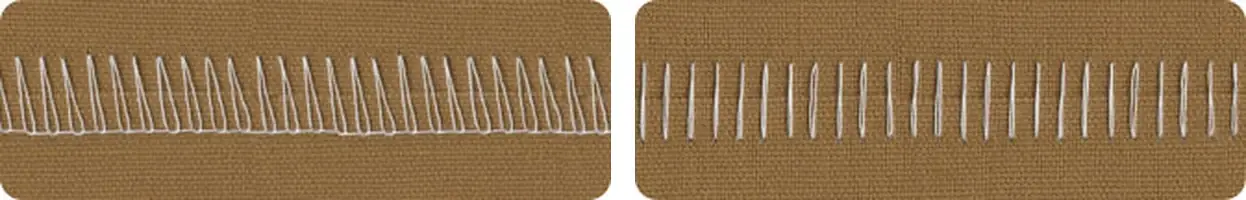

Stitch samples
Specifications
| Operating speed | 2250 RPM |
|---|---|
| Stitch width | 16MM (5/8") |
| Stitch range | 101MM - 305MM (4-12 SPI) |
| Standard needle | MERROW 8SDT |
| Merrow needle range | MERROW 3SDT - 8SDT |
| Federal stitch type | 501 |
| Motor required | RAILWAY DRIVEN |
| Number of threads | SINGLE THREAD |
Videos
Catalogue
The 70-D3B-2 RAIL documents Merrow publishes, on their own site. They open in a new tab.
Open the catalogue · 70-D3B-2 RAIL Line Card (PDF)Open the instruction manual · Setting Up and Operating Instructions, Class 70 (PDF)
And the catalogues Merrow publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Merrow.
