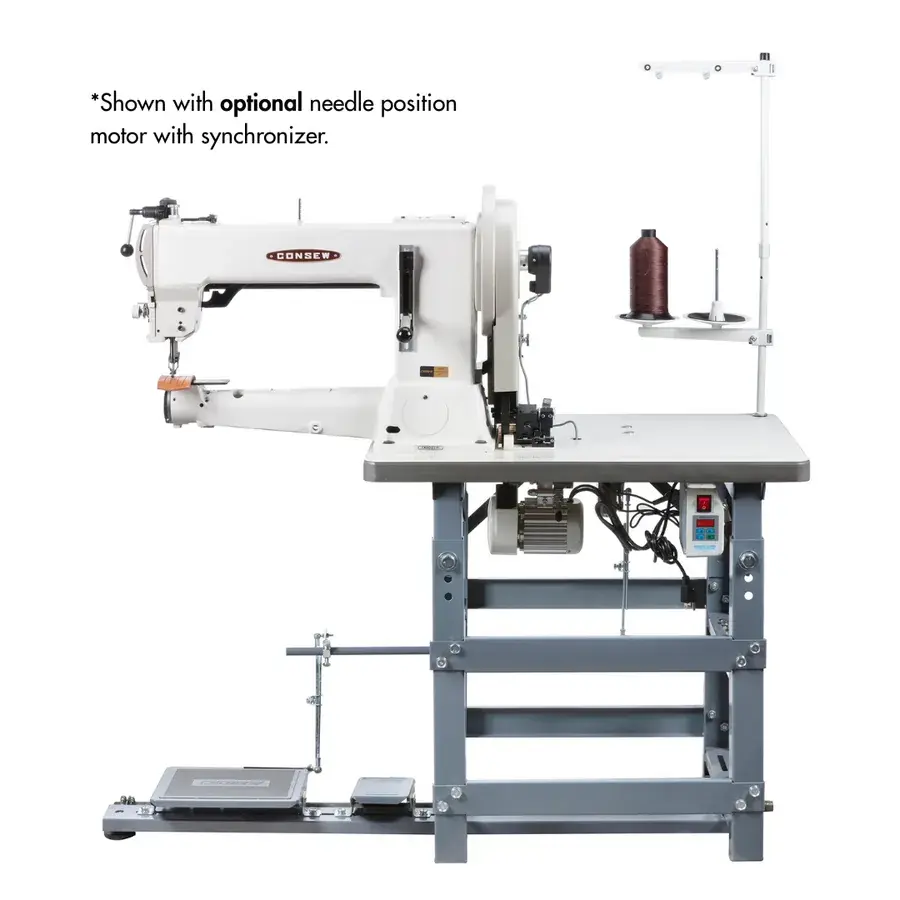

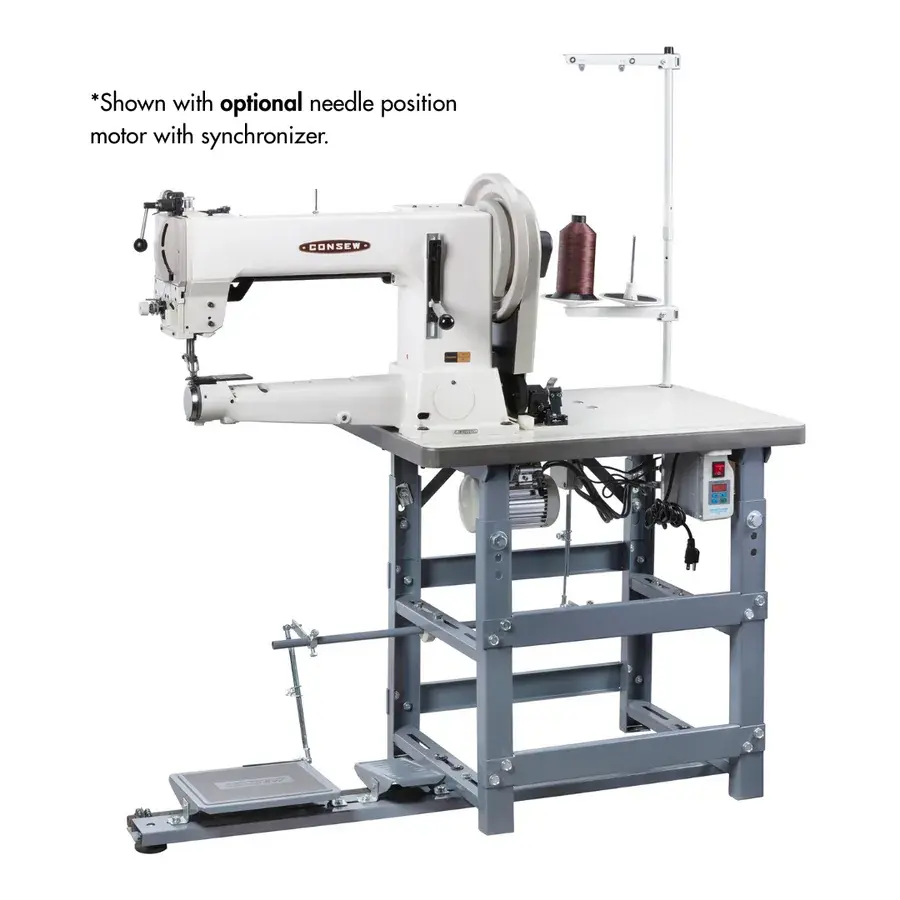

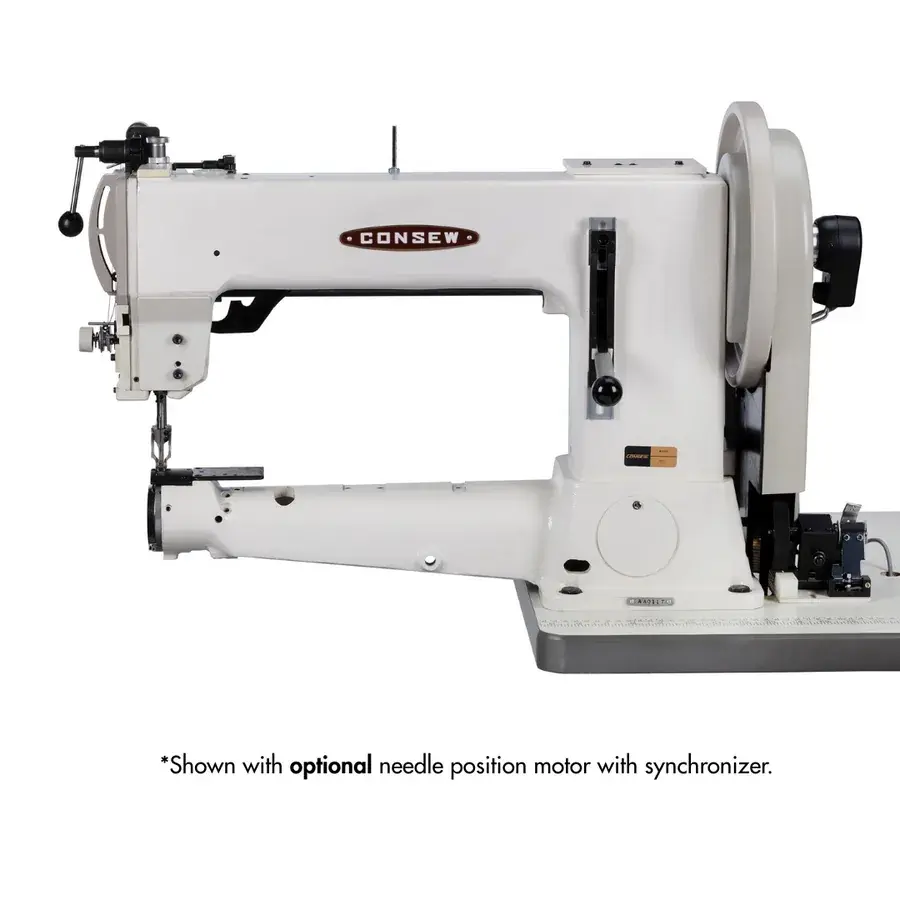

Consew 2050
Extra Heavy Duty, Cylinder Bed, Long Arm, Single Needle, Compound Feed, Alternating Presser Feet, Lockstitch Machine
Product features
1 / 8
Extra Heavy Duty, Cylinder Bed, Long Arm, Single Needle, Compound Feed, Alternating Presser Feet, Lockstitch Machine
With: Large Shuttle Hook and Bobbin, Walking Feet
Applications
For stitching extra heavy-weight materials such as bag and suitcase handles, seat cushions, safety belts, cargo slings, tarpaulins, and parachutes
Designed for thick seams, horse saddles, harnesses, boot stitching, book binding, and more
Extended workspace for large materials and heavy-duty operations
Ideal for industrial bags, fabric structures, construction barriers, and more
Features
Synchronized upper and lower feeding mechanism for uniform stitching

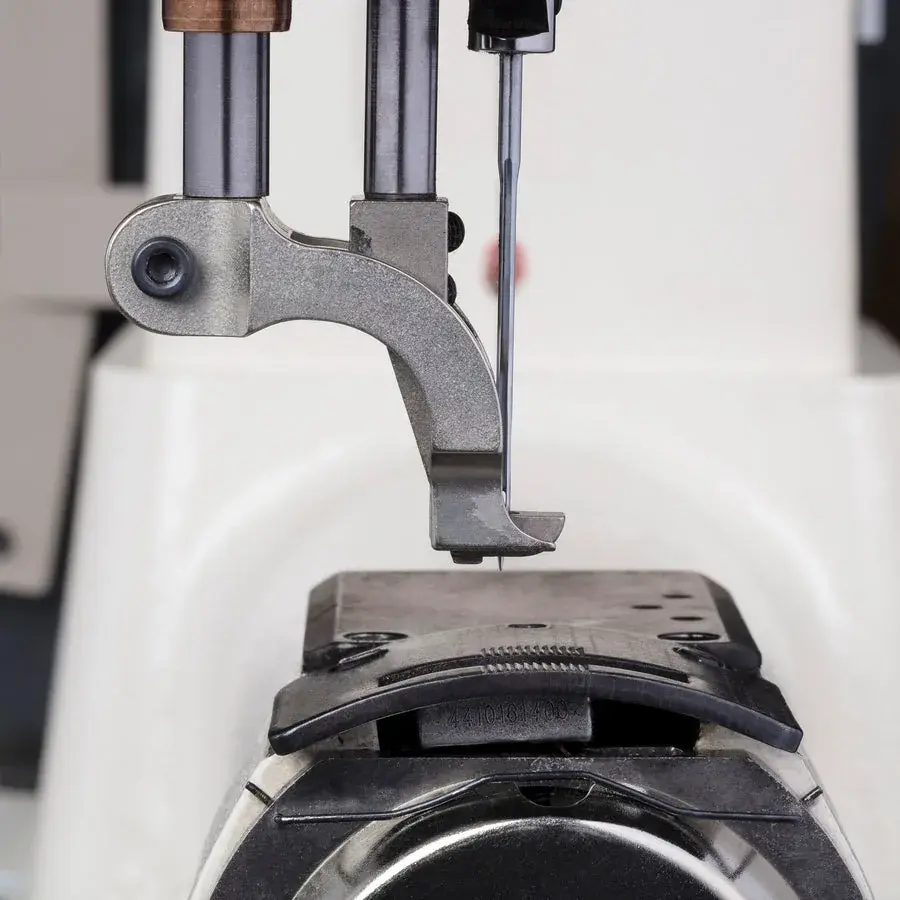

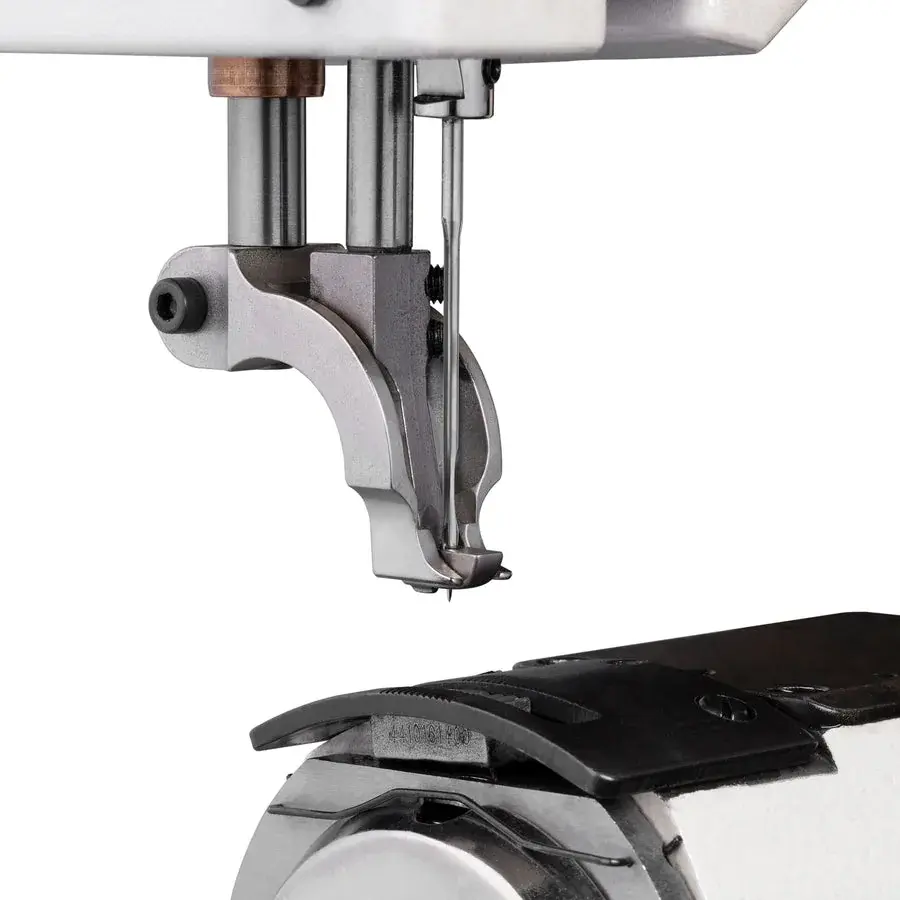

Alternating presser feet (walking feet)
13/16" (20mm) presser foot lift, hand or foot operated
Two-row feeder
2½ stitches per inch
Stitches up to 800 per minute
16 1/2" work area
Belt guard
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 800 |
| Clearance Under Presser Foot | 13/16" (20mm) |
| Stitch Length | 2 1/2 s.p.i. (10mm) |
| Work Space | 16 1/2" (420mm) |
| Needle | DYx3 #25 (#25-#28) |
| Bed Size | 3 11/16" (95mm) |
| Stitch Type | 301 |
| Weight | 278 lbs. (126kg) |
| Needle Bar Stroke | 2 3/16" (56mm) |
Catalogue
The Consew 2050 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
