Consew

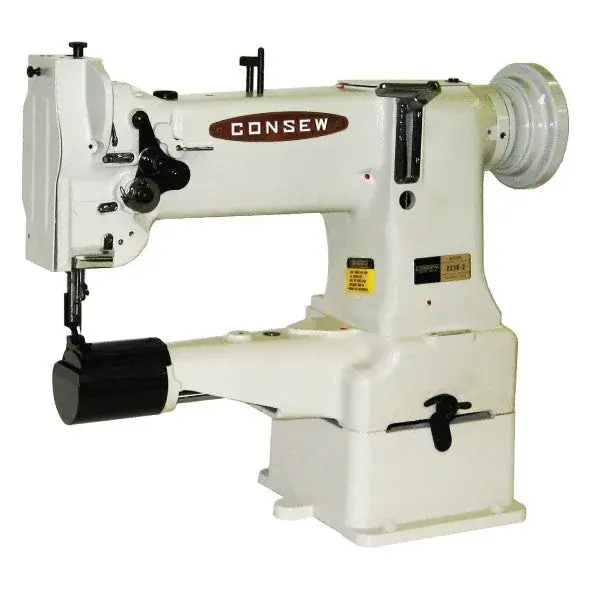

Consew 223R-2
High Speed, Cylinder Arm, Single Needle, Drop Feed Needle Feed, Lockstich Machine
Product features
High Speed, Cylinder Arm, Single Needle, Drop Feed Needle Feed, Lockstich Machine
With: Vertical Axis Rotary Hook, High Lift, Reverse Feed, Safety Clutch
Applications
For sewing medium to medium-heavy weight fabrics, leather, canvas, vinyl, synthetics, and various laminated and coated materials
Designed for stitching tubular and curved work
Suitable for sewing products such as caps, cushions, boots, shoes, auto, boat, and furniture upholstery, boat covers, sails, awnings, tents, light tarpaulins, camping equipment, luggage, travelware accessories, wearing apparel, coats, etc.
Features
High lift
Vertical axis rotary hook
Cylinder arm
Stitches per minute: 3000*
Reverse stitching
Safety clutch prevents hook damage
Compound feed ensures even feeding of several plies or slippery material
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Needle Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 3000 |
| Clearance Under Presser Foot | 11/32" (8.5mm) |
| Stitch Length | 5 s.p.i. (4.5mm) |
| Work Space | 10" (258mm) |
| Needle | 135 x 17 |
| Bobbin | Pre-Wound G |
| Bed Size | 2 9/16" dia x 10 9/16" (65mm dia x 268mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 1 5/16" (33mm) |
| Hook | 13086 |
Catalogue
The Consew 223R-2 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
