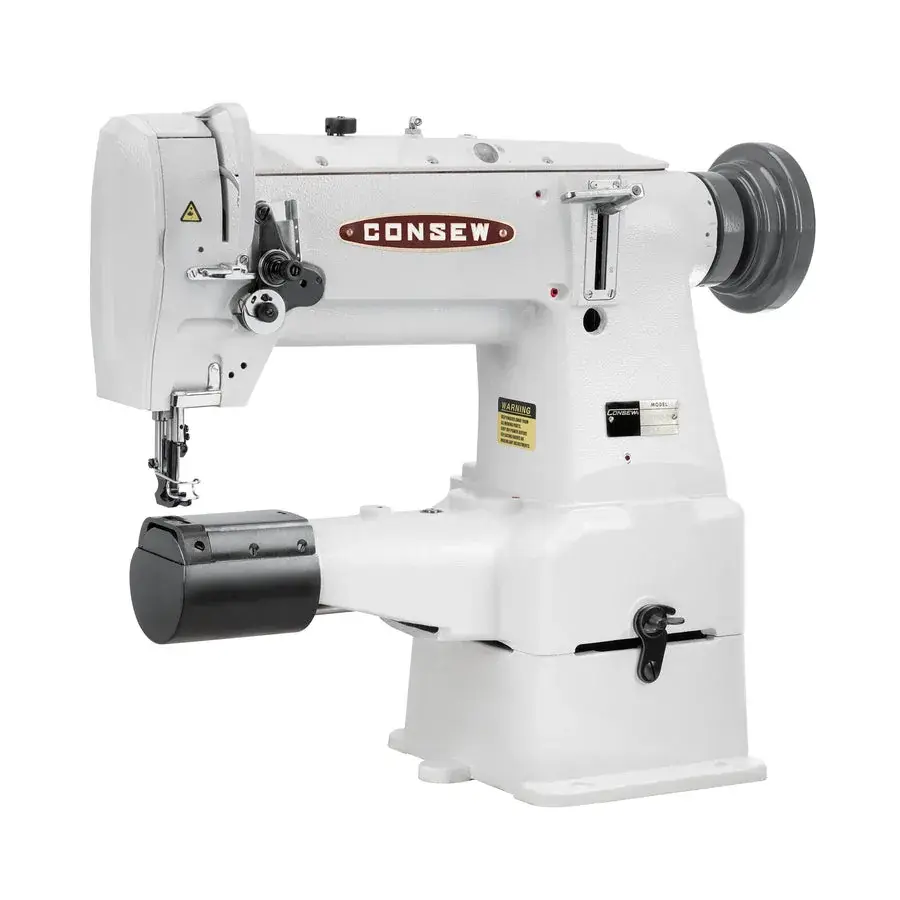

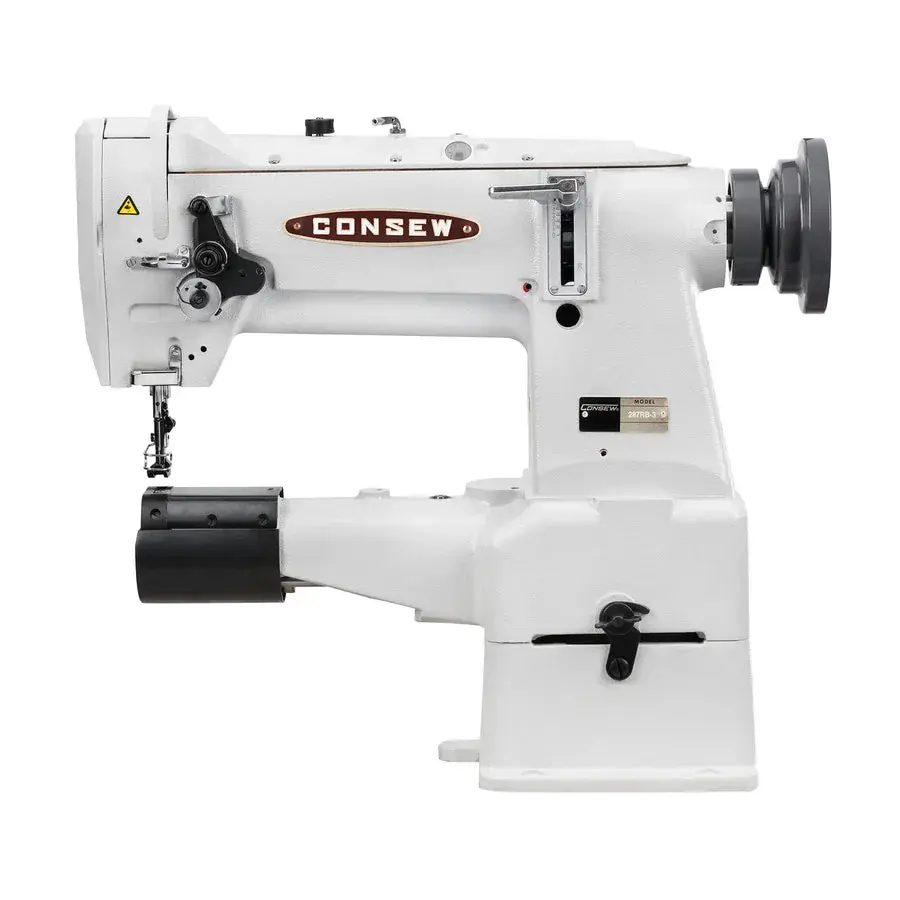

Consew 287RB-3
The Model 287RB-3 is a heavy-duty, single-needle cylinder arm lockstitch machine designed for sewing medium- to heavy-duty materials such as leather, vinyl, upholstery, canvas, and…
Product features
1 / 8

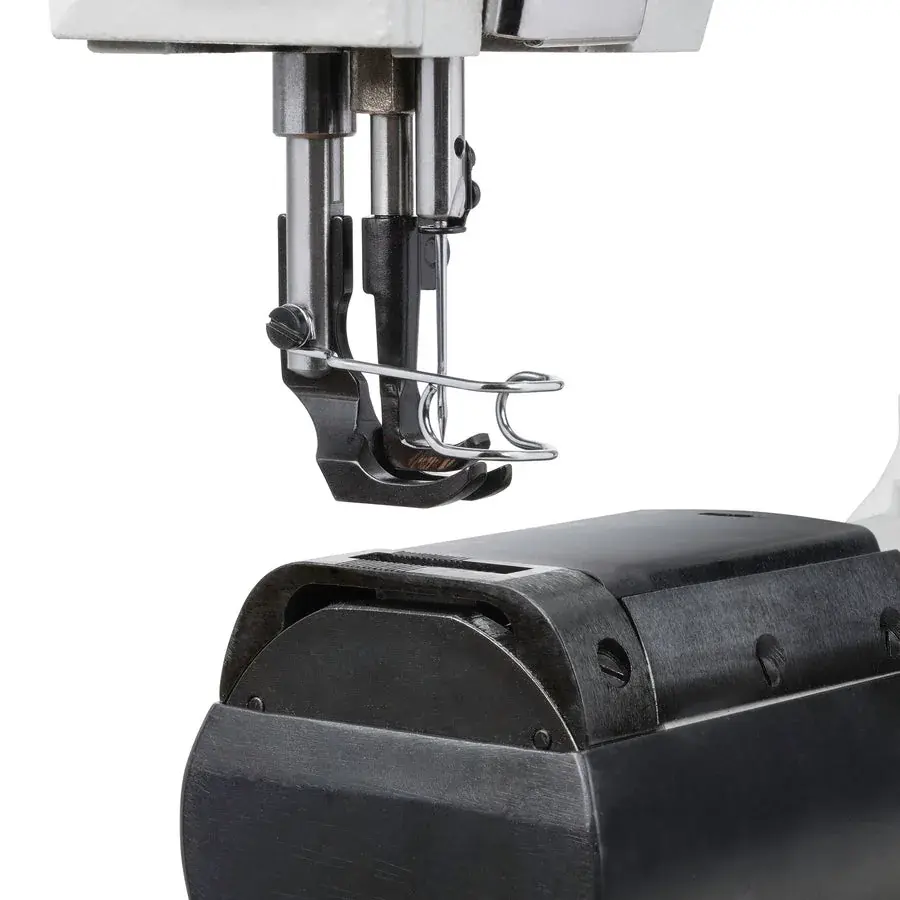

The Model 287RB-3 is a heavy-duty, single-needle cylinder arm lockstitch machine designed for sewing medium- to heavy-duty materials such as leather, vinyl, upholstery, canvas, and laminated fabrics. It features a compound feed system with walking foot and alternating presser feet to ensure consistent feeding of multiple layers or slippery materials.

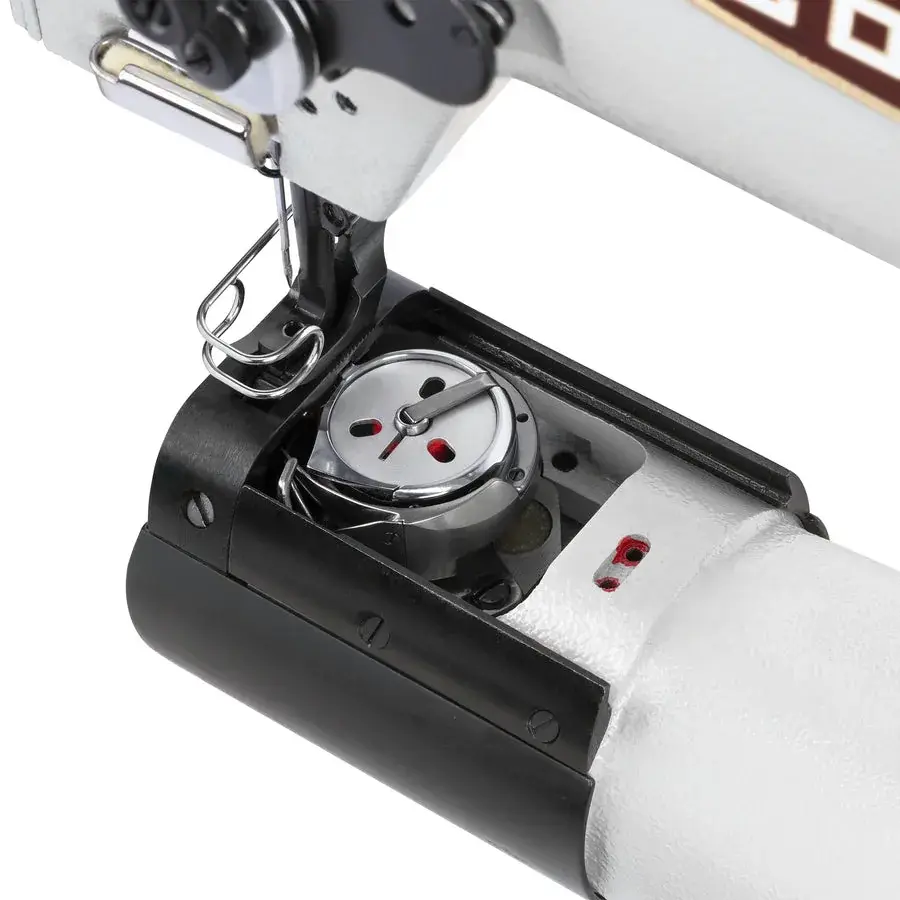

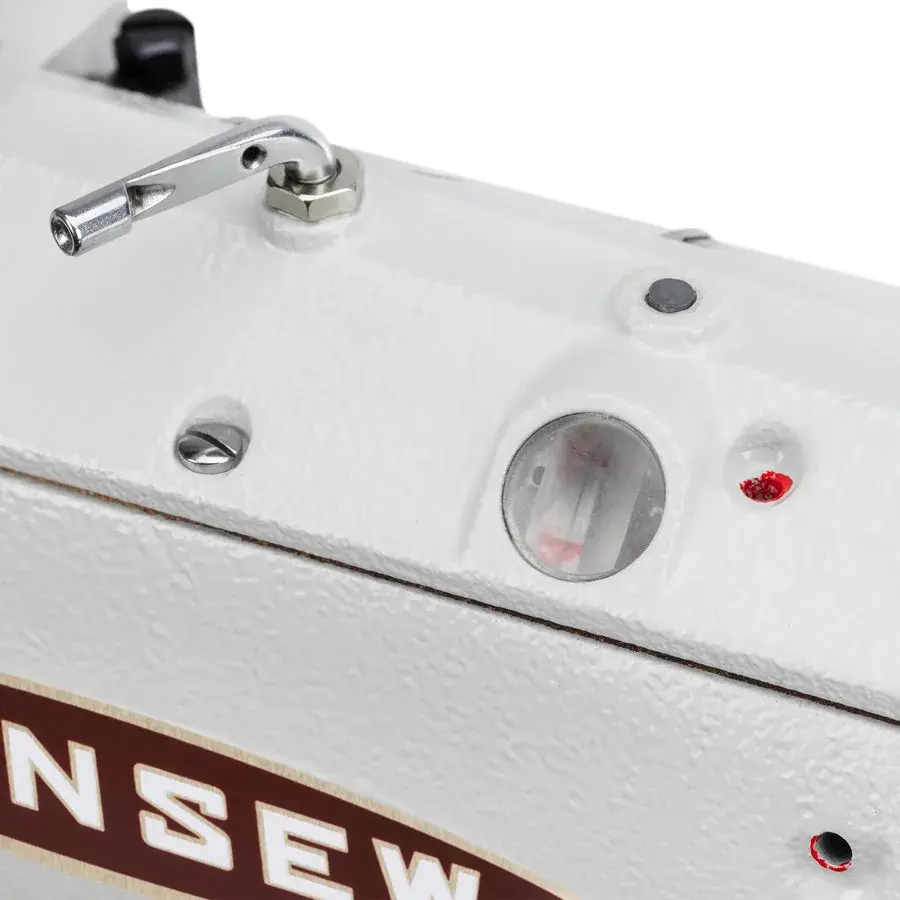

Equipped with a vertical axis rotary hook, reverse feed, safety clutch, and the Centra-Lube® semi-automatic lubrication system, it is well suited for tubular and curved sewing applications. The 287RB-3 is commonly used for products such as caps, cushions, footwear, upholstery, bags, luggage, tents, covers, and other heavy-duty sewn goods.
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2300 |
| Clearance Under Presser Foot | 11/32" (8.5mm) |
| Stitch Length | 1/4" (6.2mm) |
| Work Space | 10 5/32" (258mm) |
| Needle | 135 x 17 |
| Bobbin | Pre-Wound U |
| Bed Size | 3 7/32" dia x 10 9/16" (65mm dia x 268mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 1 5/16" (33.2mm) |
| Hook | 13086 |
