Consew 695HEX

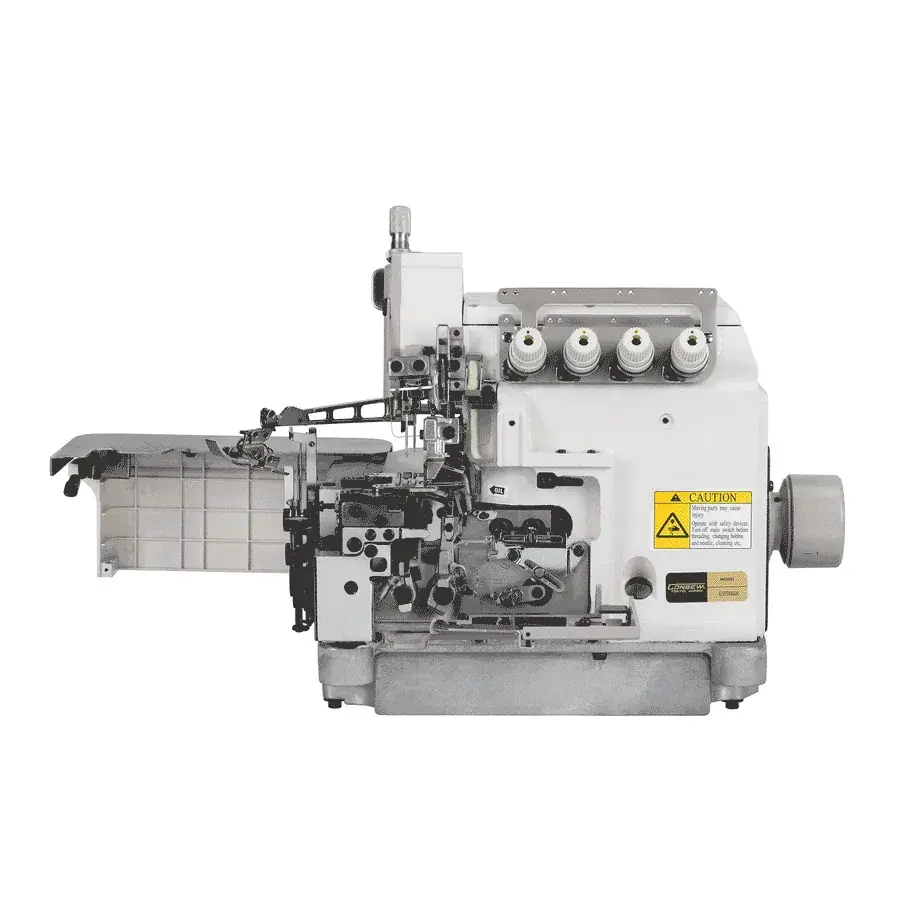

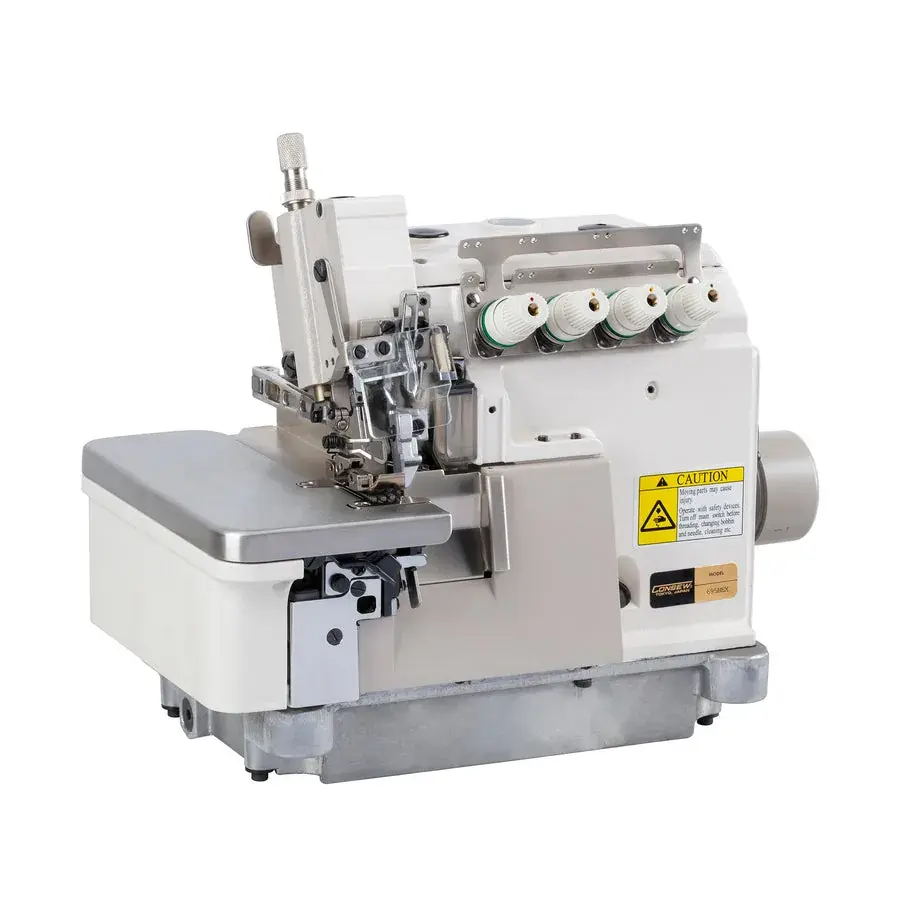

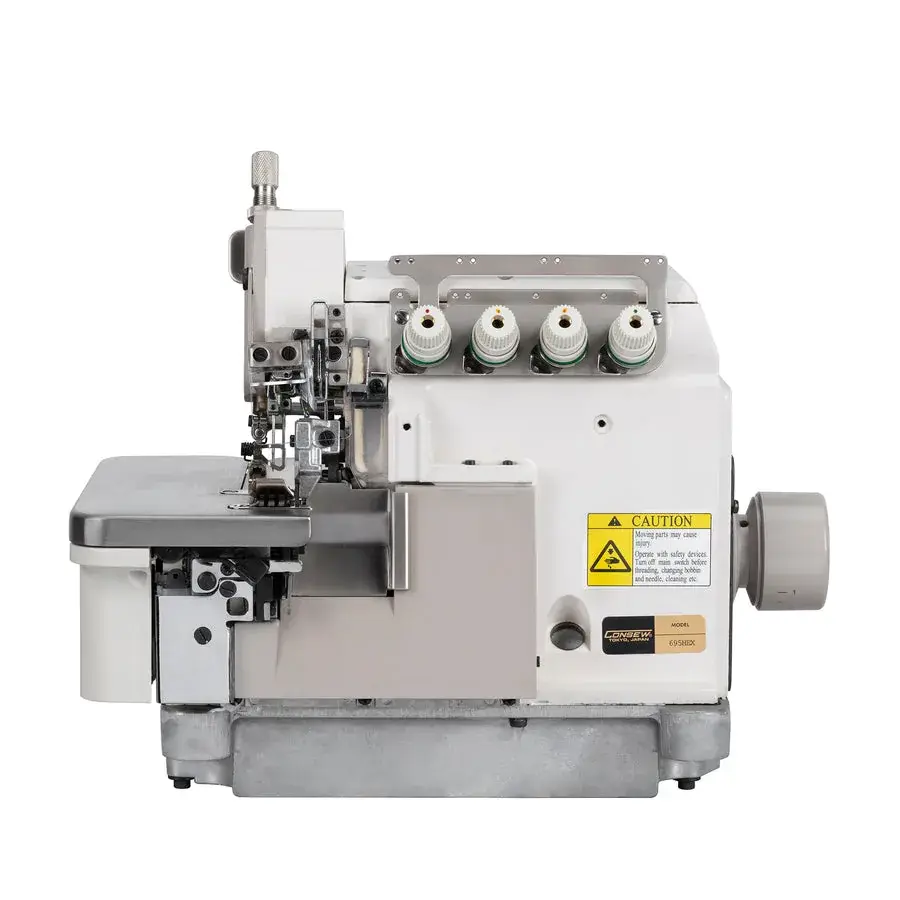

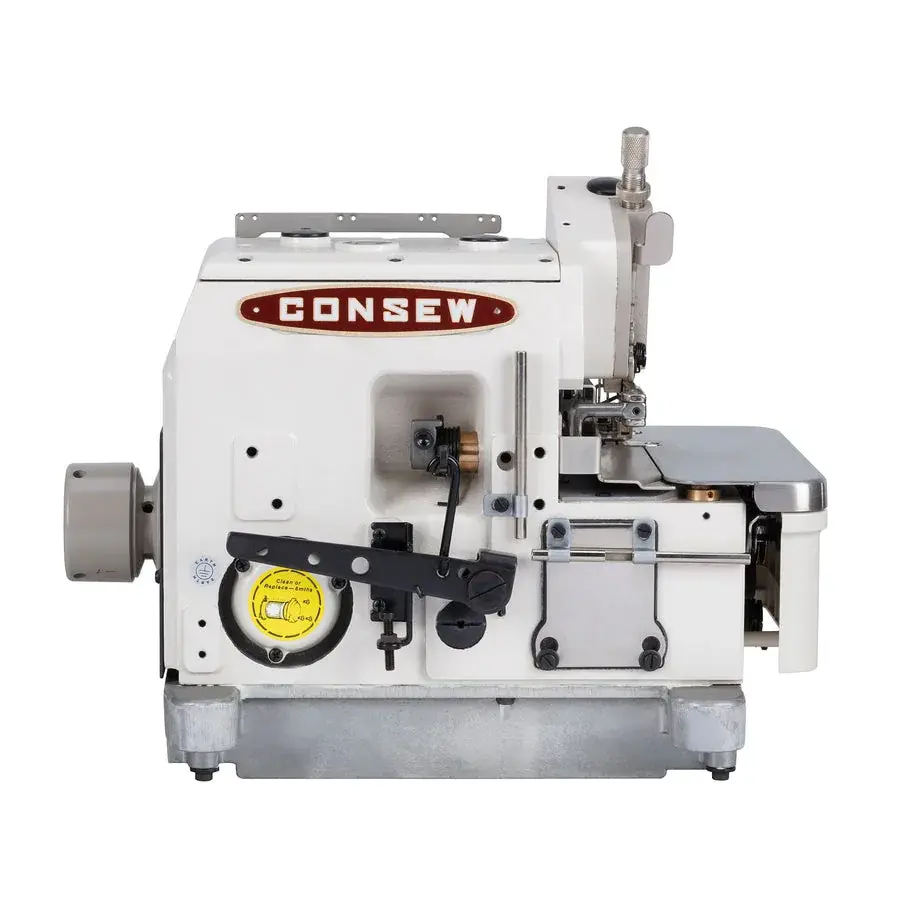

High speed overlock machine with tractor foot; extra high lift for heavy weight materials
Product features
1 / 8
High speed overlock machine with tractor foot; extra high lift for heavy weight materials
2 needles, 4/5 threads
With : Fully Automatic Lubrication, Differential Feed With Micrometric Adjustment, Pushbutton Stitch Regulator
Applications
True safety stitch suitable for sewing products such as vinyl, 12-ply, 14 oz. denim jeans, mats, carpets, auto trim, upholstery, canvas, tents, etc.
Features

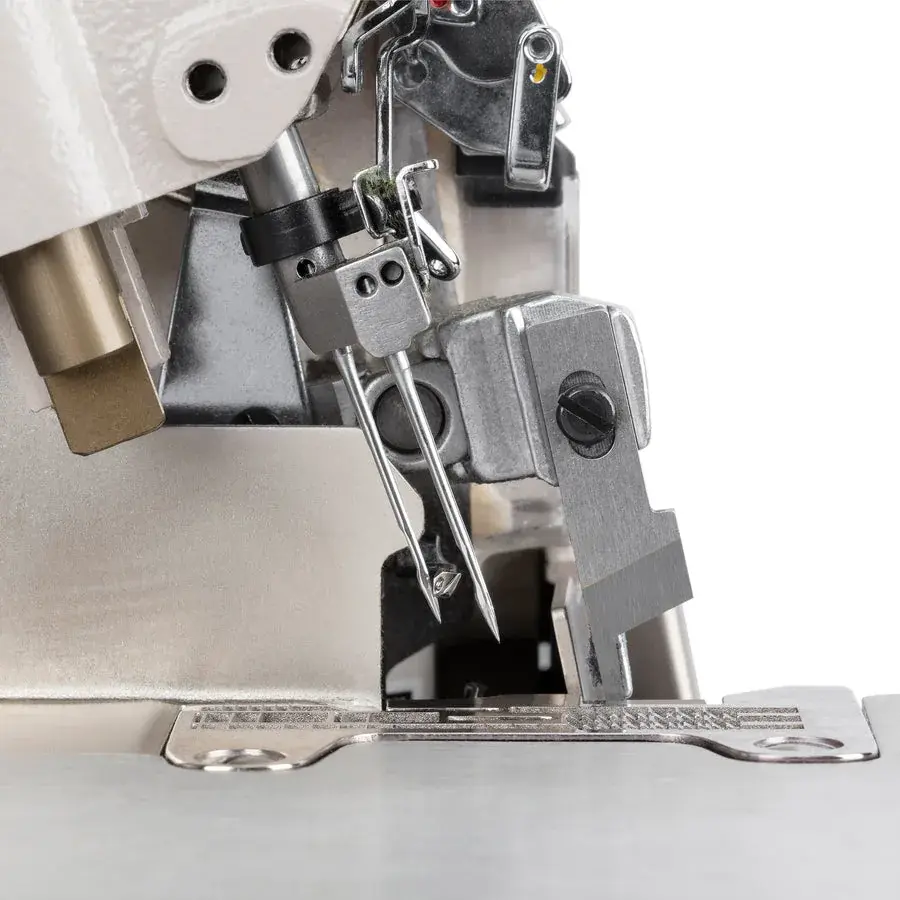

Uses an extra high-throw upper looper, tractor foot, and feed dog for sewing extra heavy-weight materials
Speed, Max. up to 6000 s.p.m. (speed depends on materials, threads, and operation)
Fully automatic lubrication with visual flow controls
Lubricating oil continuously filtered by replaceable filter
External cooling of oil supply
Differential feed with micrometric adjustment for shirring and stretching

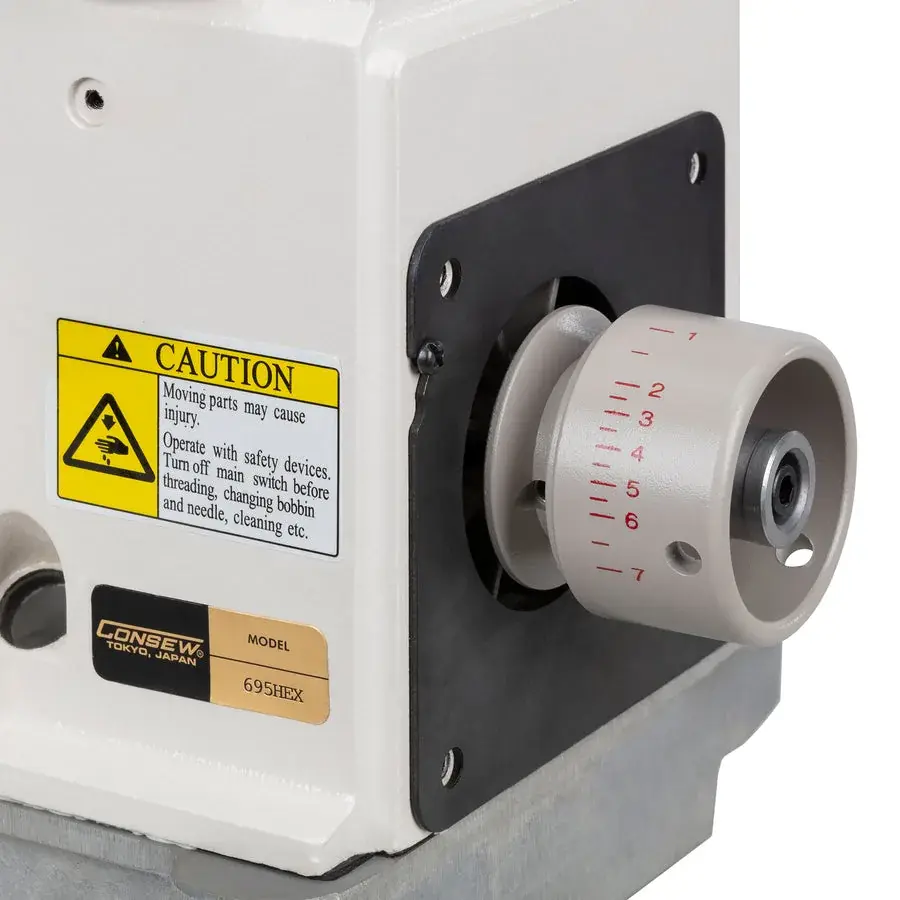

Push-button stitch regulator
Intermittent action possible
Standard type 142X 5 needles
Tractor presser foot for sewing over seams
Extra high presser foot lift
Extra long stroke of upper looper
Large, aggressive feed dogs
Specifications
| Max. Sewing Speed | 6,000 S.P.M. * |
|---|---|
| Presser Foot Lift | 7.0 mm |
| Differential Ratio | 1 : 0.8～1 : 1.5 |
| Needle Gauge (2) ** | 5 mm standard |
| Needle System | 142X5 |
| Overedging Width | 5, 6, 7 mm |
| Stitch Length, Max | 5 mm |
| Number of Threads | 2, 3, 4 or 5 |
Catalogue
The Consew 695HEX documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
