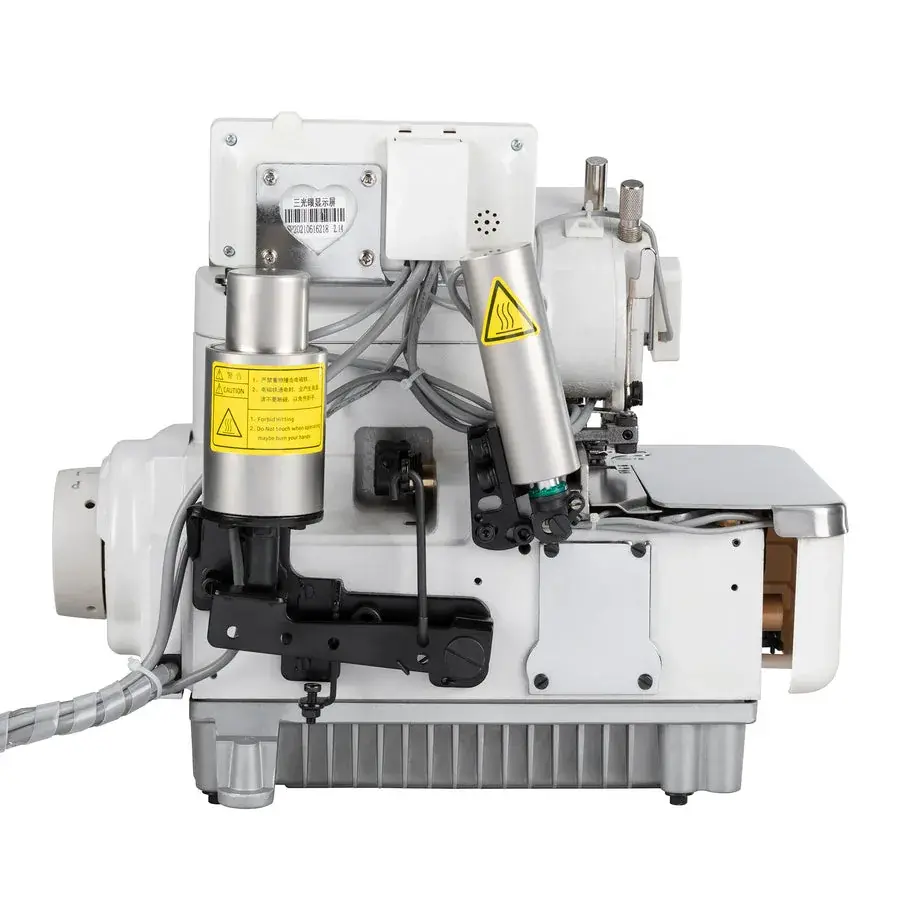

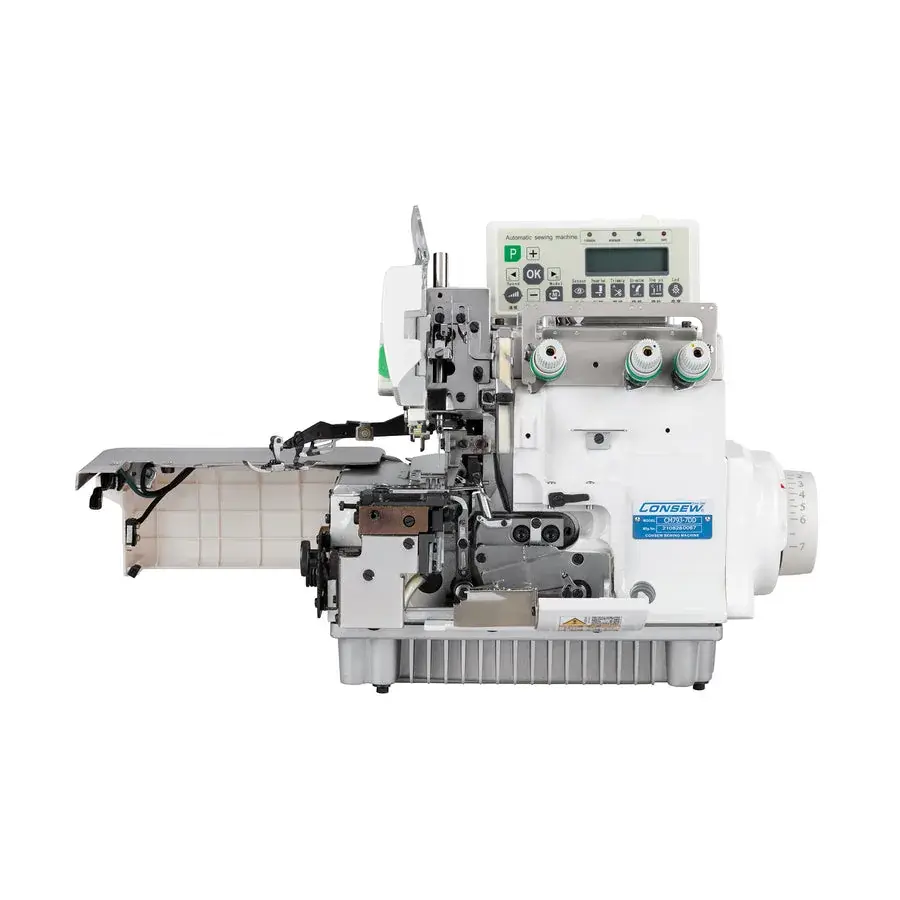

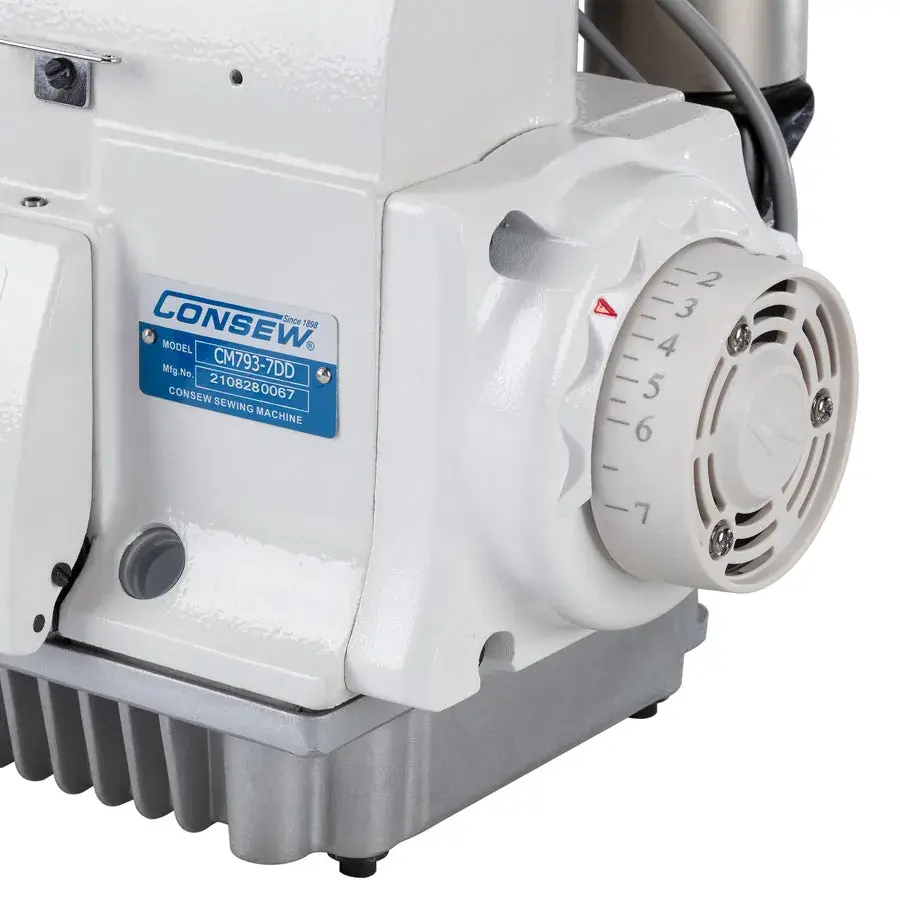

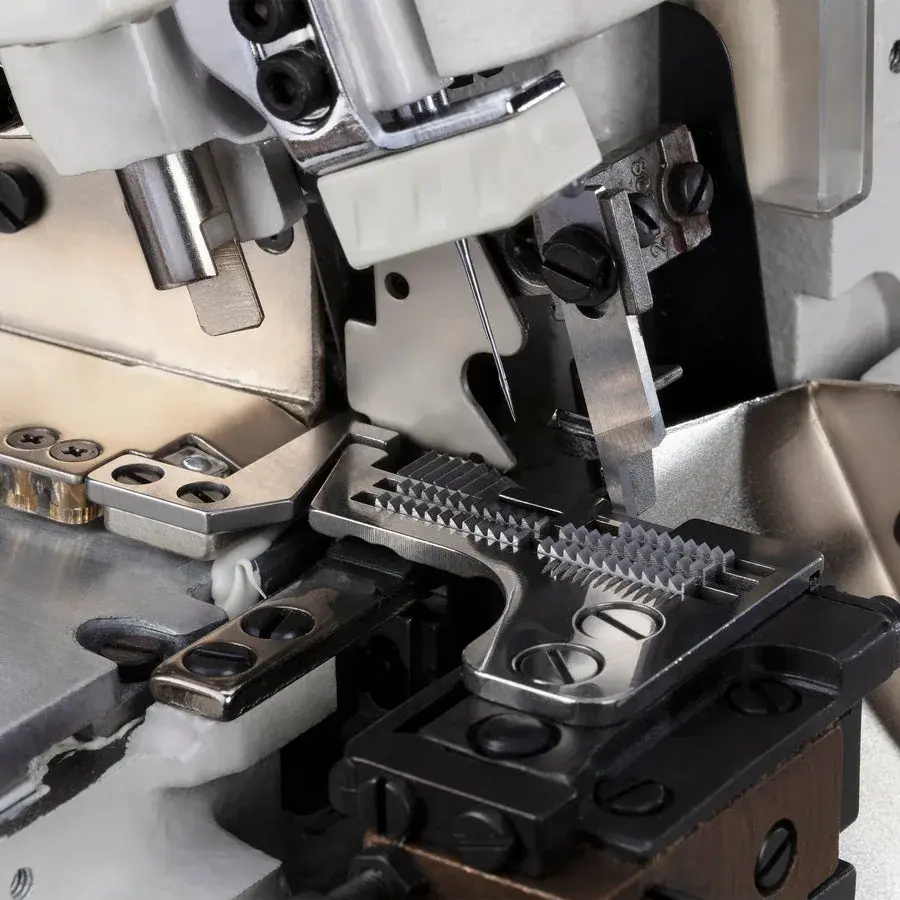

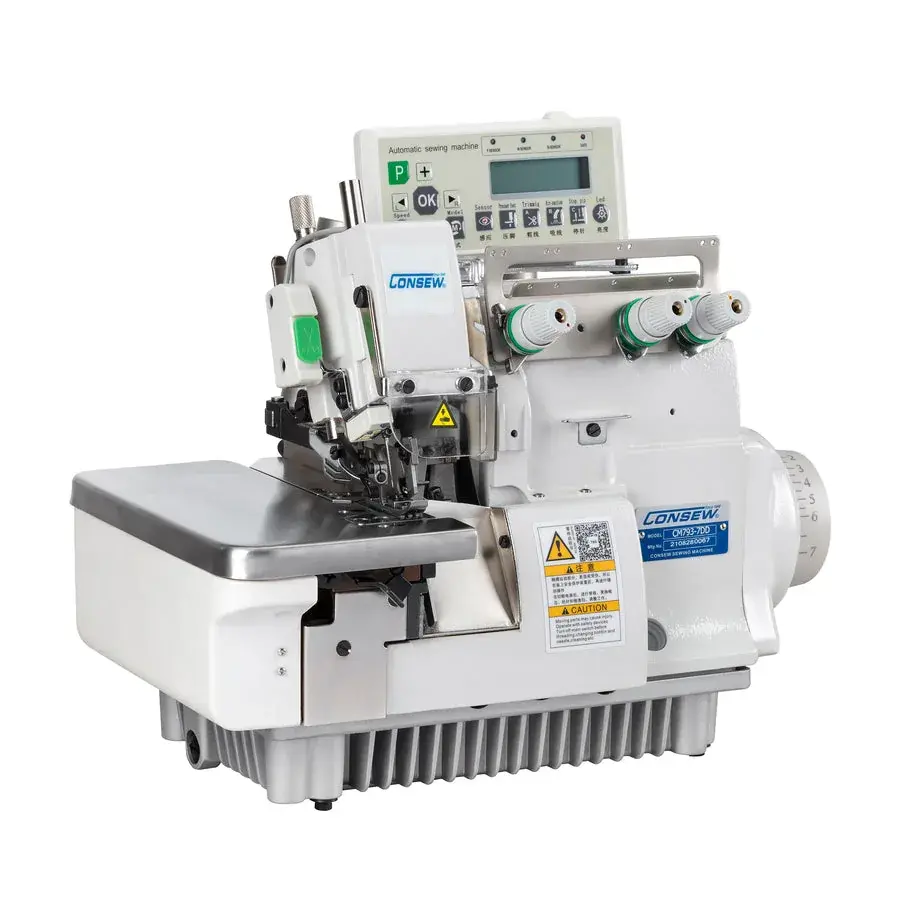

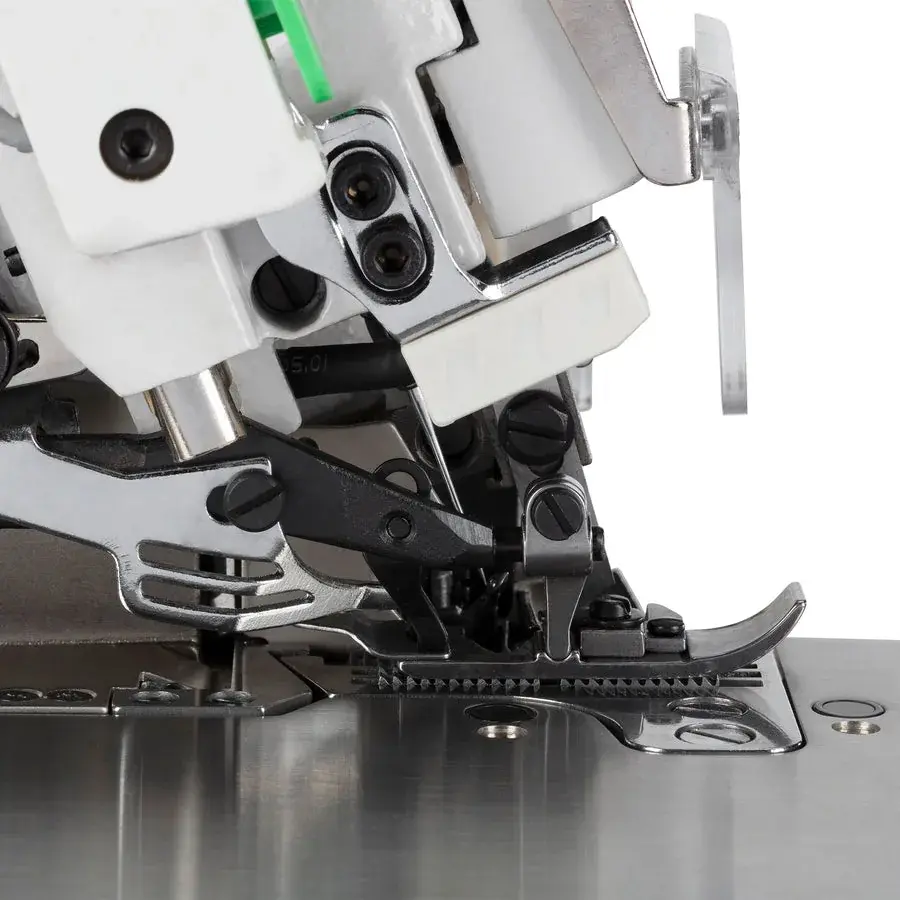

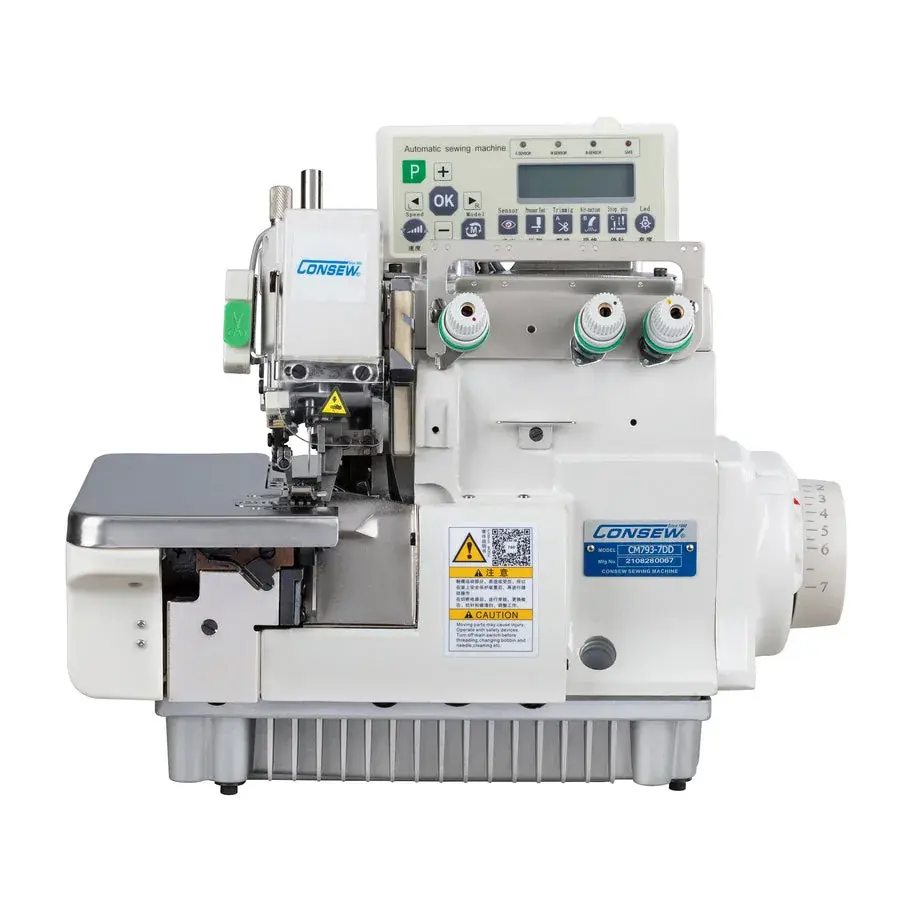

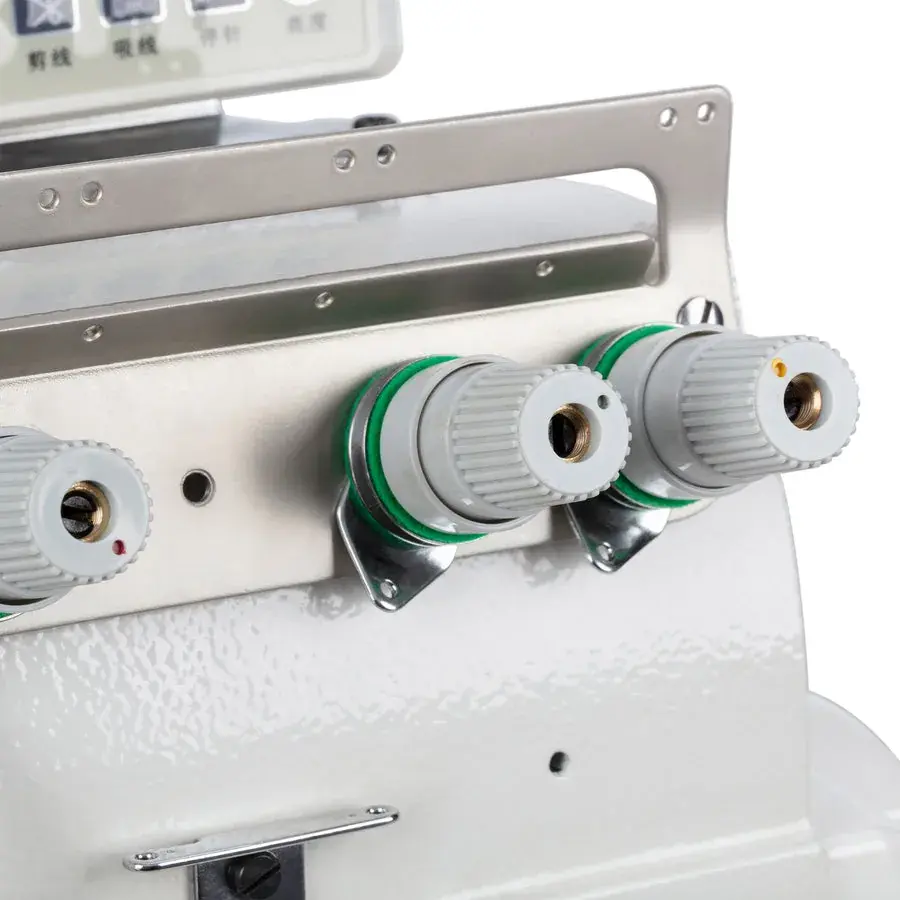

Consew CM793-⁠7DD

Single Needle, 3 Thread, High Speed Overlock Machine with Direct Drive motor.

Automatic functions with digital operating panel.

For overlock sewing of a variety of materials (knits, wovens, vinyls)

With : Fully Automatic Lubrication, Adjustable Differential Feed, Stitch Regulator, Fabric Edge Trimmer, Swing-arm Guide

(Also available: CM793-DD without Auto Functions)

Applications

• Overlock sewing of a variety of materials (knits, wovens, vinyls)

• General overedging such as hemming sleeves on men's knit underwear

• Closing shoulders for T-shirts

• Overedging net lining for tricot slips

• Closing skirt panels

• Attaching bodice and yoke for tricot slips

Features

• AUTOMATIC FUNCTIONS with DIGITAL OPERATING PANEL

• Speed, Max. up to 5500 s.p.m.

• Direct Drive: Motor inside machine - No drive belt

• Controller module fits underneath table, connects to direct drive motor and treadle

• 110 VAC plug

• Thread trimming device

• Electronic foot lift

• Auto trimming

• Needle position

• Fully automatic lubrication with visual flow indicator

• Lubricating oil continuously filtered by replaceable filter

• External cooling of oil supply

• Fabric edge trimmer

• Adjustable Differential feed

• Stitch regulator

• Standard type DC-27 needles

• Reduced noise and vibration when operating at high speeds

• Swing-arm guide
