Consew CM794-2

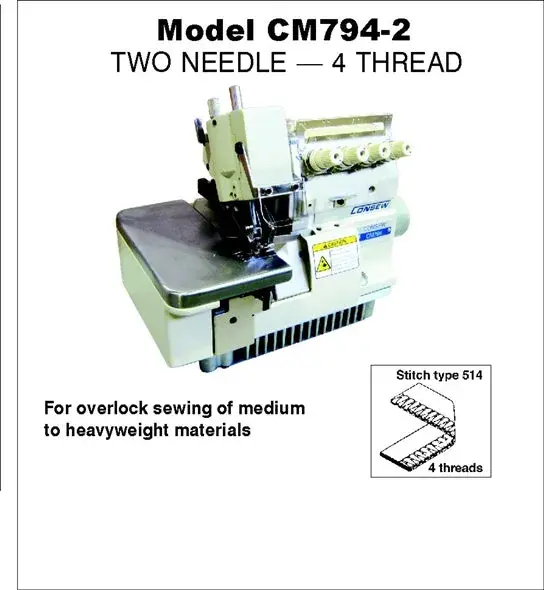

The CM794-2 is a high speed, t wo needle, 4 thread overlock machine for sewing of medium to heavyweight materials
Product features
1 / 4
The CM794-2 is a high speed, t wo needle, 4 thread overlock machine for sewing of medium to heavyweight materials
With : Fully Automatic Lubrication, Differential Feed, Pushbutton Stitch Regulator
Specifications
| Number of Needles | 2 (Double) |
|---|---|
| Feeding Mechanism | Differential |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 6500 |
| Max Stitch Length | 0.7 - 3.8 mm |
| Presser Foot Lift | 6 mm |
| Needle Used | DC x 27 size 11 |
| Overedging Stitch Width | 4 mm |
| Standard Distance Between Needles | 2 mm |
| Differential Ratio | 1:0.7 ~ 1.7 |
| Weight | 150 lbs |
| Number of Threads | 4 |
Catalogue
The Consew CM794-2 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
