Product features
1 / 8

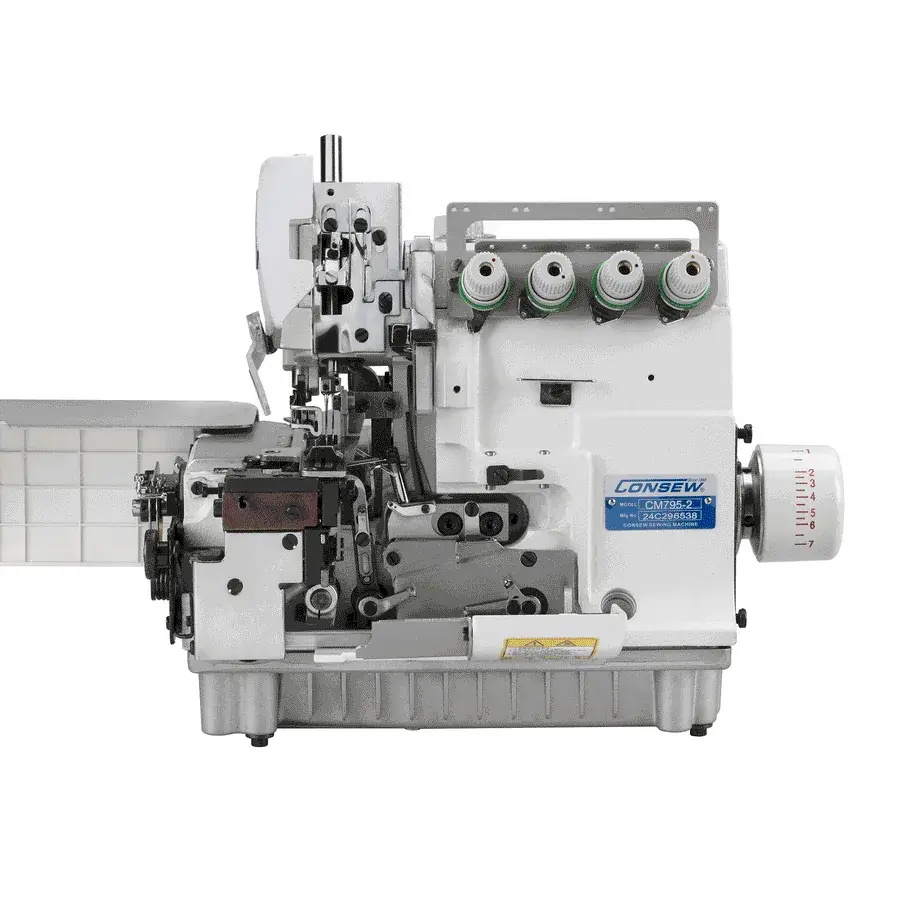

The CM795-2 is a high speed, two needle, 5 thread, overlock machine for sewing medium to heavyweight materials with a safety stitch.
With : Fully Automatic Lubrication, Differential Feed, Pushbutton Stitch Regulator.
Applications
True Safety Stitch - suitable for sewing products such as men's, ladies' and children's wear, especially coats for children and women.
Designed for general seaming on woven fabrics.
Suitable for edging vinyl, canvas, upholstery fabrics, and lightweight leather.
Can also perform the stitches that the CM793-2 can do.
Features
Speed, Max. up to 6500 s.p.m.
Fully automatic lubrication with visual flow controls.
Lubricating oil continuously filtered by replaceable filter.
External cooling of oil supply.
Differential feed.
Push-button stitch regulator.
Intermittent action possible.
Standard type DC-27 needles.
Reduced noise and vibration when operating at high speeds.
Available Options: ET - Electric thread trimmer, P3D - Pneumatic thread trimmer, C - Back tacking.
Specifications
| Number of Needles | 2 (Double) |
|---|---|
| Feeding Mechanism | Differential |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | True Safety Stitch |
| Speed, Max (S.P.M.) | 6500 |
| Max Stitch Length | 3.8 mm |
| Presser Foot Lift | 5.5 mm |
| Needle Used | DC x 27 size 14 |
| Standard Distance Between Needles | 2 mm standard |
| Differential Ratio | 1 : 0.7 ~ 1.7 |
| Weight | 150 lbs |
| Number of Threads | 4/5 |
Catalogue
The Consew CM795-2 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
