Dürkopp Adler
269
Single needle lockstitch cylinder arm machine for medium-weight to heavy-weight material
Product features
The powerfull cylinder arm machine
The robust and proven construction of the machine class 269 has made this Dürkopp Adler machine an operating equipment for general stitching in medium-weight to heavy-weight material likeupholstery, leather articles and technical textiles.Only cylinder arm machines allow special sewing operations to be carried out on three-dimensional or tubular shaped items when processing technical textiles, shoe, leather goods, bags and similar products. The robust 269 with bottom, needle andalternating top feed, large vertical hook and safety clutch offers ideal conditions for these requirements.
Your benefits at a glance
Good seam quality and strong material feeding due to triple feed with alternating sewing feet
Cylinder arm sewing machine for three-dimensional applications
Robust and proven construction
Good cost-performance-ratio
Examples of use

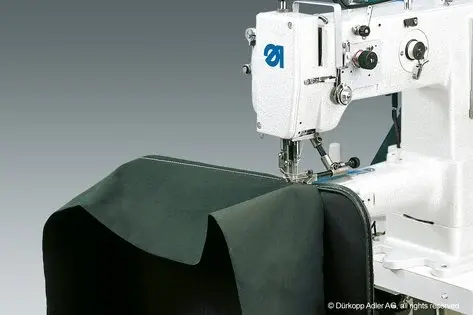

Sewing operations on three-dimensional items

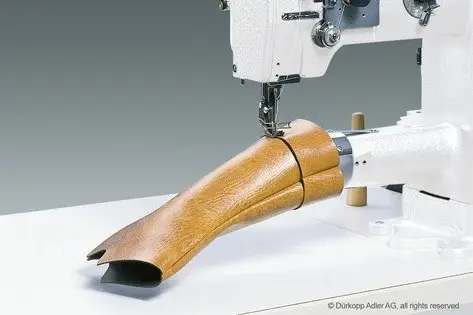

Sewing operations on tubular shaped items
Specifications
| Model | 269-373 |
|---|---|
| Bottom feed, needle feed and alternating foot top feed | ● |
| Clearance when Sewing/Lifting A = Sewing [mm] max. B = Lifting [mm] max. | A=6 / B=10 |
| Cylinder arm machine with clearance C [mm] D [mm] | C=285 / D=115 |
| Lockstitch (301) | ● |
| Needle size [Nm] max. | 110-140 |
| Needle system [Nm max.] * depending on the sewing equipment | 134-35 |
| Nominal voltage [V], [Hz] | 1x230V, 50 / 60 Hz |
| Packaging size (Length, Width, Heigh) [mm] | 780 / 370 / 790 |
| Rated power [W] max. | 550 |
| Sewing Material SL = very light / L= light / LM = light to medium heavy / M= medium heavy / MS = medium heavy to heavy / S = heavy | M / MS |
| Single needle | ● |
| Stitch length [mm] max. | 6 |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 1.600 |
| Stroke of the alternating sewing feet [mm] max. | 5 |
| Synthetic [Tkt.] max. * = Max. thread size upper thread: Tkt. 10/3, max. thread size Unterfaden: Tkt. 20/3 ** = Max. thread size upper thread: Tkt. 15/3; max. thread size Unterfaden: Tkt. 40/3 | 80 / 3 - 20 / 3 |
| Vertical hook, large (L, Ø 26 mm) | ● |
| Weight, sewing head [kg] | 38 |
● Standard ○ Optional
