Dürkopp Adler
G767
M-TYPE GAMMA
M-TYPE GAMMA | Proven sewing technology with outstanding ease of operation
Product features
Price meets technology
Convincing sewing technology, excellent performance parameters combined with modern control technology at an attractive price – these attributes characterize the machines of the M-TYPE GAMMA. The series impresses with high reliability, durability, an excellent price-performance ratio and thus represents the ideal entry-level model for medium-heavy duty application range.
LEVEL UP TO DÜRKOPP ADLER
Your benefits at a glance
Optimum functionality and high operating convenience

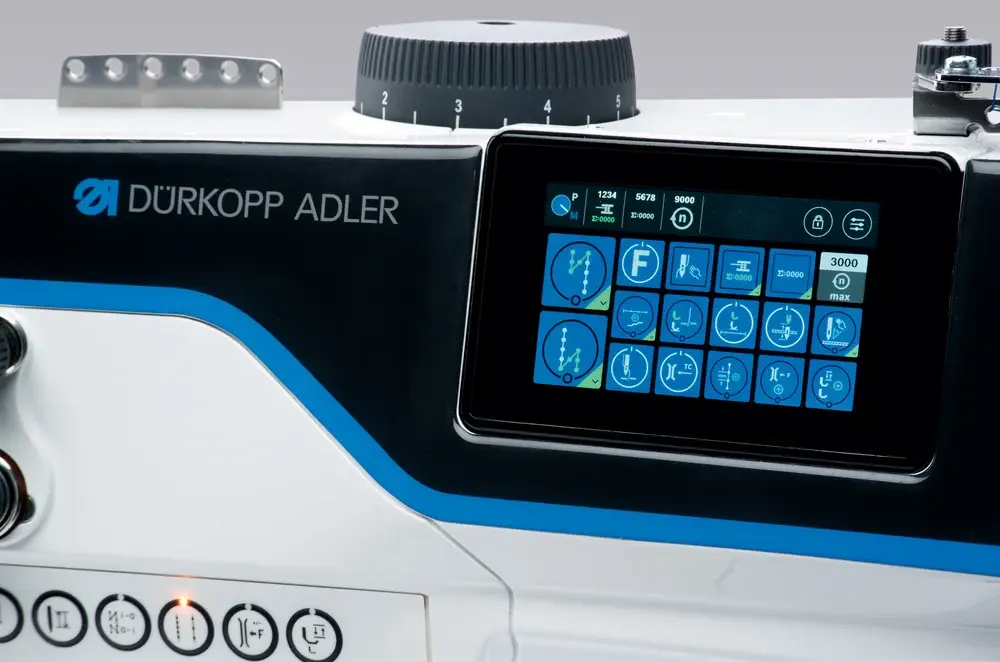

Touch control panel integrated in the machine head
The icon-oriented function panels allow easy setting of the relevant machine functions. Multi-function panels allow the associated parameter values to be adjusted at the simultaneously. Simple programs are programmed and sewn in automatic mode with detailed visualization of the sewing progress.
Large stitch length area of up to max. 9 millimeters
Manual switching between two preselected stitch lengths enables reproducible sewing results, for example when changing from an assembly seam to a topstitch seam.
Thread nipper for neat seam beginning on the upper side of the fabric
No visible needle thread on the upper side of the material at the beginning of the seam. The thread nipper reliably ensures an optically perfect beginning of the seam.
(only for G767-180145)
Connectivity
QONDAC equipped
M-TYPE GAMMA is QONDAC equipped
Scope of delivery: DAC classic control & Client
No additional hardware required
Easy access to QONDAC via Plug & Play*
*Additional Software Licence & Server-Installation required
Integrated keypad with ergonomically arranged favourite key for easy operation
Available as single and twin needle machine
For more automatisation in the production also available with autmoatic equipments for quick stroke adjustment, integrated second thread tension and integrated second stitch length
Available with automatic thread trimmer or short thread trimmer
The large clearance facilitates the handling of large-area workpieces
Low life-cycle costs due to high reliability and durability
A modular-designed casing enables easy and maintenance-friendly access to the machine-relevant components
Examples of use
Flexible sewing applications in medium-heavy duty materials
Automotive Interior - Decorative and assembly seams
Processing of technical textiles
Upholstery - Decorative and assembly seams
Specifications
| Model | G767-180142 | G767-180145 | G767-180342 | G767-280142 | G767-280342 |
|---|---|---|---|---|---|
| Air requirement per stroke / Air pressure [NL] [bar] | 0,7 / 6 | 0,7 / 6 | 0,7 / 6 | 0,7 / 6 | 0,7 / 6 |
| Bottom feed, needle feed and alternating foot top feed | ● | ● | ● | ● | ● |
| Clearance when Sewing/Lifting A = Sewing [mm] max. B = Lifting [mm] max. | A= 10 / B= 20 | A= 10 / B= 20 | A= 10 / B= 20 | A= 10 / B= 20 | A= 10 / B= 20 |
| DA-sewing drive | ● | ● | ● | ● | ● |
| Dimensions (Length, Width, Height) [mm] | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 |
| Flat bed machine with clearance C [mm] D [mm] | C=350 / D=125 | C=350 / D=125 | C=350 / D=125 | C=350 / D=125 | C=350 / D=125 |
| Foot stroke adjustuble by dial with simultaneous automatic speed limitation | ● | ● | ● | ● | ● |
| Integrated 2nd qick stroke adjustment Quick stroke adjustment via knee switch and foot stroke adjustable by dial with simultaneous automatic speed limitation according to the foot stroke and feeding length. | – | – | ● | – | ● |
| Integrated 2nd stitch length adjustment | – | – | ● | – | ● |
| Integrated LED sewing light with dimmer | ○ | ○ | ○ | ○ | ○ |
| Lockstitch (301) | ● | ● | ● | ● | ● |
| Needle size [Nm] max. | 90-160 | 90-160 | 90-160 | 90-160 | 90-160 |
| Needle system [Nm max.] * depending on the sewing equipment | 134-35 | 134-35 | 134-35 | 134-35 | 134-35 |
| Nominal voltage [V], [Hz] | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz |
| Program control, operating panel OP1000 | ● | ● | ● | ● | ● |
| Rated power [W] max. | 375 | 375 | 375 | 375 | 375 |
| Seam backtacking A = Automatic, Ma= Manual ***= programmable, stitch length 0,5-6,5mm | ● A | ● A | ● A | ● A | ● A |
| Sewing foot lift, automatic | ● | ● | ● | ● | ● |
| Sewing Material SL = very light / L= light / LM = light to medium heavy / M= medium heavy / MS = medium heavy to heavy / S = heavy | M / MS | M / MS | M / MS | M / MS | M / MS |
| Short thread trimmer [approx. length of remaining thread in mm] max | – | ● 5mm | – | – | – |
| Single needle | ● | ● | ● | – | – |
| Stitch length [mm] max. | 9 | 9 | 9 | 9 | 9 |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 3.000 | 3.000 | 3.000 | 3.000 | 3.000 |
| Stroke of the alternating sewing feet [mm] max. | 9 | 9 | 9 | 9 | 9 |
| Synthetic [Tkt.] max. * = Max. thread size upper thread: Tkt. 10/3, max. thread size Unterfaden: Tkt. 20/3 ** = Max. thread size upper thread: Tkt. 15/3; max. thread size Unterfaden: Tkt. 40/3 | 80 / 3 - 15 / 3 | 80 / 3 - 15 / 3 | 80 / 3 - 15 / 3 | 80 / 3 - 15 / 3 | 80 / 3 - 15 / 3 |
| Thread nipper for a neat seam beginning | ○ | ● | ○ | ○ | ○ |
| Thread trimmer [approx. length of remaining thread in mm] max | ● 15mm | – | ● 15mm | ● 15mm | ● 15mm |
| Two needles Needle distance [mm] max. | – | – | – | ● 3-50 | ● 3-50 |
| Vertical hook, extra large (XXL, Ø 32 mm) | ● | ● | ● | ● | ● |
| Weight, sewing head [kg] | 58 | 58 | 58 | 58 | 58 |
● Standard ○ Optional
