670

Stitch loosening device for perfect shoulder pads

The optimized workstation 670 is equipped with bottom, needle and alternating foot top feed, switchable fullness chooseable from top or bottom and stitch loosening device.The post of the machine is located on the right side for easy handling when attaching the sleeve lining through the shoulder pad.

Your benefits at a glance

Secured sewing start

For a secured sewing start, a low thread tension and stitch condensing can be switched on.

Material thickness detection

Programmable, automatic material thickness detection with two values within one shoulder pad

The automatic material thickness detection scans the material thickness via a sensor and is switched on automatically. It can be programmed for symmetrical and asymmetrical shoulder pads with 2 different values within one seam. Depending on the programmed value, it automatically switches on the machine's additional functions - stitch loosening function, second stitch length, second foot stroke height and second thread tension. This guarantees a consistent volume and soft feel of the shoulder pad.

Switchable functions

Switchable 2nd thread tension, 2nd foot stroke and 2nd stitch length for the adaptation of the machine to the different material thickness

2. stroke height of the alternating foot top feed for easier sewing over the shoulder pad

2. stitch length for sewing over the shoulder pad

2. thread tension for a loose thread tension in the shoulder pad.

Fullness value

Switchable fullness either in the upper or lower fabric layer at the touch of a button

Switchable fullness either in the upper or lower fabric layer at the touch of a button.

The fullness value is mechanically adjustable and – depending on the application – it can be switched on in the upper or lower fabric by push button.

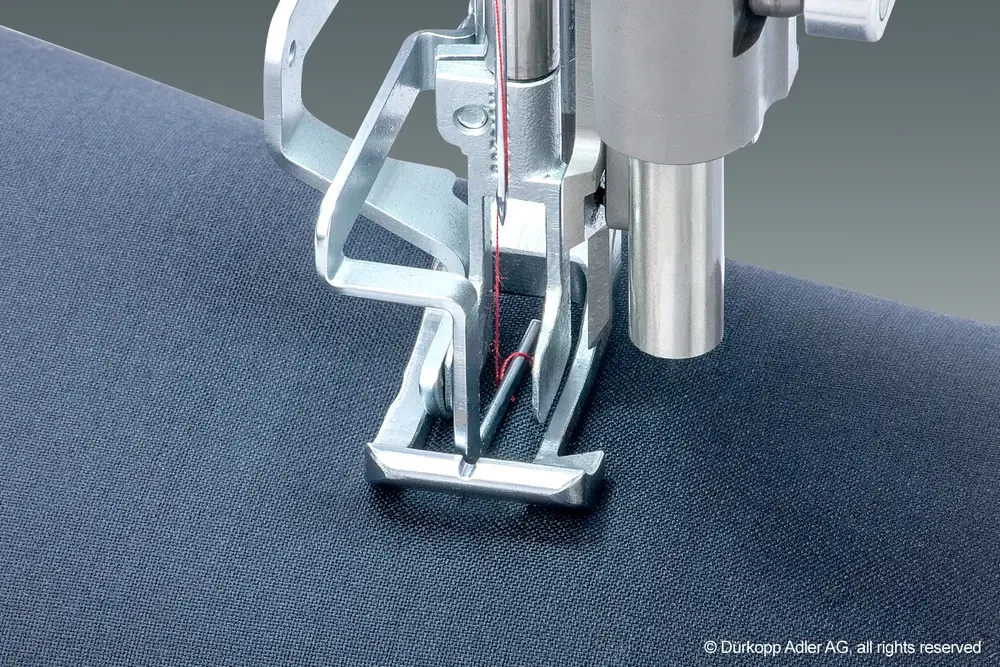

Stitch loosening finger (long and short version) to adapt the thread quantity to the thickness of the shoulder pad

The switchable stitch loosening device prevents squeezing when the shoulder pad is sewn through. Thus, the pad retains its volume and soft touch.

Oil- Lubrication

No manual greasing required – central minimum oil wick lubrication with warning light for oil deficiency (option)

The central minimum oil wick lubrication is positioned with an eyeglass in the arm. Optionally it can be equipped with a warning light as an oil deficiency indicator (9850 86700)

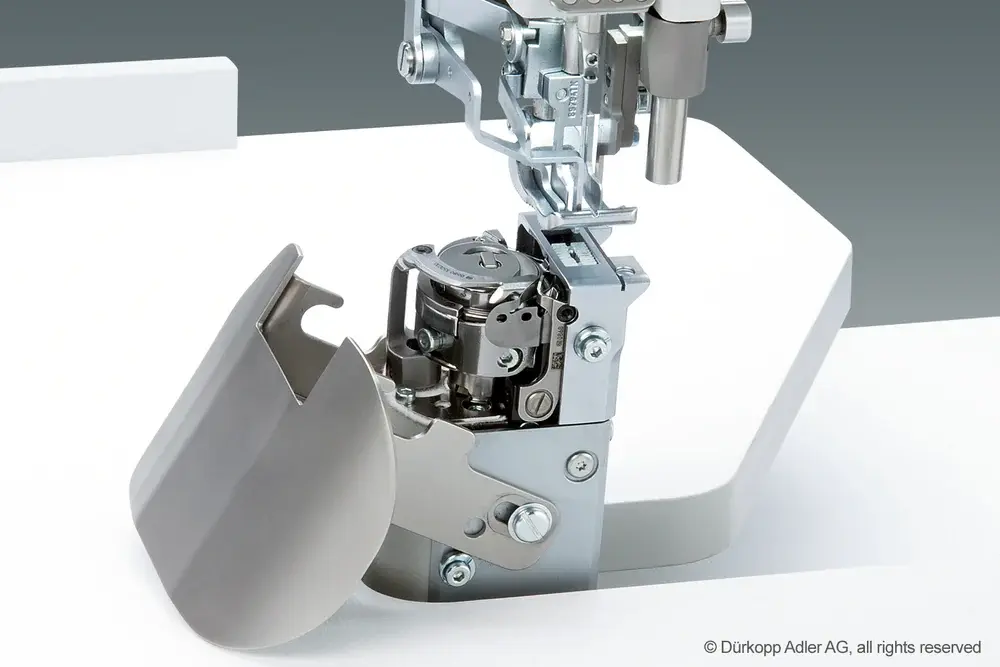

Large three-piece vertical hook

Large three-piece vertical hook 26 mm with 60% higher bobbin thread capacity

Large, three-part vertical gripper Ø 26 mm has 60% higher bobbin capacity for reduced bobbin change. The optimized hook allows lowest thread tension.

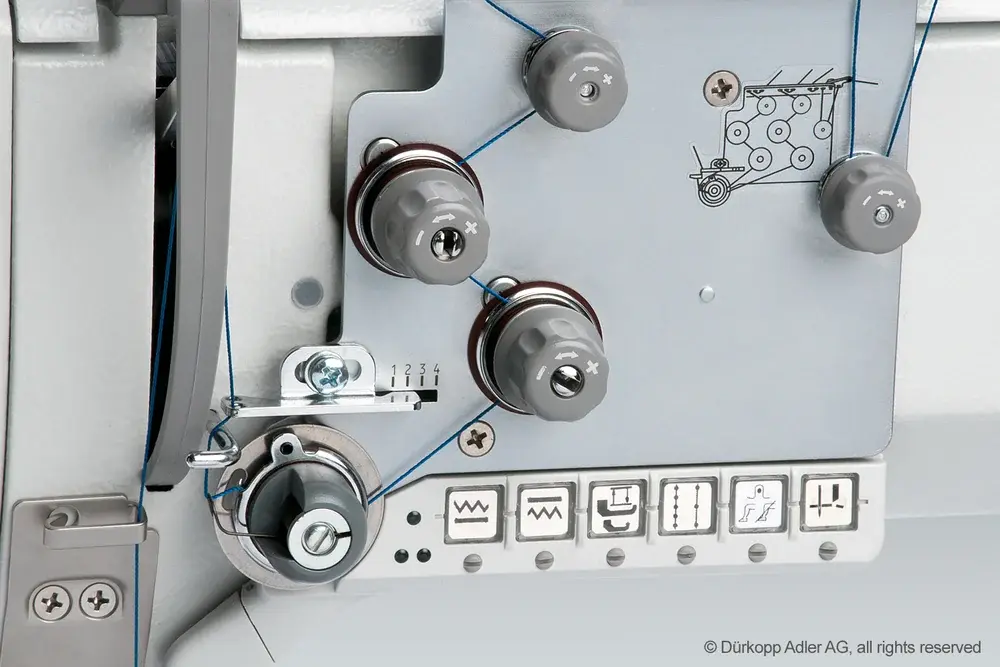

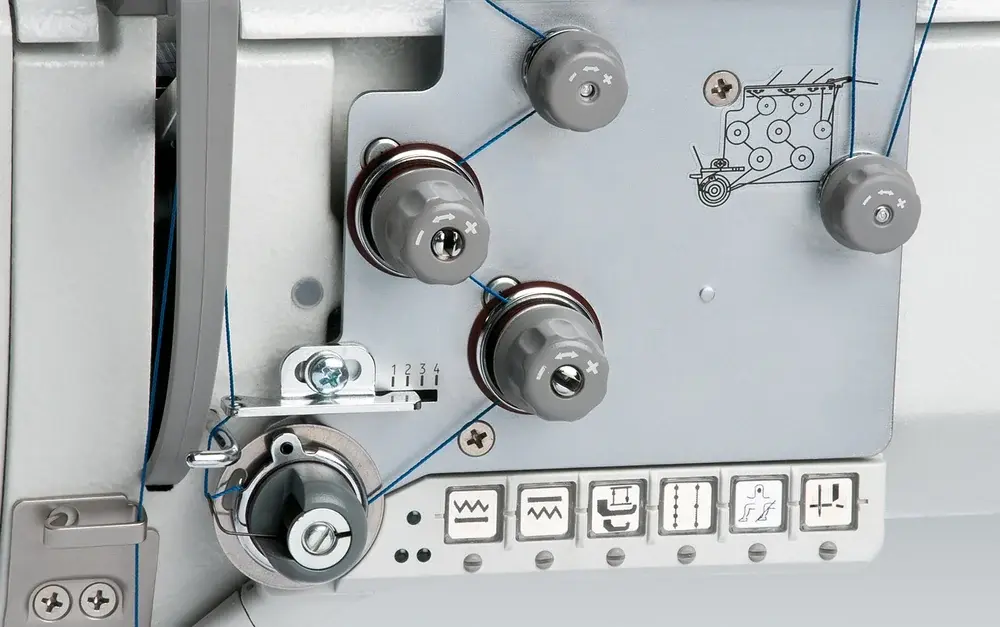

Intergrated 6-function key bar with ergonomically arranged favourite key for quick access

6-function key bar with quick access and favorite key for the functions: fullness on top, fullness on bottom, 2nd foot stroke, 2nd stitch length, automatic material thickness detection, edge trimmer ON/OFF (only on 680)

• Knee switch for manual activating of the stitch loosening device, the 2nd stitch length and the 2nd foot stroke

• Max. 9 mm stitch length depending on the sewing equipment

• Modern, reliable and network-capable Dürkopp Adler control technology with DAC classic

• Max. sewing speed of 1.800 stitches/min., the maximum number of stitches depends on the use of the stitch loosening device

Examples of use

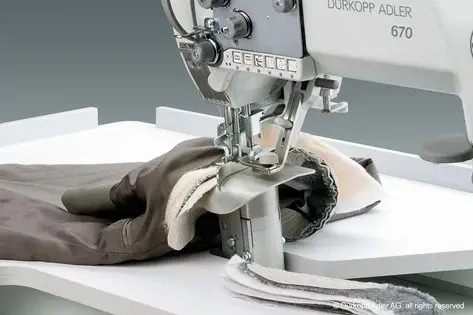

Sew the sleeve lining through the shoulder pad into the armhole

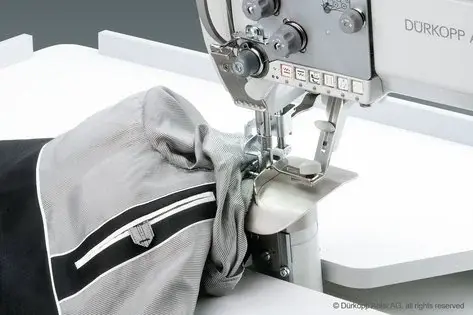

Attaching sleeve heads / wadding stripes

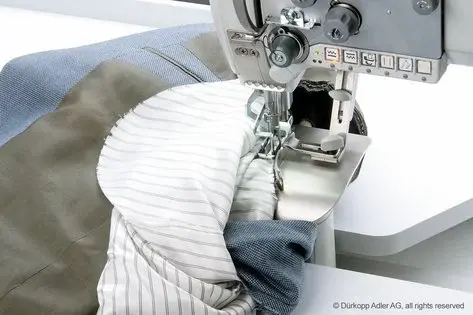

Attach sleeve lining in the lower armhole area

● Standard ○ Optional
