3822
optimized workstation for run-stitching and trimming the front edges
Product features
reproducible quality
The PFAFF 3822 makes the operation “run-stitch and trim jacket edges” (run-stitch seams) much more efficient. A defined fullness applied at the required points ensures a perfect processing quality. Heavy coat materials, jackets and costumes of different fabrics, including silk and micro-fibres, can be sewn at a high quality level. A feathered edge trimming is possible with the subclass -3/44.
Your benefits at a glance

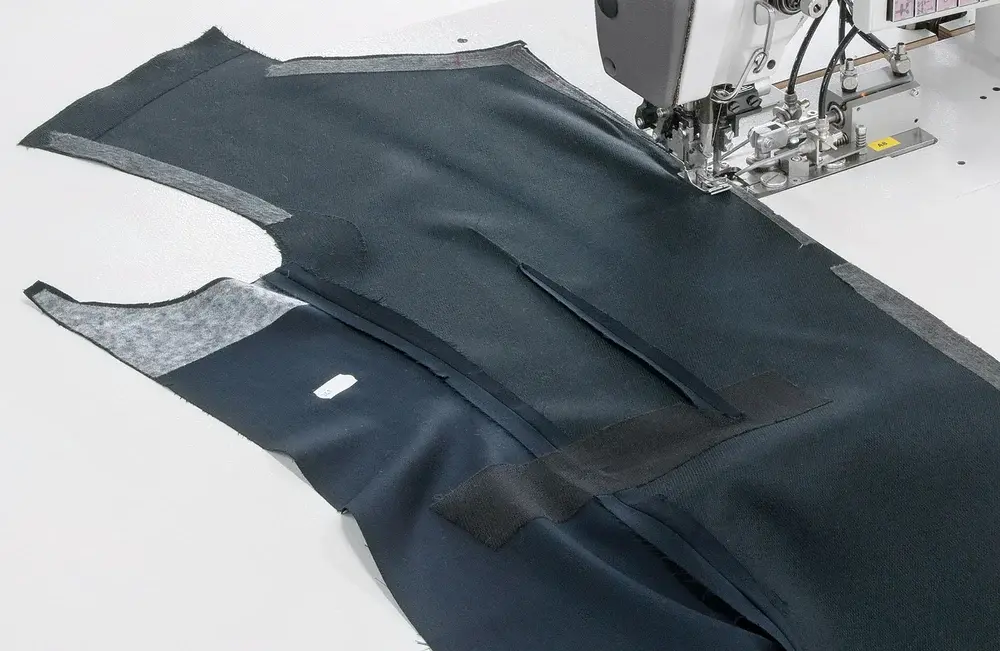

Apply fullness
As fullness can be applied to the top or bottom ply, the usual basting and clamping is not necessary

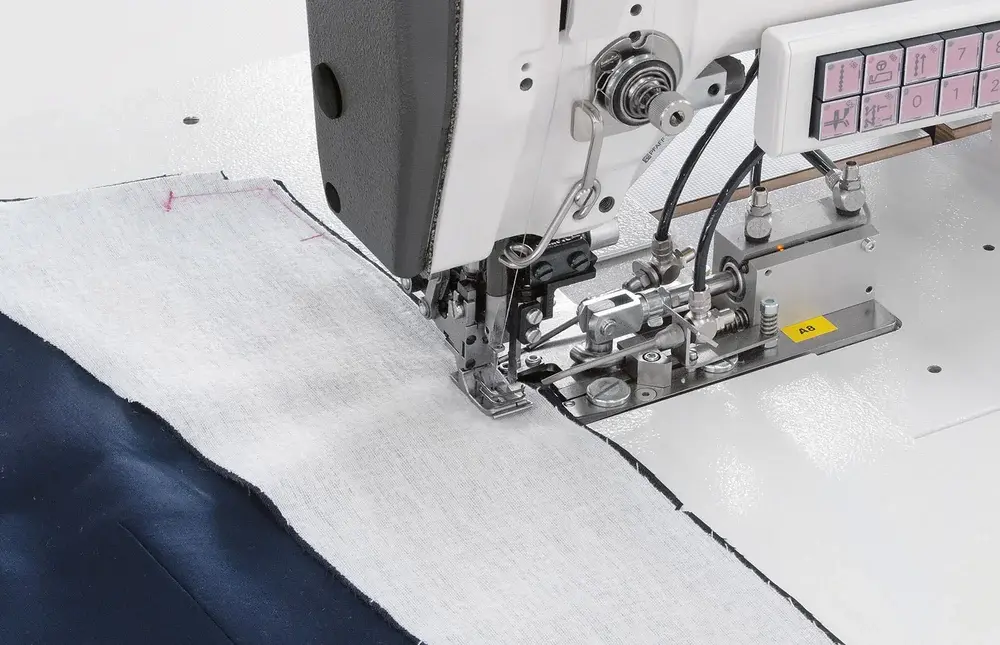

Feathered trimming (-3/44)
Workstation optimized for the application „Runstitching and feathered trimming of jacket front edges“ (-3/44)
Precise reproducible application of fullness at any time

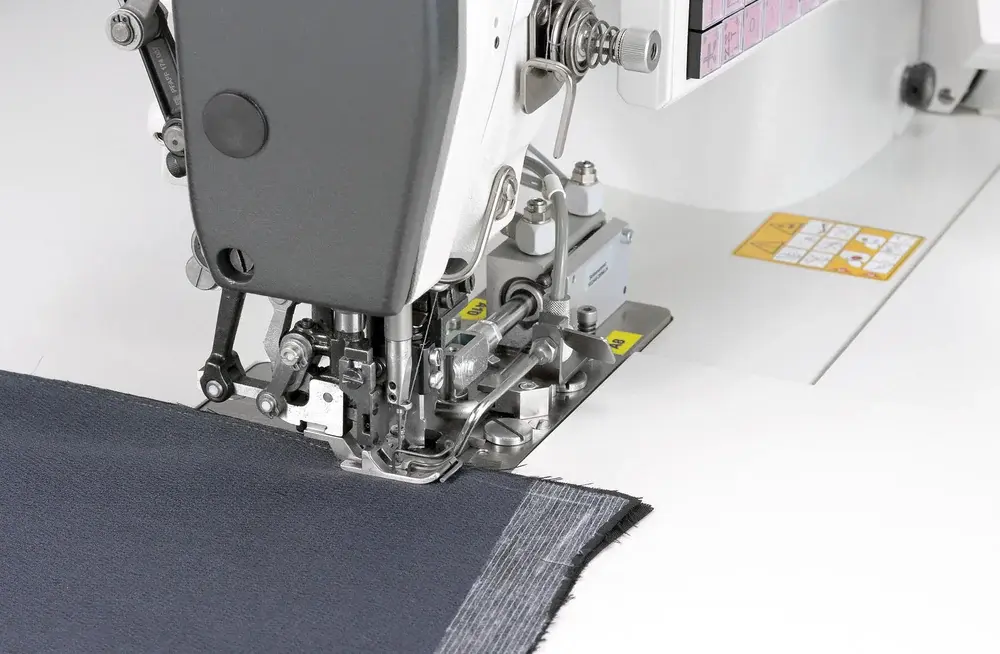

Smooth seams due to the use of a floating presser foot
Exact curves at the tip of the lapels on double-breasted jackets by switching to stitch condensation
Flat, perfect edges with no pressure marks when using the feather edge trimmer (-3/44)
High output: 265 jacket front parts in 8 hours (-3/42); 220 jacket front parts in 8 hours (-3/44)
Examples of use
Front edges on women's blazers and coats
Specifications
| Model | 3822-3/42 | 3822-3/44 |
|---|---|---|
| Automatic backtacking and stitch condensation | ● | ● |
| Automatic presser foot lift | ● | ● |
| Automatic thread trimmer | ● | ● |
| Clearance when lifting [mm] max. | 7,0 mm | 7,0 mm |
| Edge trimmer | 5 mm / 6 mm | – |
| Feathered edge trimmer (lower layer) | – | 6,0 mm |
| Feathered edge trimmer (upper layer) | – | 3,5 mm |
| Lockstitch (301) | ● | ● |
| Needle bar stroke [mm] max. | 30,0 mm | 30,0 mm |
| Needle system [Nm max.] * depending on the sewing equipment | 134 KK | 134 KK |
| Nominal voltage [V], [Hz] | 230V, 50 / 60 Hz | 230V, 50 / 60 Hz |
| Stitch length (Fullness setting "0") | 2,7 mm | 2,7 mm |
| Stitch length (with stitch condensation) | 1,6 mm | 1,6 mm |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 4.000 | 3.200 |
● Standard ○ Optional
