Dürkopp Adler
667 / 867
ECO

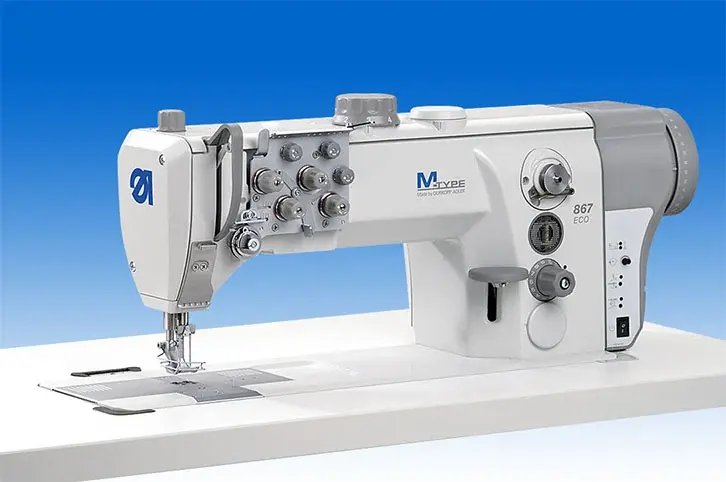

The M-TYPE flatbed machines with basic mechanical functions and triple feed
Product features
The basic model with convincing performance parameters
Due to outstanding performance parameters the subclasses of the program level M-TYPE ECO lockstitch flat bed machines with triple feed offer high functionality and flexibility – at an attractive price.
The powerful and effective triple feed system guarantees a trouble-free and displacement-free material feed when processing most different fabric thicknesses and structures.
The DAC eco control is equipped with convenient basic functions such as needle positioning, soft start and realization of a pedal-operated single stitch.
The subclasses of the M-TYPE ECO program level are suitable as robust operating equipment for universal sewing operations in the field of home upholstery, room decoration, leather goods as well as on technical textiles.
Your benefits at a glance
Available as 1- and 2-needle version
Available as long arm machines. The extended clearance facilitates the handling of large-area workpieces and access to difficult-to-reach sewing areas
Good seam quality and strong material feeding due to triple feed with alternating sewing feet
Good cost-performance-ratio
Choice of horizontal hook (L or XL horizontal hook) for simplified bobbin changes and vertical hook for optimum processing of thicker sewing threads. Vertical hook available as XL or XXL hook for 70% increased bobbin thread capacity
LG Version: Special machine with differentiable binding device
Examples of use

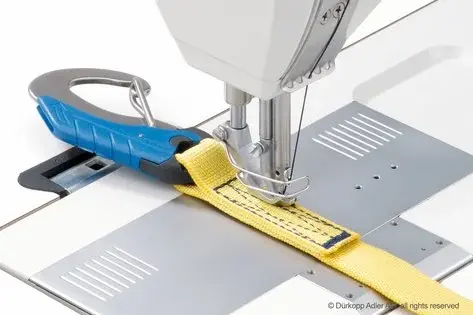

Flexible use in belt production

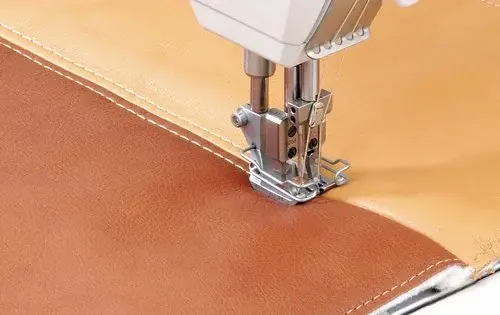

Decorative topstitching of upholstered furniture covers

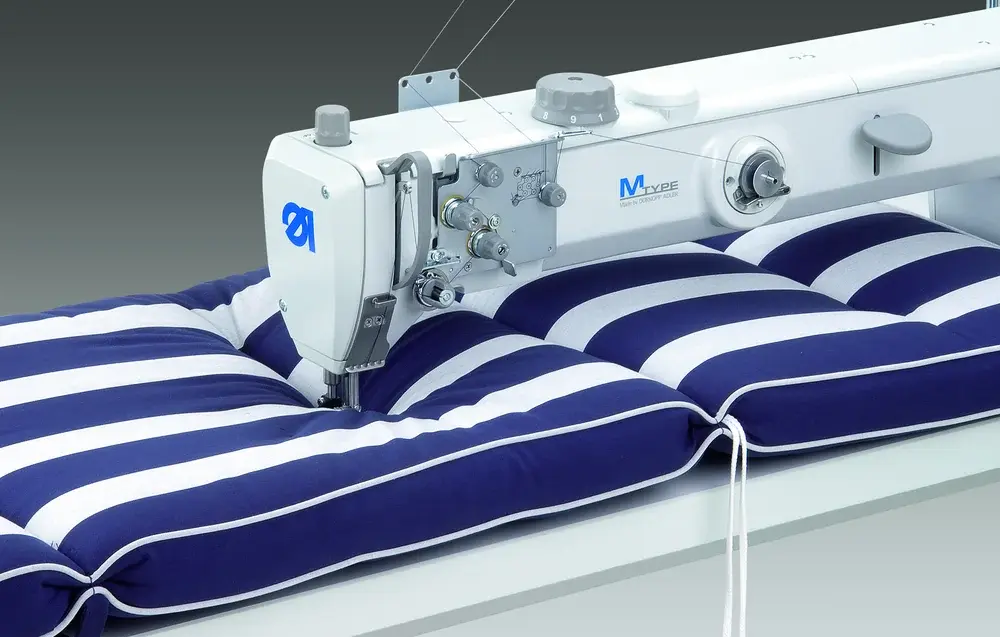

Through-stitching seams in seat cushions

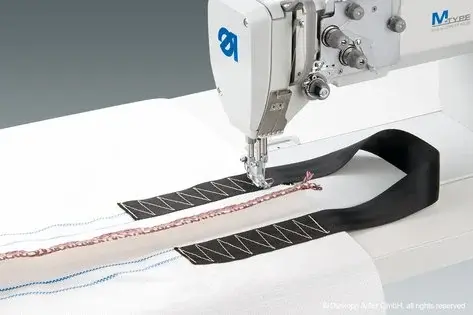

Attaching of lifting belts in the production of big bags
Specifications
| Model | 667-180010 | 667-180030 | 867-190020-M | 867-190040-M | 867-290020-M | 867-290040-M | 867-392040-M (LG) |
|---|---|---|---|---|---|---|---|
| Additional thread tension, A= Automatic, Ma=Manual | ● Ma | ● Ma | ● Ma | ● Ma | ● Ma | ● Ma | ● Ma |
| Available without DA drive / available with separate motor packages | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Bottom feed, needle feed and alternating foot top feed | ● | ● | ● | ● | ● | ● | ● |
| Clearance when Sewing/Lifting A = Sewing [mm] max. B = Lifting [mm] max. | A= 10 / B= 20 | A= 10 / B= 20 | A=10 / B=20 | A=10 / B=20 | A=10 / B=20 | A=10 / B=20 | A=10 / B=20 |
| DA-sewing drive | ● | ● | – | – | – | – | – |
| Dimensions (Length, Width, Height) [mm] | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 | 1.060 / 500 / 1.700 |
| Flat bed machine with clearance C [mm] D [mm] | C= 335 / D= 125 | C= 335 / D= 125 | C= 335 / D= 125 | C= 335 / D= 125 | C= 335 / D= 125 | C= 335 / D= 125 | C= 335 / D= 125 |
| Foot stroke adjustuble by dial | ● | ● | ● | ● | ● | ● | ● |
| Hook to the left of the needle | – | – | – | – | – | – | ● |
| Horizontal hook, extra large (XXL, Ø 32 mm) | – | ● | – | – | – | – | – |
| Horizontal hook, large (L, Ø 26 mm) | ● | – | – | – | – | – | – |
| Integrated control DAC eco M-TYPE | – | – | ● | ● | ● | ● | ● |
| Integrated DA-direct drive | – | – | ● | ● | ● | ● | ● |
| Integrated LED sewing light with dimmer | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Lockstitch (301) | ● | ● | ● | ● | ● | ● | ● |
| Long arm versions available as a standard Can influence the maximum sewing speed C [mm] D [mm] | – | – | ○ C=700 / D=125 | ○ C=700 / D=125 | ○ C=700 / D=125 | ○ C=700 / D=125 | – |
| Moving binder | – | – | – | – | – | – | ● |
| Needle size [Nm] max. | 80-150 | 100-180 | 90-180 | 90-180 | 90-180 | 90-180 | 90-180 |
| Needle system [Nm max.] * depending on the sewing equipment | 134-35 | 134-35 | 134-35 | 134-35 | 134-35 | 134-35 | 134-35 |
| Nominal voltage [V], [Hz] | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz |
| Power consumption [kVA] max. | 1.0 | 1.0 | 1,0 | 1,0 | 1,0 | 1,0 | 1,0 |
| Rated power [W] max. | 375 W | 375 W | 375 W | 375 W | 375 W | 375 W | 375 W |
| Seam backtacking A = Automatic, Ma= Manual ***= programmable, stitch length 0,5-6,5mm | ● Ma | ● Ma | ● Ma | ● Ma | ● Ma | ● Ma | ● Ma |
| Sewing foot lift, automatic | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Sewing foot lift, mechanical, adjusted by knee | ● | ● | ● | ● | ● | ● | ● |
| Sewing Material SL = very light / L= light / LM = light to medium heavy / M= medium heavy / MS = medium heavy to heavy / S = heavy | M / MS | M / MS | M / MS | M / MS | M / MS | M / MS | M / MS |
| Single needle | ● | ● | ● | ● | – | – | ● |
| Stitch length [mm] max. | 9 | 9 | 12 | 12 | 12 | 12 | 12 |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 3.000 | 3.000 | 3.800* | 3.400* | 3.400* | 3.400* | 3.000* |
| Stroke of the alternating sewing feet [mm] max. | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| Synthetic [Tkt.] max. * = Max. thread size upper thread: Tkt. 10/3, max. thread size Unterfaden: Tkt. 20/3 ** = Max. thread size upper thread: Tkt. 15/3; max. thread size Unterfaden: Tkt. 40/3 | 15 / 3 | 10 / 3 | 10 / 3 | 10 / 3 | 10 / 3 | 10 / 3 | 10 / 3 |
| Two needles Needle distance [mm] max. | – | – | – | – | ● 4-60 | ● 4-60 | – |
| Vertical hook, extra large (XXL, Ø 32 mm) | – | – | – | ● | – | ● | ● |
| Vertical hook, large (L, Ø 26 mm) | – | – | ● | – | ● | – | – |
| Weight, sewing head [kg] | 50-54 | 50-54 | 55-57 | 55-57 | 55-57 | 55-57 | 55-59 |
● Standard ○ Optional
