Dürkopp Adler
887
Silverline

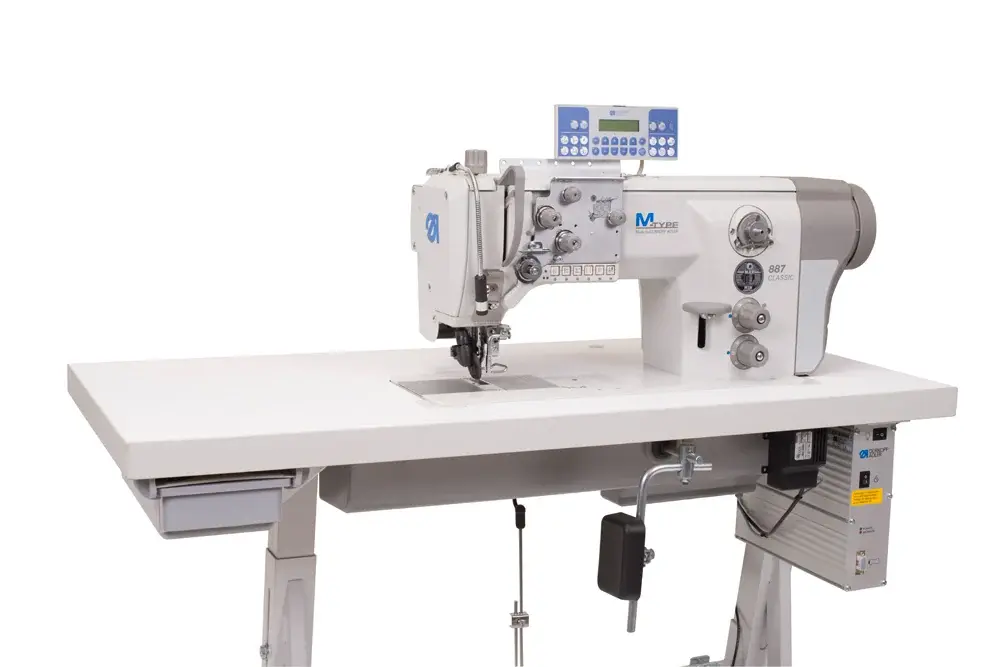

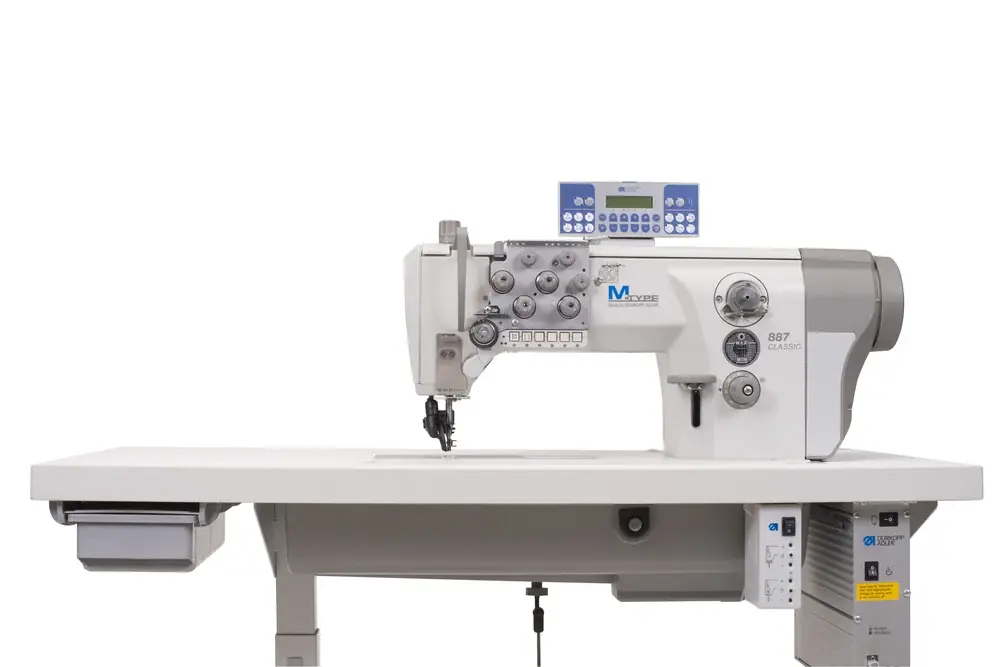

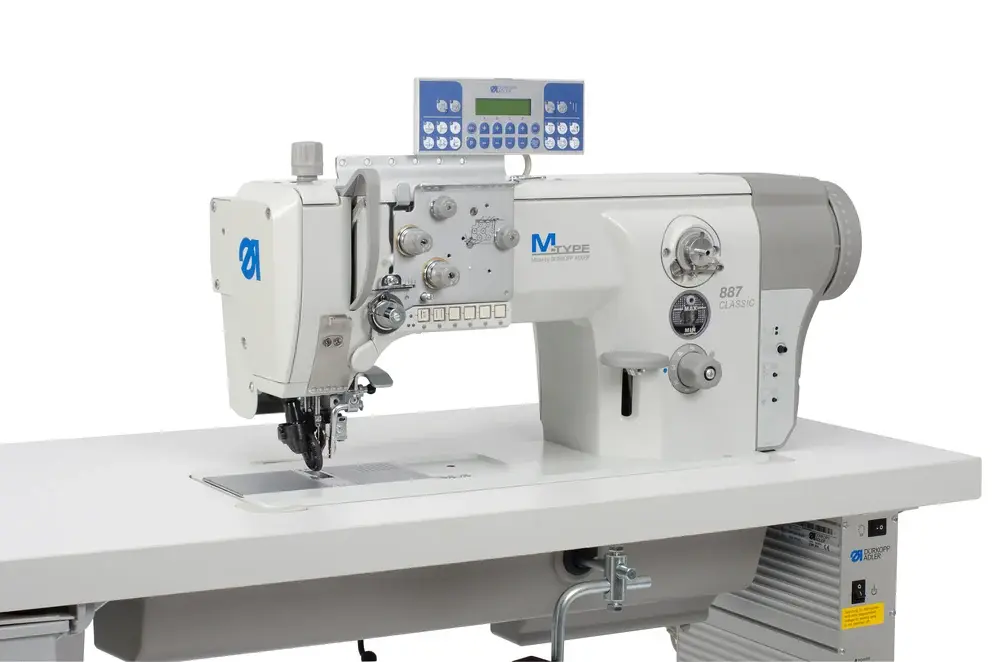

The M-TYPE flatbed machines with automatic functions and triple wheel feed
Product features
Sewing comfort with automatic functions
The M-TYPE flatbed machines with with triple wheel feed (wheel feed, needle feed and driven roller presser) of the CLASSIC Silverline equipment variant are equipped with automatic functions like thread trimmer, automatic backtacking, automatic sewing foot lift and automatic needle positioning.
The powerful and effective triple feed system guarantees a trouble-free material feed when processing different leather thicknesses and structures.
Highly efficient sewing parameters combined with automatic functions make the 887-M CLASSIC classes suitable for universal sewing operations in the field of leather shoe uppers, leather goods production as well as in the automotive industry.
Your benefits at a glance
Available as 1- and 2-needle version
Specialized 1-needle subclass with vertical material trimmer
Reduced process times due SILVERLINE features
Reduced process times due to automatic basic functions like thread trimmer, automatic backtacking, automatic sewing foot lift, automatic needle positioning
Feeding wheel covered by rubber, for mark-free sewing (optional for single needle machines)

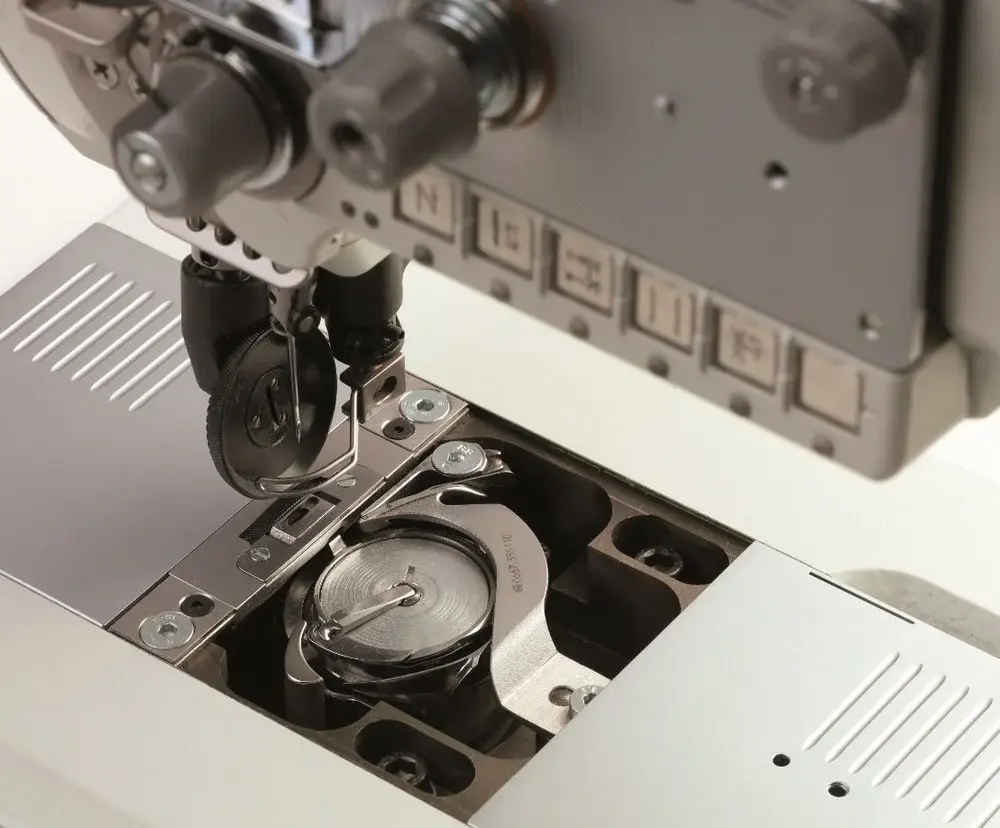

Available also with XXL hook (32 mm bobbin)
Excellent seam quality and strong material feeding due to triple feed system with roller presser foot
Lining trimming machine subclass 887-363522-M is available with penumatically switchable second thread tension and second stitch length
Processing of thick sewing thread sizes up to NM10/3
Needle change without tools (single needle machines)
Lubricating system with central oil tank and oil pump
Feeding wheel with cross grooving for minimized marks on the fabrics
Examples of use

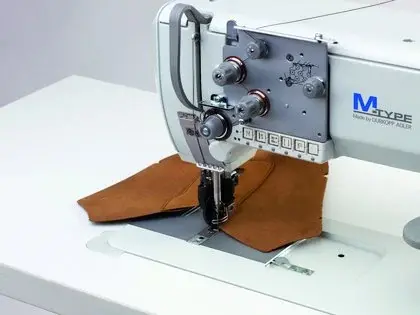

Flexible use in leather production
Two-needle decorative seam

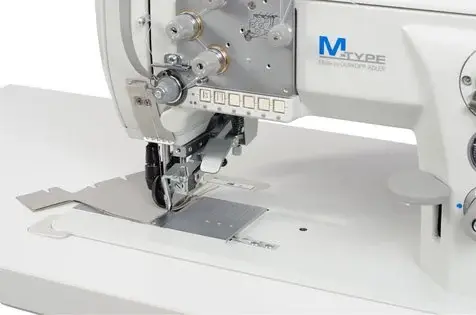

Various lining trimming operations
Specifications
| Model | 887-160122-M | 887-160142 | 887-260122-M | 887-363122-M | 887-363522-M |
|---|---|---|---|---|---|
| Air requirement per stroke / Air pressure [NL] [bar] | – | – | – | – | 0,7 / 6 |
| Available without DA drive / available with separate motor packages | ○ | ○ | ○ | ○ | – |
| Clearance when lifting [mm] max. | 12 | 12 | 12 | 12 | 12 |
| DA-sewing drive | – | ● | – | – | – |
| Dimensions (Length, Width, Height) [mm] | 1.060 / 500 / 1.630 | 1.060 / 500 / 1.630 | 1.060 / 500 / 1.630 | 1.060 / 500 / 1.630 | 1.060 / 550 / 1.630 |
| Flat bed machine with clearance C [mm] D [mm] | C= 280 / D= 137 | C= 280 / D= 137 | C= 280 / D= 137 | C= 280 / D= 137 | C=280 / D=137 |
| Foot stroke adjustuble by dial with simultaneous automatic speed limitation | ● | ● | ● | ● | – |
| Integrated 2nd qick stroke adjustment Quick stroke adjustment via knee switch and foot stroke adjustable by dial with simultaneous automatic speed limitation according to the foot stroke and feeding length. | – | – | – | – | ● |
| Integrated 2nd stitch length adjustment | – | – | – | – | ● |
| Integrated DA-direct drive | ● | – | ● | ● | ● |
| Integrated LED sewing light with dimmer | ○ | ○ | ○ | ○ | ● |
| Lockstitch (301) | ● | ● | ● | ● | ● |
| Needle size [Nm] max. | 70-160 | 90-160 | 70-160 | 70-160 | 70-160 |
| Needle system [Nm max.] * depending on the sewing equipment | 134-LR | 134-LR | 134-LR | 134-35 | 134-35 |
| Nominal voltage [V], [Hz] | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz |
| Oblique knife, motor-driven | – | – | – | ● | ● |
| Oil maintenance indicator | ○ | ○ | ○ | ○ | ● |
| Power consumption [kVA] max. | 0,8 | 0,8 | 0,8 | 0,8 | 1 |
| Program control, operating panel OP1000 | ● | ● | ● | ● | ● |
| Rated power [W] max. | 375 W | 375 W | 375 W | 375 W | 375 W |
| Seam backtacking A = Automatic, Ma= Manual ***= programmable, stitch length 0,5-6,5mm | ● A | ● A | ● A | ● A | ● A |
| Sewing foot lift, automatic | ● | ● | ● | ● | ● |
| Sewing Material SL = very light / L= light / LM = light to medium heavy / M= medium heavy / MS = medium heavy to heavy / S = heavy | L / M / S | L / M / S | L / M / S | L / M / S | L / M / S |
| Single needle | ● | ● | – | ● | ● |
| Stitch length [mm] max. | 6 | 6 | 6 | 6 | 6 |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 3.000 | 2.000 | 3.000 | 3.000 | 3.000 |
| Synthetic [Tkt.] max. * = Max. thread size upper thread: Tkt. 10/3, max. thread size Unterfaden: Tkt. 20/3 ** = Max. thread size upper thread: Tkt. 15/3; max. thread size Unterfaden: Tkt. 40/3 | 10 / 3 | 10 / 3 | 10 / 3 | 10 / 3 | 10 / 3 |
| Thread trimmer, automatic | ● | ● | ● | ● | ● |
| Two needles Needle distance [mm] max. | – | – | ● 1,2-2,4 | – | – |
| Vertical hook, extra large (XXL, Ø 32 mm) | – | ● | – | – | – |
| Vertical hook, large (L, Ø 26 mm) | ● | – | ● | ● | ● |
| Weight, complete [kg] | 105 | 105 | 107 | 105 | 105 |
| Weight, sewing head [kg] | 53 | 53 | 55 | 53 | 53 |
| Wheel feed, needle feed and driven roller presser Puller diameter [mm] | ● 35 | ● 35 | ● 35 | ● 35 | ● 35 |
● Standard ○ Optional
