Roll Stand, 2-Roll Heavy Duty
Feeding system
Product features
1 / 2
The Roll Stand System allows the user to easily handle rolled goods for spreading onto the cutting system, maintaining precise alignment of each ply with a photo-electric edge control unit. Many configurations and styles available.
With or without automatic edge control
3-strap brake
Center support for wider machines, and for narrow heavy materials

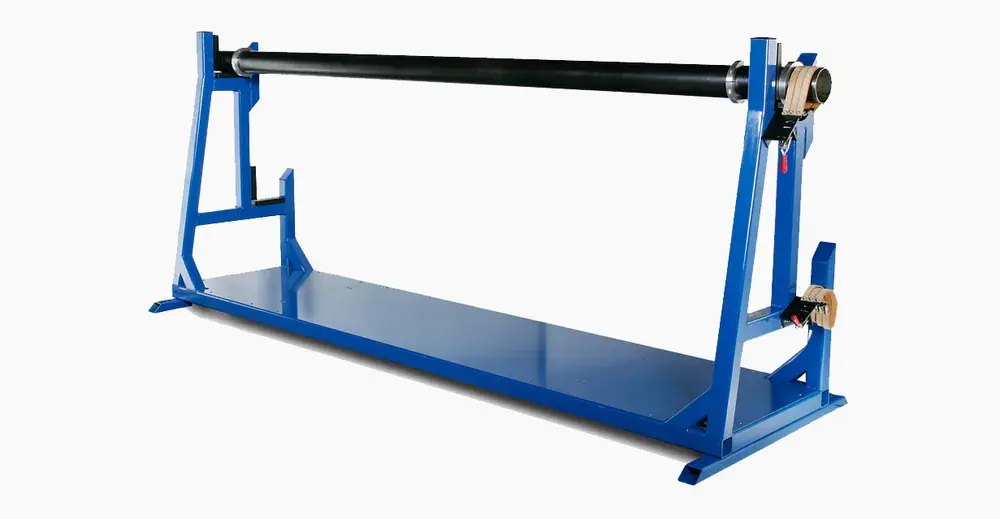

Shown with one bar
Bar options include frozen, solid or expandabar
Not recommended for stretchy fabrics, vinyl or lycra
Specifications
| Width | 66 in. (1.7m) 72 in. (1.8m) 78 in. (2.0 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. |
|---|---|
| Standard Weight Capacity | 2,500 lbs. (1,134 kg) |
| Maximum Roll Diameter | 30 in. (76 cm) 48 in. (122 cm) if only one bar is utilized |
| Power Requirements | 110V or 220V, 1 ph |
