Eastman Machine
Roll Stand, Chute-Roller Assembly
Feeding system
Product features
1 / 2
Easily feed multiple rolls of material simultaneously onto the cutting table, while maintaining precise edge alignment, with the Roll Stand, Chute-Roller Assembly.
The Eastman Roll Stand System allows the user to easily handle rolled goods for spreading onto the table, maintaining precise alignment of each ply with a photo-electric edge control unit. The chute-roller assembly allows for efficient feeding of multiple material rolls simultaneously onto the cutting table.
Available at 72″ (1.8m) wide, and greater
Automatic edge control included
Frozen bar, core stops optional
Up to 2-3/4″ heavy-duty roller tubes with 3-strap brake

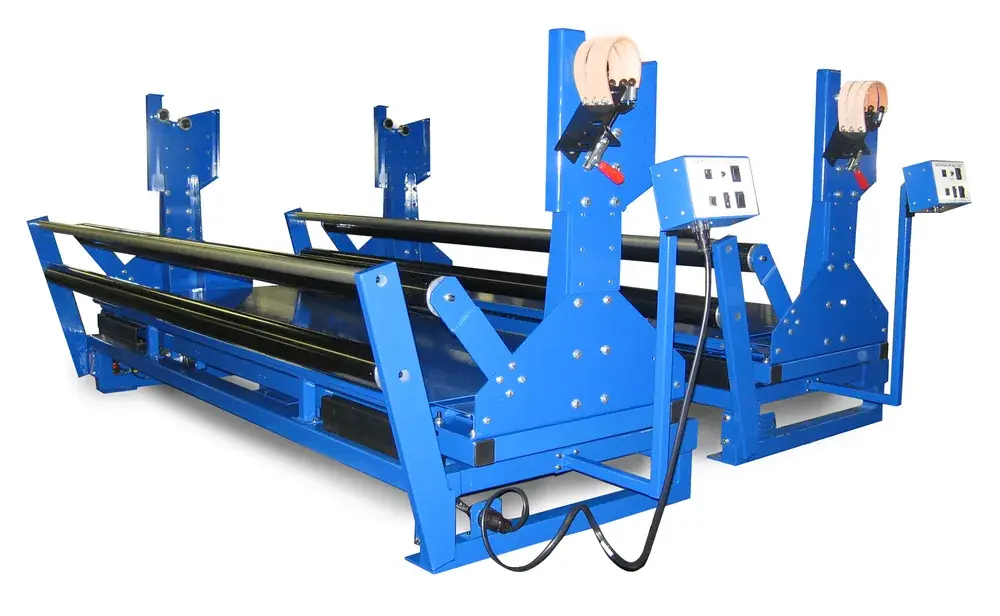

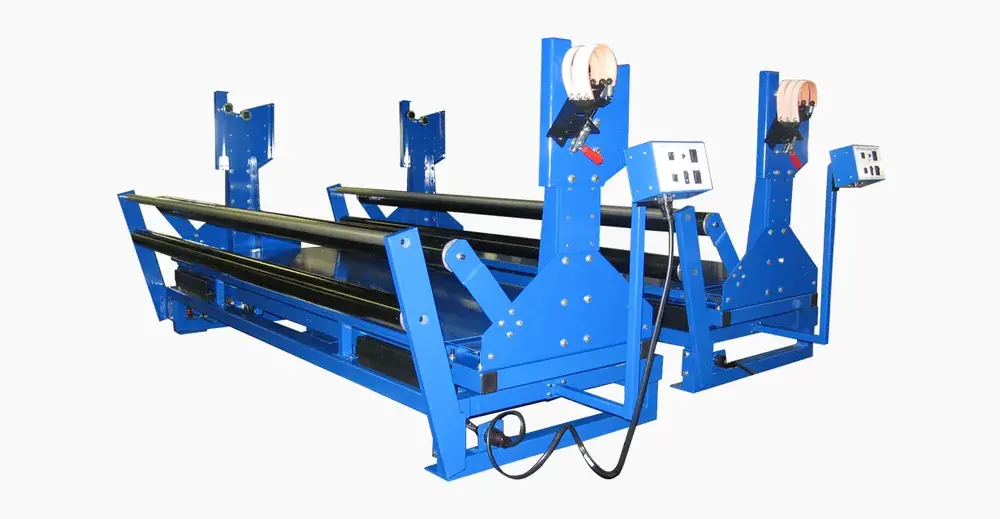

Shown with chute and roller assembly for feeding multiple rolls
Single or multiple unit configuration for feeding several layers of material
Not recommended for stretchy fabric or vinyl
Custom configurations, widths and roll weight capacities available
Specifications
| Width | 72 in. (1.8m)+ Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. |
|---|---|
| Standard Weight Capacity | >300 lbs. (136 kg), less than 1,000 lbs. |
| Maximum Roll Diameter | 20 in. (51 cm) |
| Power Requirements | 110V at 15 amps, 1 ph 220V at 8 amps, 1 ph |
