Product features
1 / 2

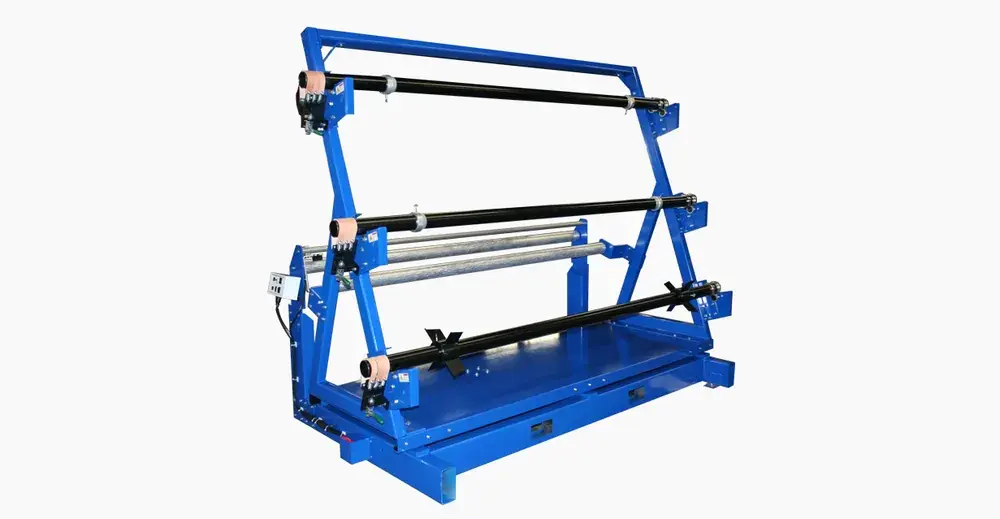

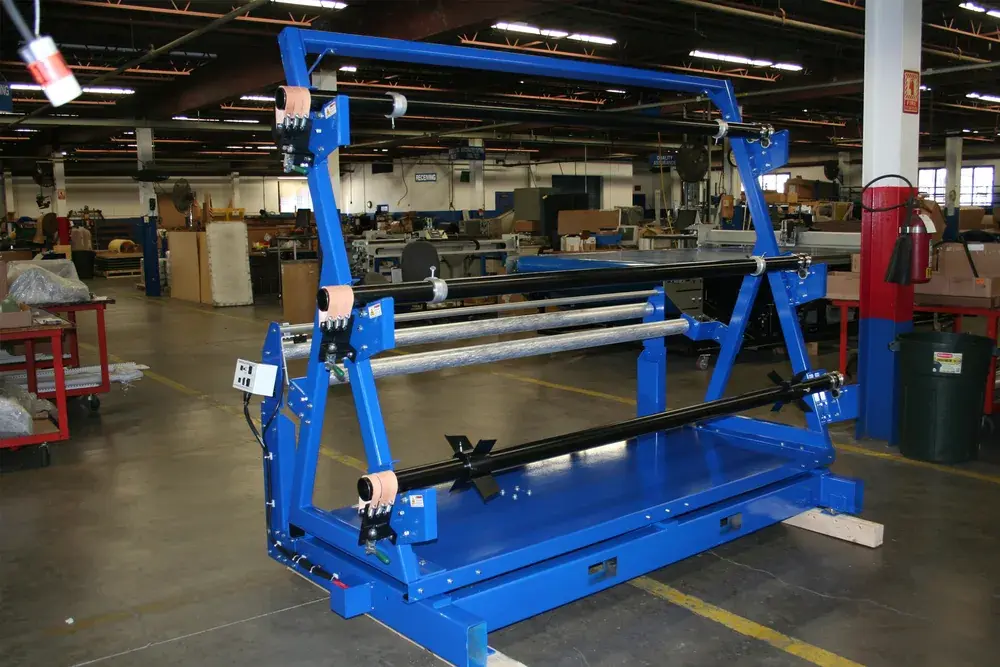

The Roll Stand System allows the user to easily handle rolled goods for spreading onto the cutting system, maintaining precise alignment of each ply with a photo-electric edge control unit. Many configurations and styles available.
Infra-red edge control sensors to detect edge of material
Optional 4th bar available
Three sets of cones recommended
Bar options include frozen, solid or expandabar
Specifications
| Width | 66 in. (1.7m) 72 in. (1.8m) 78 in. (2.0 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. |
|---|---|
| Standard Weight Capacity | 2,000 lbs. (907 kg) 750 lbs. per bar (340kg) |
| Maximum Roll Diameter | 20 in. (51 cm) |
| Power Requirements | 110V or 220V, 1phase |
