Product features
1 / 2

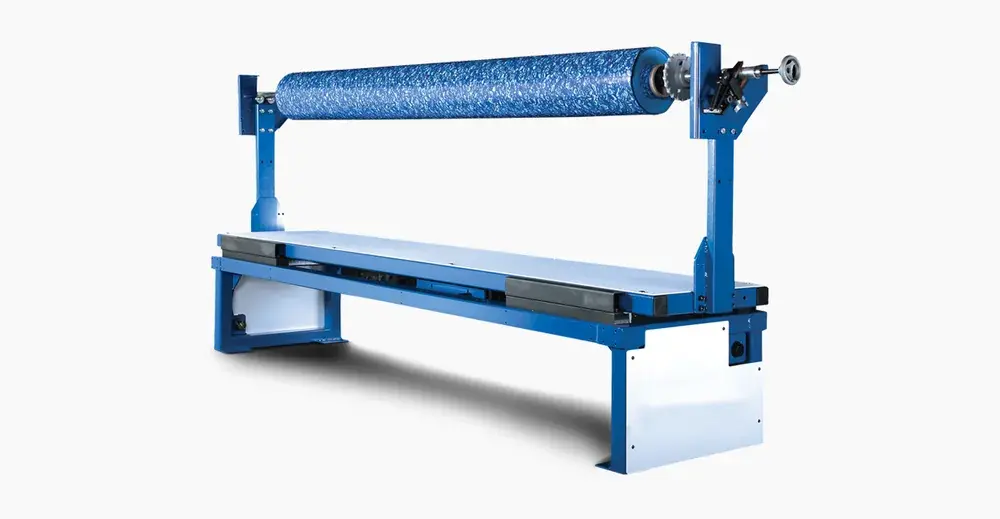

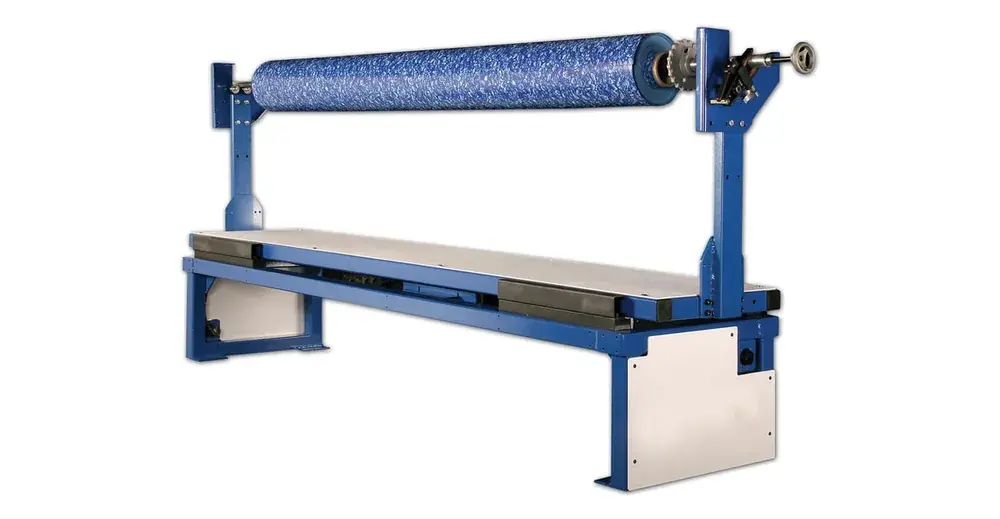

The Roll Stand System allows the user to easily handle rolled goods for spreading onto the cutting system, maintaining precise alignment of each ply with a photo-electric edge control unit. Many configurations and styles available.
Widths available from 60” (1.52m) in 6” (15.2cm) width increments
Optional cones and core stops available
Expandabar available for different size cores
Flat fold system suitable for material on skids
Single or multiple unit configuration for feeding several layers of material
Not recommended for stretchy fabric or vinyl
Custom configurations, widths and roll weight capacities available
Specifications
| Width | 66 in. (1.7m) 72 in. (1.8m) 78 in. (2.0 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. |
|---|---|
| Standard Weight Capacity | 300 lbs. (136 kg) |
| Maximum Roll Diameter | 24 in. (61 cm) Custom-built systems available for up to 48 in. (1.2m) diameter rolls |
| Power Requirements | 110V at 15 amps, 1 ph 220V at 8 amps, 1 ph |
