Digital Knife Cutting Systems
GBOS
VC9-1820SSCCD

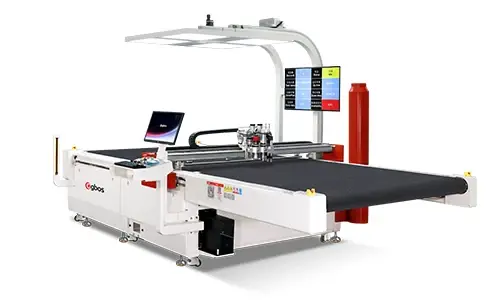

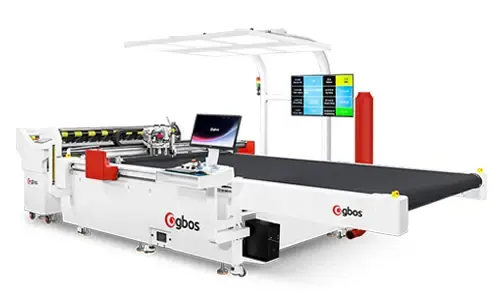

MULTIFUNCTIONAL SINGLE-PLY DIGITAL CUTTING MACHINE
Product features
Multifunctional single-layer digital blade cutting system, a faster digital cutting system for small batches and irregular production.
Suitable for “grid and strip cutting, digital printing material cutting, dark pattern material cutting”.
Can be equipped with V punch, circular punch, brush and other devices as needed. Optional dual-head asynchronous cutting system.
Specifications
| MODEL | 4 punching device | 4 punching device | 4 punching device | 4 punching device |
|---|---|---|---|---|
| Sectors | AI SCCD VisionScan sys+Digital Cutting. | AI SCCD VisionScan sys+Double-head Asynchronous Cutting. | With AI SSCCD VisionScan sys for stripes, dots, etc textiles. | With AI SSCCD VisionScan sys for stripes, dots, etc textiles. |
| Description | 1900*2000MM | 1900*2000MM | 1490*1650MM | 1800*2000MM |
| Processing Area(mm) | 800MM/s | 800MM/s | 1000MM/S | 800MM/S |
| Max cutting speed | 5000MM/s² | 5000MM/s² | 3000-5000MM/s² | 3000-5000MM/s² |
| Acceleration | 13200W | 21300W | 12200W | 21300W |
| Gross Power | 2200KG | 2260KG | 1700KG | 2800KG |
| Weight | 5510*3520*2800MM | 5760*3520*2670MM | 5110*3200*2280MM | 6930*3380*2765MM |
| Measurement (L×W×H) | Windows10/11, AI, PLT, DXF | Windows10/11 AI，PLT，DXF | Windows 7/8/10/11，AI，PLT，DXF，DST，DSB | Windows 10/11，AI，PLT，DXF，DST，DSB |
Data sheets, photos, videos and specifications: GBOS.
