Product features
Customary needle designations: 1738, 16X257, 16X231, 71X1, DLX1, 287 WH, DBX257, 14:25. Recommended for: Woven fabrics, Thin leather.
Customary needle designations
1738, 16X257, 16X231, 71X1, DLX1, 287 WH, DBX257, 14:25
Further point designations
SET, RD

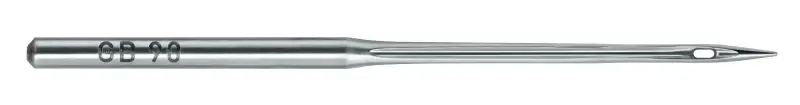

Needle form description
Straight needle with single groove and scarf
Technical sewing application
Double lock stitch
Recommended for
Woven fabrics, Thin leather
Specifications
| Needle system | DBX1, DBX1 MR, DBX1 SAN 10, DBX1 SAN 10 XS |
|---|---|
| Point style | FFG, FG, G, R, RS, SD, SKL |
| Needle size | 55 – 200 Nm |
| Coating | Chromium, GEBEDUR™ |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Overall length | 37.4 – 40 mm |
| Shank length | 11.5 – 16.5 mm |
| Length butt to eye | 33.8 – 33.9 mm |
| Shank diameter | 1.6 – 2.0 mm |
