Product features
Recommended for: Fine woven fabrics, Leather, Artificial leather.
Further point designations
SET, RD

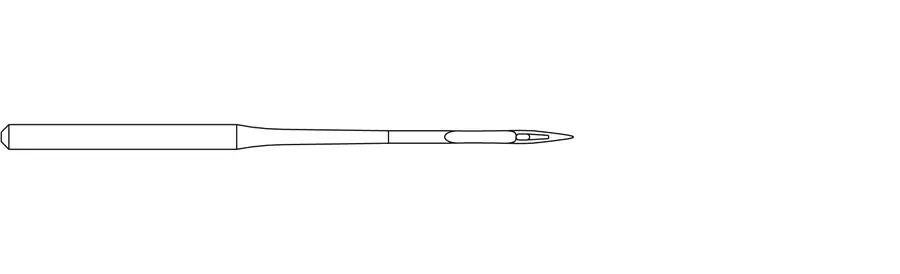

Needle form description
Straight needle with single groove and scarf
Technical sewing application
Single and multihead embroidery
Recommended for
Fine woven fabrics, Leather, Artificial leather
Specifications
| Needle system | DB X K5, DBXK5, DBXK5 KK, DBXK5 KK FM, DBXK5 LGR, DBXK5 SAN 1, DBXK5 SS |
|---|---|
| Point style | FFG, FG, R, RG, SD, TR |
| Needle size | 60 – 110 Nm |
| Coating | Chromium, GEBEDUR™ |
| Technical sewing application | Single and multihead embroidery |
| Stitch type class | 300 |
| Overall length | 37.3 – 38.3 mm |
| Shank length | 11.5 – 16.5 mm |
| Length butt to eye | 33.8 – 33.9 mm |
| Shank diameter | 1.6 mm |
Catalogue
Groz-Beckert does not publish a separate leaflet for the DBXK5. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Groz-Beckert.
