Product features
Customary needle designations: FLX 118 B, FLX 118 GBS, SY 7061, 24:09. Recommended for: Fine knitwear, Woven fabrics, Thin leather.
Customary needle designations
FLX 118 B, FLX 118 GBS, SY 7061, 24:09
Further point designations
STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU

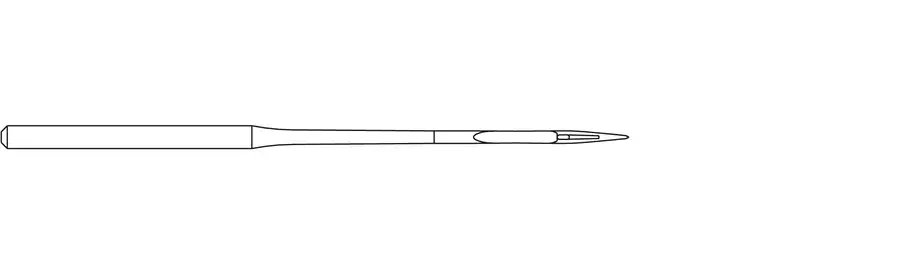

Needle form description
Straight needle with single groove and scarf
Technical sewing application
Flat seams
Recommended for
Fine knitwear, Woven fabrics, Thin leather
Specifications
| Needle system | UY 118 GAS, UY 118 GBS, UY 118 GHS, UY 118 GKS, UY 118 SAN 10 |
|---|---|
| Point style | FFG, RG, SKL |
| Needle size | 60 – 100 Nm |
| Coating | Chromium, GEBEDUR™ |
| Technical sewing application | Double chain stitch, Flat seams |
| Stitch type class | 400, 600 |
| Overall length | 41.1 mm |
| Shank length | 16.5 mm |
| Length butt to eye | 36.6 mm |
| Shank diameter | 1.5 mm |
Catalogue
Groz-Beckert does not publish a separate leaflet for the UY 118. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Groz-Beckert. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
