Groz-Beckert
UY 128
Cover chain stitch, Double chain stitch
Product features
Customary needle designations: UY 128 GBS, UY128GBS, UY128GAS, TVX3 J, DVXG9 J, UY 126 GHS, 149X3 SES, MY 1044 SES, 1280 SES, SY 8640, 38:00. Recommended for: Medium-weight knitwear and woven fabrics.
Customary needle designations
UY 128 GBS, UY128GBS, UY128GAS, TVX3 J, DVXG9 J, UY 126 GHS, 149X3 SES, MY 1044 SES, 1280 SES, SY 8640, 38:00
Further point designations
SES, L BALL, J BALL, SIN, NYR, BPL, TB, B, R K
Needle form description

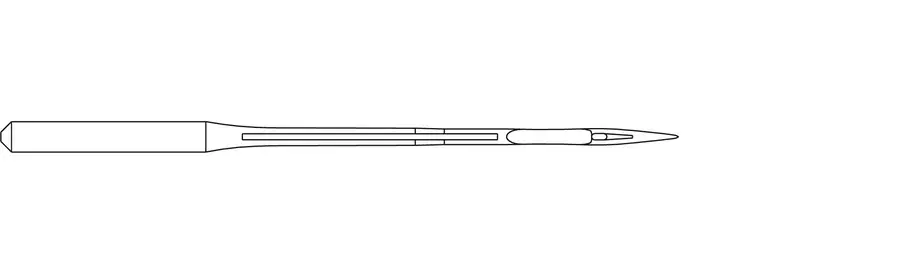

Straight needle with double groove and scarf
Technical sewing application
Double chain stitch, Cover chain stitch
Recommended for
Medium-weight knitwear and woven fabrics
Specifications
| Needle system | UY 128 GAS, UY 128 GAS MR, UY 128 GBS, UY 128 GHS, UY 128 GLS, UY 128 GS, UY 128 KK SAN 10, UY 128 KK SAN10, UY 128 SAN 10, UY 128 SAN 10 XS, UY 128 SAN 6 |
|---|---|
| Point style | FFG, FG, RG |
| Needle size | 55 – 170 Nm |
| Coating | Chromium, GEBEDUR™ |
| Technical sewing application | Cover chain stitch, Double chain stitch |
| Stitch type class | 400, 600 |
| Overall length | 44.5 – 45.2 mm |
| Shank length | 12.5 – 16.5 mm |
| Length butt to eye | 38.9 mm |
| Shank diameter | 2.0 mm |
Catalogue
Groz-Beckert does not publish a separate leaflet for the UY 128. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Groz-Beckert. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
