Consew 228R-11-1

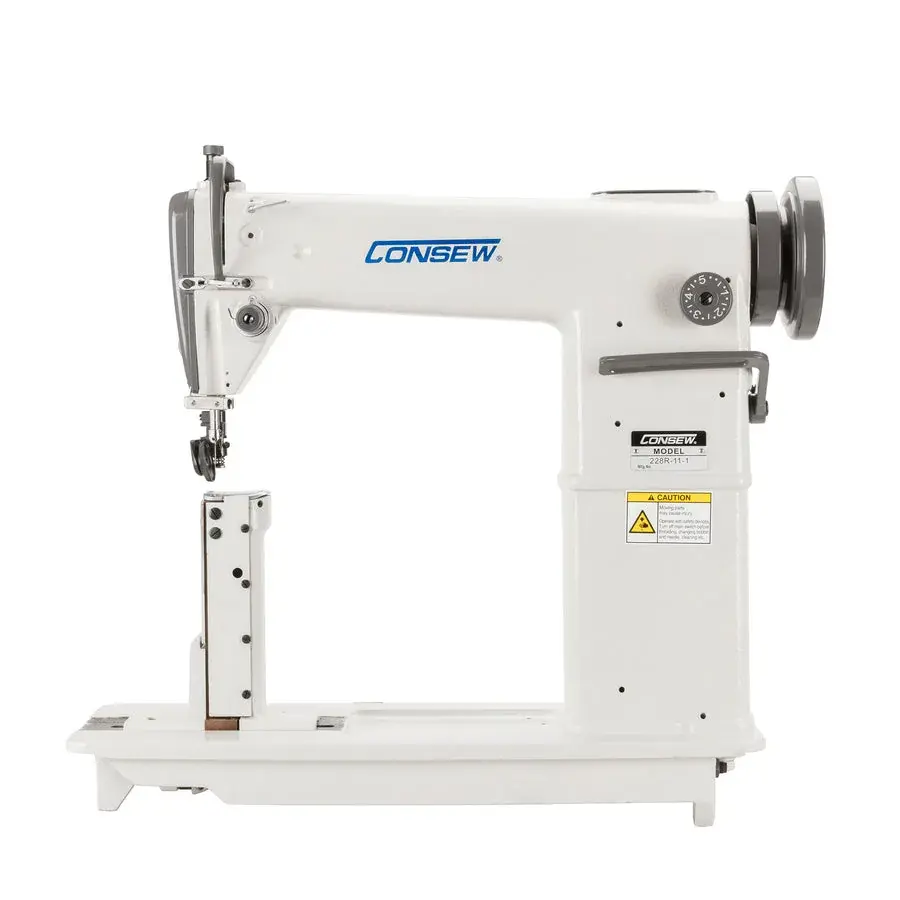

The 228R-11-1 is a high-speed, post-type, single-needle lockstitch machine with drop feed, a vertical axis hook, and a roller presser foot for precise stitching.
Product features
1 / 7
The 228R-11-1 is a high-speed, post-type, single-needle lockstitch machine with drop feed, a vertical axis hook, and a roller presser foot for precise stitching. Designed for light to medium-weight fabrics, leather, vinyl, and coated materials, it's ideal for raincoats, underwear, corsets, and footwear applications. Features include reverse feed and the ability to handle sharp corners and tight curves.
With: Vertical Axis Hook, Roller Presser Foot, Reverse Feed
Applications
For sewing light and medium weight fabric, leather, vinyl, canvas and various laminated and coated materials
Designed for stitching articles such as raincoats, underwear, corsets, brassieres and similar products
Suitable for vamping, space stitching and tipping on shoes
Features
Vertical axis hook
Drop feed

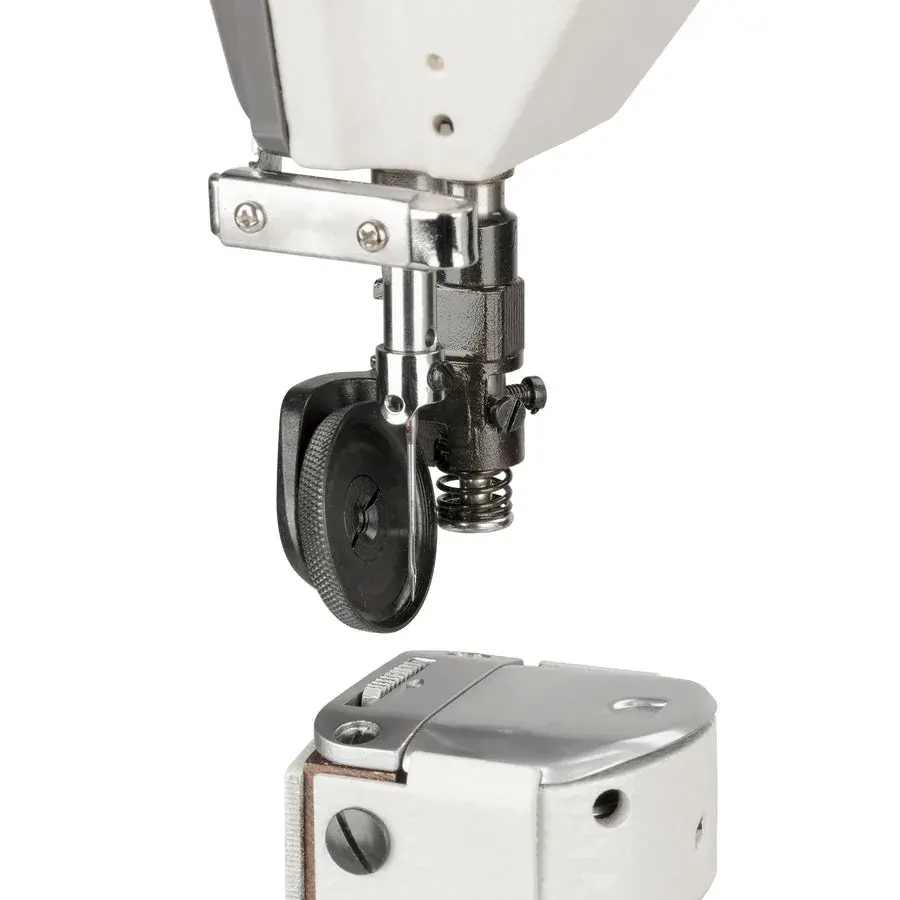

Roller presser foot allows for turning sharp corners and tight curves
Single needle
Stitches per minute: 3000*
Reverse feed
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 3000 |
| Clearance Under Presser Foot | 15/64" (6mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Needle | 135X7 |
| Bobbin | Pre-Wound G |
| Stitch Type | 301 |
| Needle Bar Stroke | 1 1/4" (32mm) |
| Hook | 81017910-00 |
| Post Height | 7" (178mm) |
| Work Surface | 1 7/8" x 2" (48mm x 75mm) |
Catalogue
The Consew 228R-11-1 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
