Consew

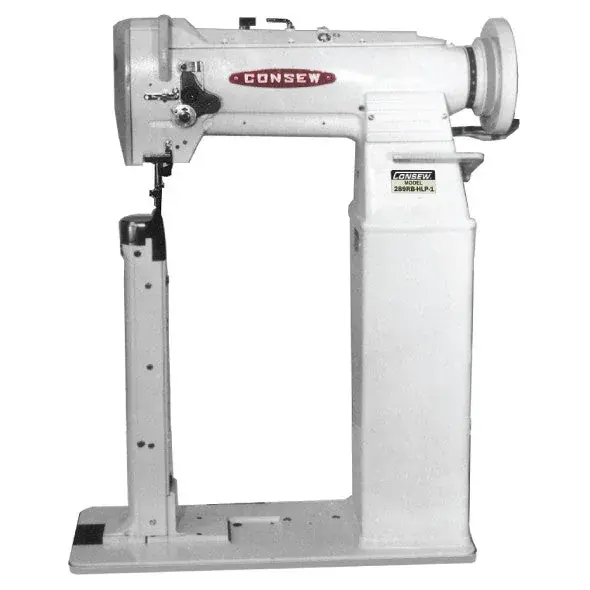

Consew 289RB-HLP-2
High Speed, Extra High Post Type, Single Needle, Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstitch Machine
Product features
High Speed, Extra High Post Type, Single Needle, Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstitch Machine
With: Centra-Lube Semi-Automatic Lubrication System, Large Vertical Axis Rotary Hook and Bobbin, Reverse Feed, Safety Clutch
Applications
For sewing medium to heavy weight fabrics, leather, canvas, vinyl, synthetics and various coated and laminated materials
For stitching uneven, hollow, tubular and curved articles
Designed for stitching such products as boots, shoes, gloves, luggage, handbags, overalls, raincoats, bags, umbrellas, awnings, covers, tarpaulins, tents, sports and camping equipment, wearing apparel, outdoor clothing, etc.
Suitable for edge stitching operations
Features
Centra-Lube® semi-automatic lubrication system
Oil fed take-up
Extra high post
Safety clutch prevents the hook from being damaged
Large bobbin allows for longer operation
Large vertical axis hook allows for use of thick thread and therefore ornamental stitching can be obtained
Compound feed, walking foot mechanism assures even feeding of material
Reverse stitching
Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2200 |
| Clearance Under Presser Foot | Hand 5/16" (8.5mm), Foot 5/8" (16mm) |
| Stitch Length | 4 s.p.i. (6.2mm) |
| Needle | 135 x 17 |
| Bobbin | Pre-Wound S and U |
| Bed Size | 7" x 20 3/8" (178mm x 518mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 1 13/32" (35.3mm) |
| Hook | 14119 |
| Post Height | 17 7/16" (443mm) |
| Work Surface | 2 1/8" x 2" (54mm x 51mm) |
