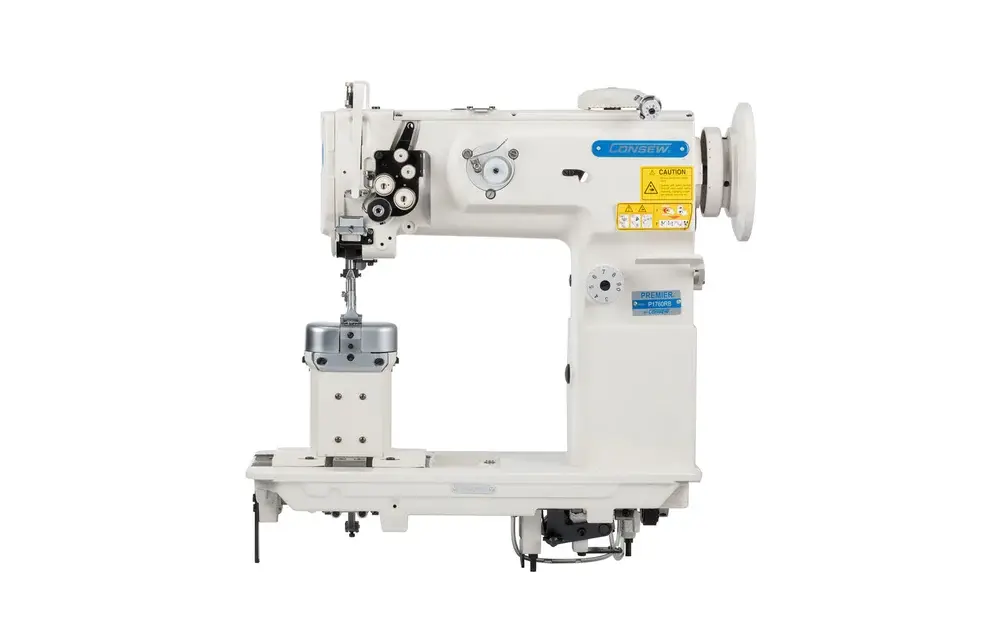

Consew P1760RB

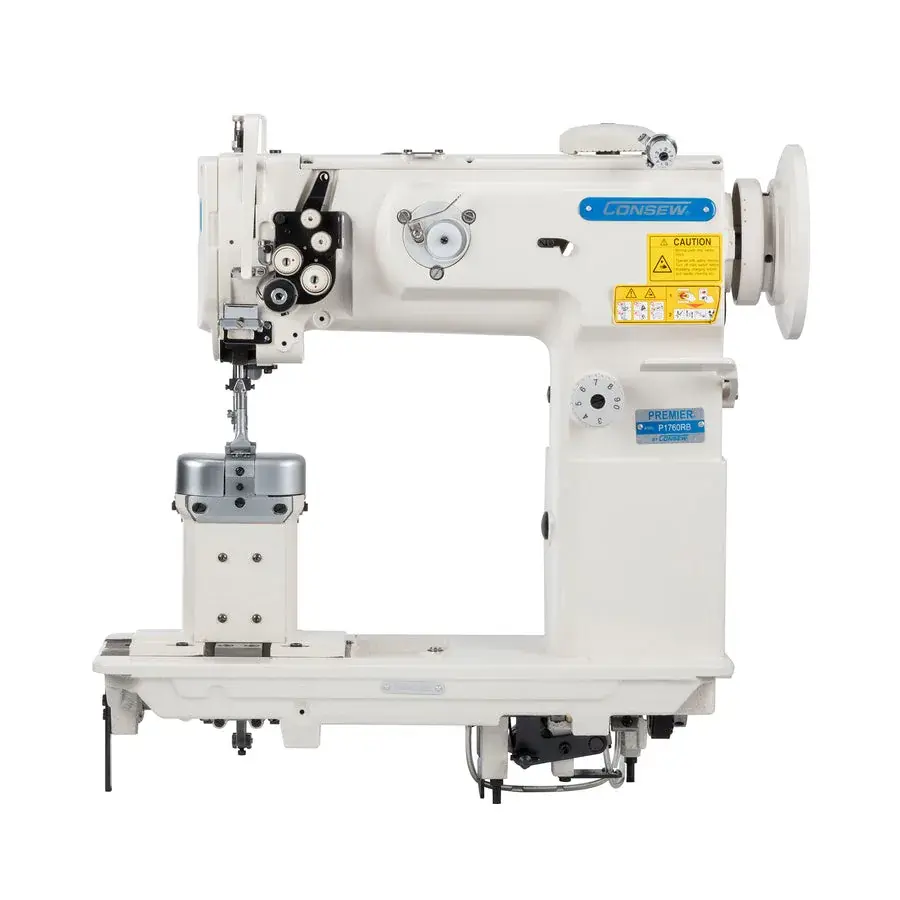

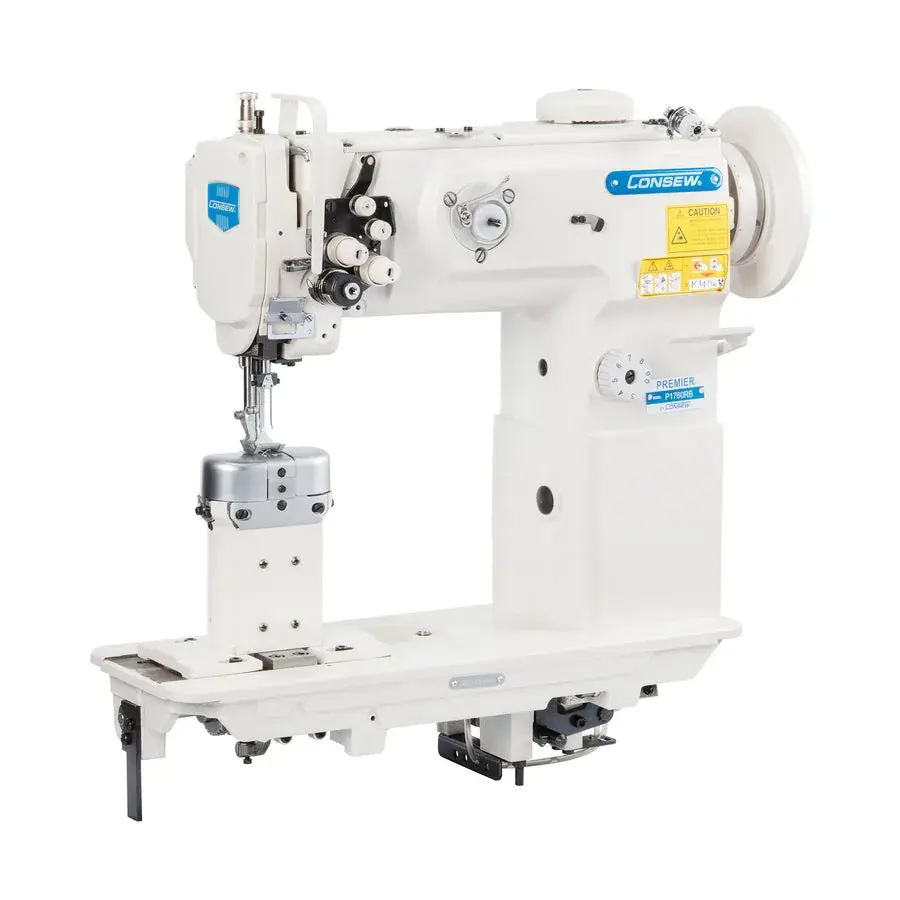

The Consew P1760RB is a high-performance, two-needle postbed walking foot lockstitch machine specifically engineered for demanding applications in the automotive, marine, leather, canvas…
Product features
1 / 8

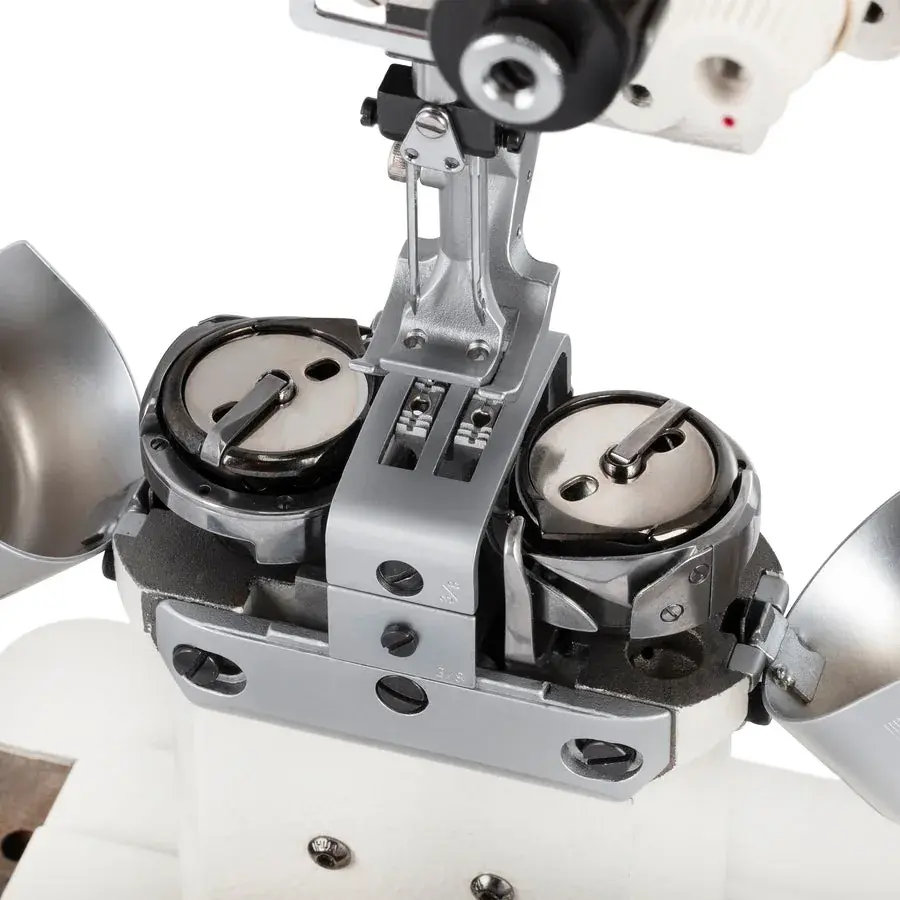

The Consew P1760RB is a high-performance, two-needle postbed walking foot lockstitch machine specifically engineered for demanding applications in the automotive, marine, leather, canvas, and general upholstery sectors. This model features a large workspace and utilizes two large top-loading Style U bobbins with vertical access hooks, ensuring efficient operation and longer sewing cycles with fewer interruptions.

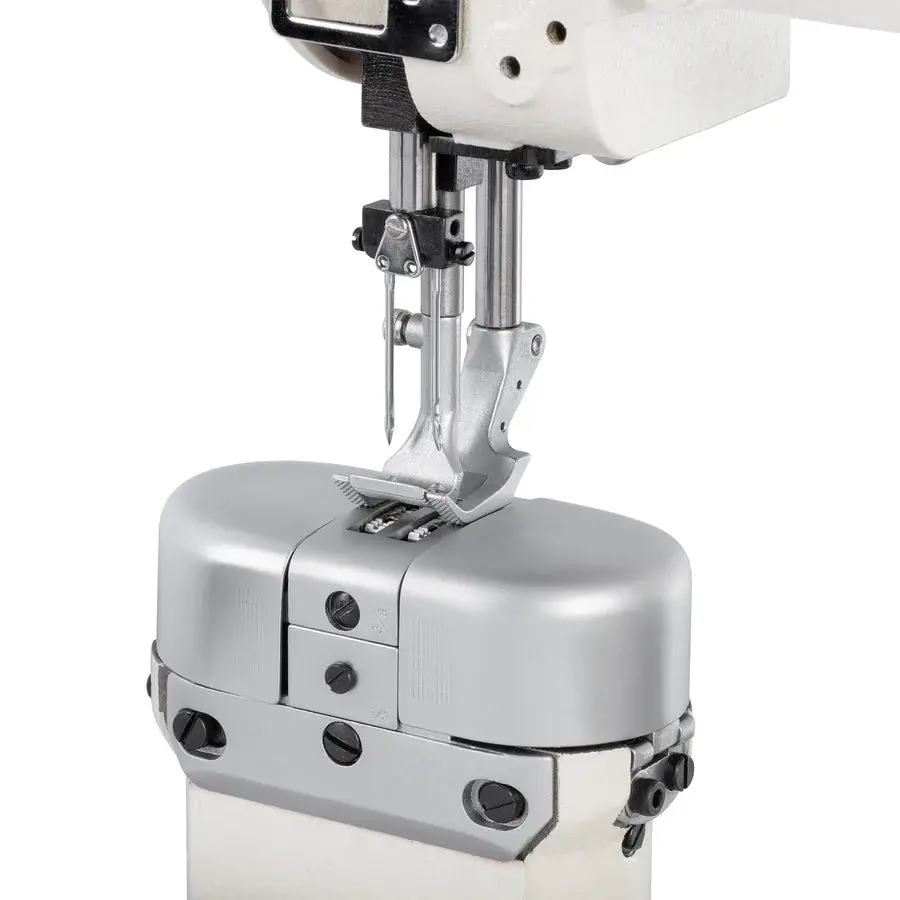

To handle complex materials with precision, the machine is equipped with a walking foot feeding system and an adjustable climbing device that maintains consistent performance across varying fabric thicknesses. It operates at speeds up to 2,500 SPM , offering a maximum stitch length of 9mm and a high 16mm presser foot lift via knee control.
P1760RB-(N) with pneumatic footlift and reverse.
P1760RB-7DD with automatic thread trimmers, direct drive motor, pneumatic footlift and reverse.
Specifications
| Speed maximum | 2500 spm * |
|---|---|
| Needles | 135 x 17 (DPX17) sizes 19-23 |
| Standard Needle Gauges | 1/4, 5/16, 3/8, 1/2 |
| Bobbins | Style U |
| Stitch Length; Max | 9mm Adjustment By Dial |
| Presser Foot Lift | By Hand: 9 mm / By Knee: 16mm |
| Lubrication | Fully Automatic |
