Consew

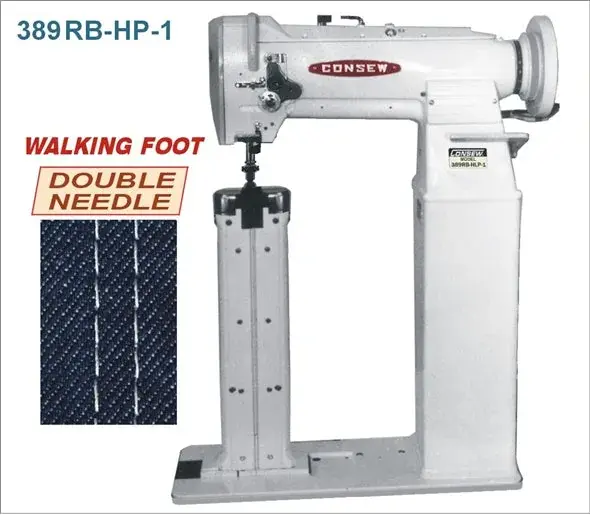

Consew 389RB-HP-1
High Speed, Extra High Post Type, Two Needle , Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstitch Machine
Product features
High Speed, Extra High Post Type, Two Needle , Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstitch Machine
With: Centra-lube® Semi-Automatic Lubrication System, Large Vertical Axis Rotary Hooks and Bobbins, Reverse Feed and Safety Clutch
Features
Centra-Lube® semi-automatic lubrication system for efficient oil distribution
Oil-fed take-up to ensure smooth operation
Extra high post design for sewing tubular or bulky items
Two-needle machine, with 1/4" gauge standard (other gauges available: 3/16" – 1")
Safety clutch prevents damage to hooks
Large bobbins for extended operation times
Large vertical axis hooks allow for the use of thick thread, enabling ornamental stitching
Compound feed, walking foot mechanism for even material feeding
Reverse feed for securing stitches
Simple foot adjustment for sewing varying material thicknesses
Specifications
| Number of Needles | 2 (Double) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2200 |
| Clearance Under Presser Foot | Hand 5/16" (8.5 mm), Foot 5/8" (16 mm) |
| Stitch Length | 4.5 s.p.i. (5.5 mm) |
| Work Space | Surface 8" x 4" (54 mm x 101 mm) |
| Needle | 135 x 17 |
| Bobbin | Metal 15408, Prewound S and U |
| Bed Size | 7" x 20-3/8" (178 mm x 518 mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 1-13/32" (35.3 mm) |
| Available Needle Spacings | 3/16" – 1" (4.7 - 25.4mm) |
| Standard Needle Spacing | 1/4" (6.4mm) |
| Hook | 14505 |
| Post Height | 17-7/16" (443 mm) |
| Lubrication | Centra-Lube |
Catalogue
Consew does not publish a separate leaflet for the Consew 389RB-HP-1. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
