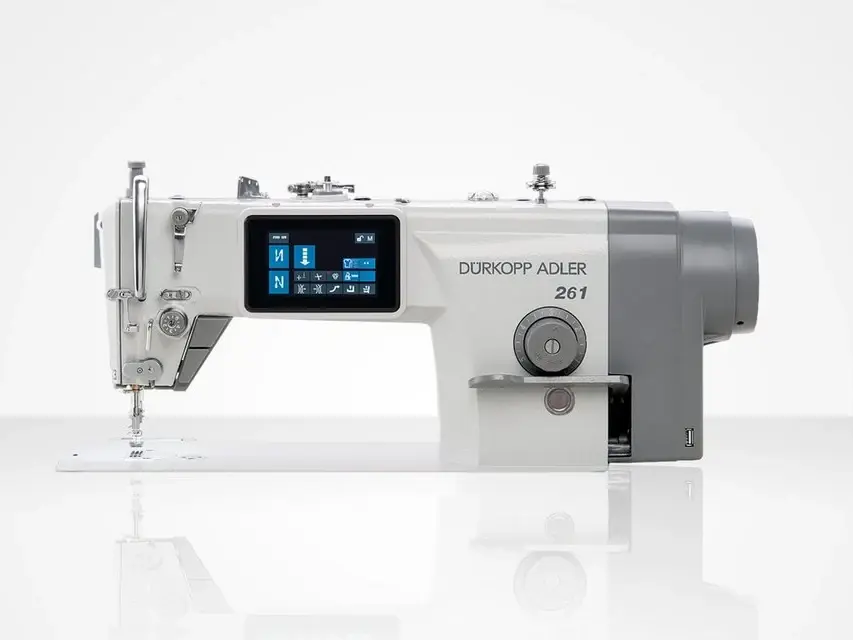

Dürkopp Adler
261
Single needle lockstitch machines with bottom feed
Product features

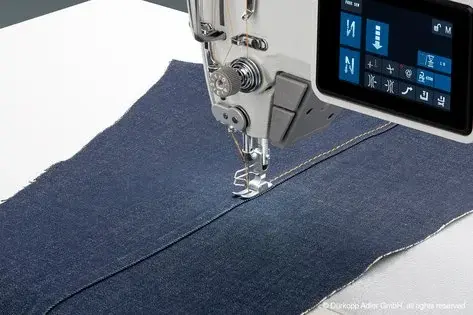

Whether light summer fabric or denim - many applications are possible
The single needle lockstitch machines are equipped as standard with bottom feed and automatic functions like sewing foot lift, backtacking and thread trimmer. Depending on the subclass, the machines are equipped with a special short thread trimmer, which enables a thread end length of max. 3 mm.The control panel is perfectly integrated into the machine arm. Therefore it is easily accessible for the operator and allows quick settings for individual sewing. The minimum oil lubrication of the needle bar and the hook ensures a clean sewing area and guarantees a long service life of the machines.
Your benefits at a glance
Minimum oil lubrication
Clean workplace due to minimal oil lubrication of the needle bar and the "Semi-Dry" lubrication concept
The minimum oil lubrication of the needle bar and the hook ensures a clean sewing area and guarantees a long service life of the machines.

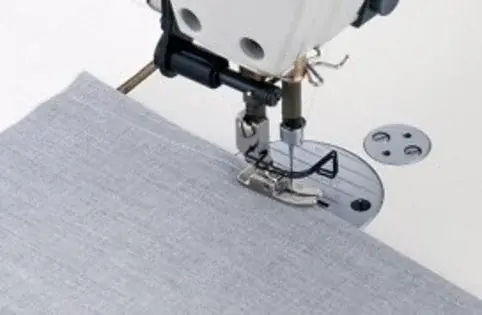

Thread nipper
Accurate seam beginning due to the standard thread nipper
The machine achieves an accurate seam beginning by means of the standard thread nipper. It pulls the thread ends to the left material side and thus achieves a clean right fabric side where the seam ends are not visible.
LED sewing field lighting
Integrated, dimmable LED sewing light as standard
The integrated, dimmable LED sewing field lighting supports visibility without creating shadows.

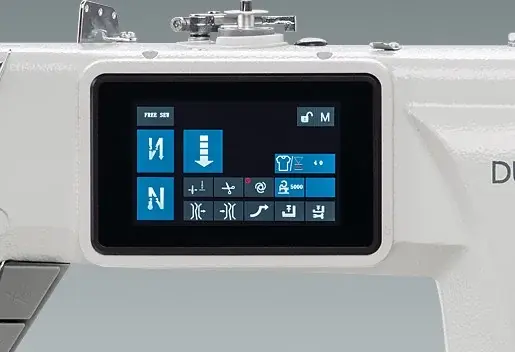

Integrated touch control panel for programming and calling up of seam programs (exclusively available for class 262-02)
The touch control panel is perfectly integrated into the machine arm (exclusively available for class 262-02). It is therefore easily accessible for the operator and allows quick settings for individual sewing.
USB-slot (can be used for charging)
The USB slot can be used e.g. for charging cell phones or other USB interfaces.
Automatic sewing foot lifting, backtacking and thread trimmer/ short thread trimmer with a thread end length of max. 3 mm (depending on the subclass)
High efficiency through energy-saving, integrated direct drive
Bilingual operation panel (english and chinese)
Convincing price-performance ratio
Examples of use
Assembly seams

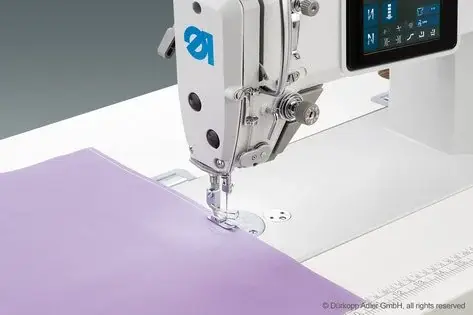

Topstitching

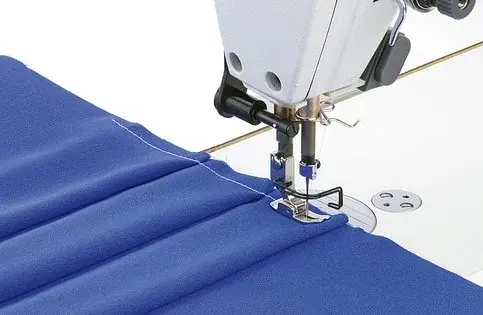

Stitch down pleats
Sewing darts
Specifications
| Model | 261-140342-01 | 261-140342-02 | 261-140345-01 | 261-140345-02 | 261-140542-01 | 261-140545-01 | 261-160362-01 | 261-160362-02 |
|---|---|---|---|---|---|---|---|---|
| Bottom feed | ● | ● | ● | ● | ● | ● | ● | ● |
| Clearance when lifting, electro magnetic [mm] max. | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| Clearance when lifting, with knee switch [mm] max. | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| DA-sewing drive | ● | ● | ● | ● | ● | ● | ● | ● |
| Flat bed machine with clearance C [mm] D [mm] | C= 285 / D = 130 | C= 285 / D = 130 | C= 285 / D = 130 | C= 285 / D = 130 | C= 263 / D = 128 | C= 263 / D = 128 | C= 285 / D = 130 | C= 285 / D = 130 |
| Horizontal hook, large (L, Ø 26 mm) | – | – | – | – | – | – | ● | ● |
| Horizontal hook, small (S, Ø 22mm) | ● | ● | ● | ● | ● | ● | – | – |
| Integrated LED sewing light with dimmer | ● | ● | ● | ● | ● | ● | ● | ● |
| Lockstitch (301) | ● | ● | ● | ● | ● | ● | ● | ● |
| Needle bar stroke [mm] max. | 31 | 31 | 31 | 31 | 31 | 31 | 35 | 35 |
| Needle size [Nm] max. | 70-90 | 70-90 | 70-90 | 70-90 | 70-90 | 70-90 | 90-110 | 90-110 |
| Needle system [Nm max.] * depending on the sewing equipment | 134 | 134 | 134 | 134 | 134 | 134 | 134 | 134 |
| Needle system A | DBx1 subclass 261-XXXXXX-01 A Needle size 16Nm | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Nominal voltage [V], [Hz] | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz |
| Operating panel with program control | ● | – | ● | – | ● | ● | ● | – |
| Packaging size (Length, Width, Heigh) [mm] | 713 / 250 / 558 | 713 / 250 / 558 | 713 / 250 / 558 | 713 / 250 / 558 | 713 / 250 / 558 | 713 / 250 / 558 | 713 / 250 / 558 | 713 / 250 / 558 |
| Program control, integrated touch panel | – | ● | – | ● | – | – | – | ● |
| Rated power [W] max. | 550 | 550 | 550 | 550 | 550 | 550 | 550 | 550 |
| Seam backtacking A = Automatic, Ma= Manual ***= programmable, stitch length 0,5-6,5mm | ● A | ● A | ● A | ● A | ● A | ● A | ● A | ● A |
| Semi-Dry-Machine Head | ● | ● | ● | ● | ● | ● | ● | ● |
| Sewing foot lift, automatic | ● | ● | ● | ● | ● | ● | ● | ● |
| Sewing Material SL = very light / L= light / LM = light to medium heavy / M= medium heavy / MS = medium heavy to heavy / S = heavy | L / M | L / M | L / M | L / M | L / M | L / M | M / MS | M / MS |
| Short thread trimmer [approx. length of remaining thread in mm] max | – | – | ● 3mm | ● 3mm | – | ● 3mm | – | – |
| Single needle | ● | ● | ● | ● | ● | ● | ● | ● |
| Stitch length [mm] max. | 5 | 5 | 5 | 5 | 5 | 5 | 7 | 7 |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 5.000 | 5.000 | 5.000 | 5.000 | 5.000 | 5.000 | 4.000 | 4.000 |
| Synthetic [Tkt.] max. * = Max. thread size upper thread: Tkt. 10/3, max. thread size Unterfaden: Tkt. 20/3 ** = Max. thread size upper thread: Tkt. 15/3; max. thread size Unterfaden: Tkt. 40/3 | 50 / 3 | 50 / 3 | 50 / 3 | 50 / 3 | 50 / 3 | 50 / 3 | 30 / 3 | 30 / 3 |
| Thread nipper for a neat seam beginning | ● | ● | ● | ● | ● | ● | ● | ● |
| Thread trimmer [approx. length of remaining thread in mm] max | ● 5mm | ● 5mm | – | – | ● 5mm | – | ● 5mm | ● 5mm |
| Weight, complete [kg] | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| Weight, sewing head [kg] | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 |
● Standard ○ Optional
