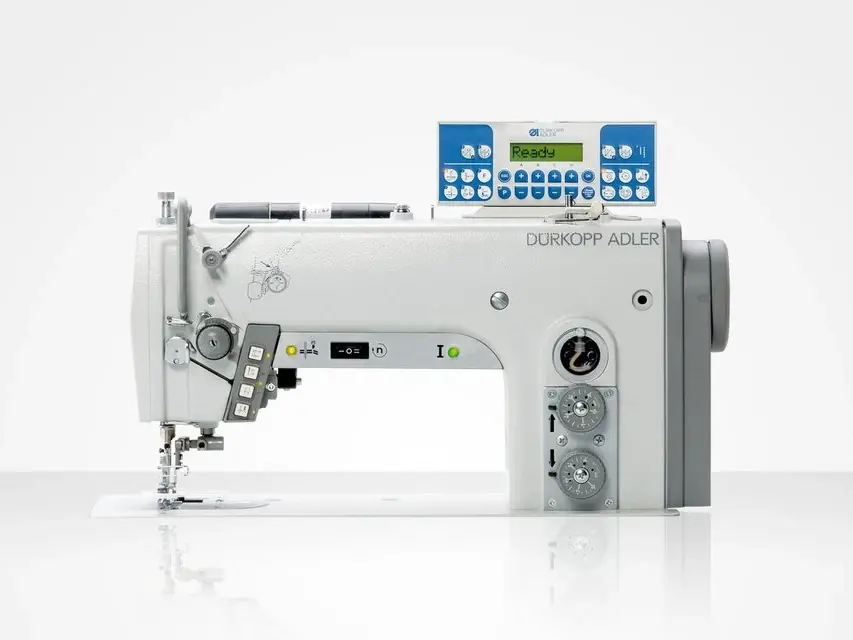

272

The special sewing machines for universal use

The top-class high-speed seamers of the 272 series convince of the advantages related to a flexible use, the perfect seam quality and its reliable performance. The state-of-the-art sewing kinematics produces excellent stitch formation even in very fine and extremely lightweight materials. Consistently perfect stitch formation is guaranteed even at maximum speed, with minimum thread tension and lowest thread stress. By means of the thread nipper the needle thread is pulled to the reverse side of the fabric at the seam beginning. This guarantees an always neat seam beginning.

Your benefits at a glance

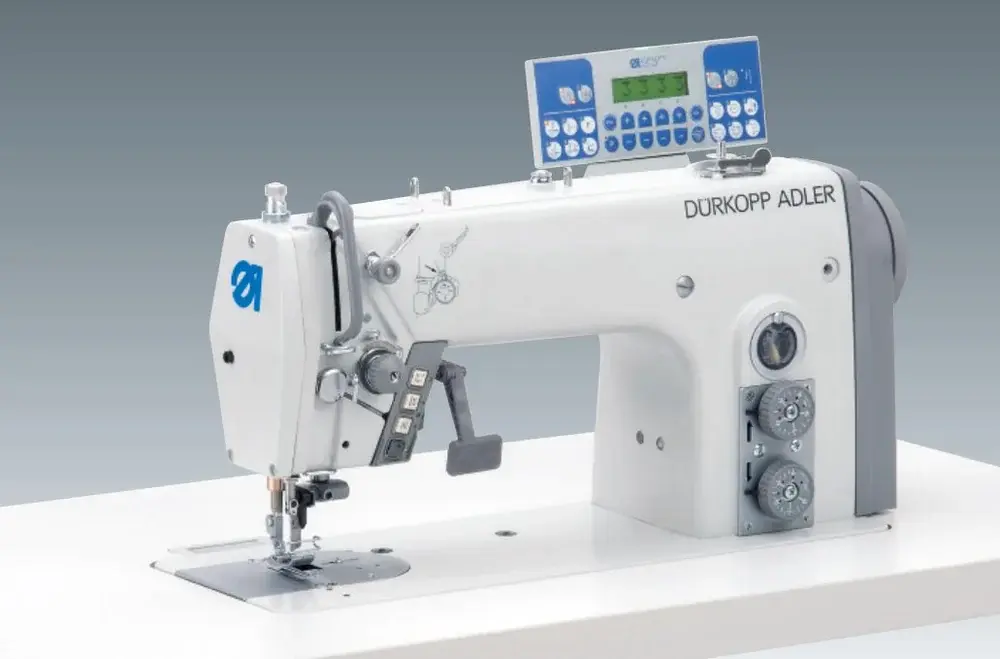

272-140342-01 – for universal use

Single needle lockstitch machine with bottom and needle feed, thread trimmer, sewing foot lift, seam backtacking, thread nipper for a neat seam beginning and integrated DC positioning motor incl. operating panel OP1000

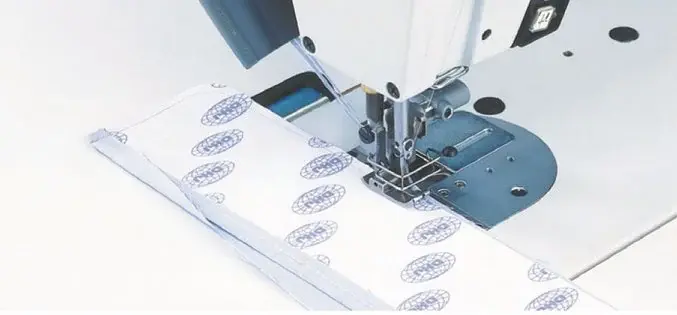

Thread clamp

Neat seam beginning on the upper side of the material by means of standard thread nipper (thread clamp)

The thread clamp enables a clean seam begin and end. It pulls the thread extensions to the back side of the material. Thus the right fabric side is clean without any thread ends, no thread need to cut on the right fabric side.

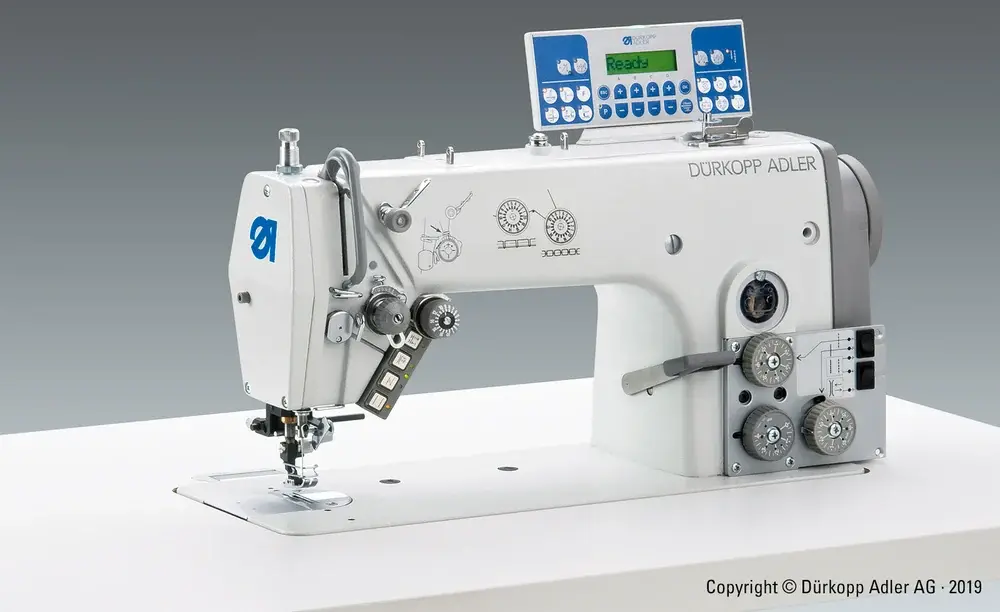

272-160362-01 – with large horizontal hook (+ 70%) and optionally “TRI-FLEX” device

Standard equipment like 272-140342-01. The optional TRIFLEX device allows calling up two different thread tensions and two different stitch length for a comfortable finishing of jacket / blazer pockets and decorative stitching.

High-quality DÜRKOPP ADLER control technology

DÜRKOPP ADLER control technology

The machines are equipped with "DAC classic" control system.

„Plug and Play“ - all machine parameters can be stored in the machine ID and are retained when the control system is changed.

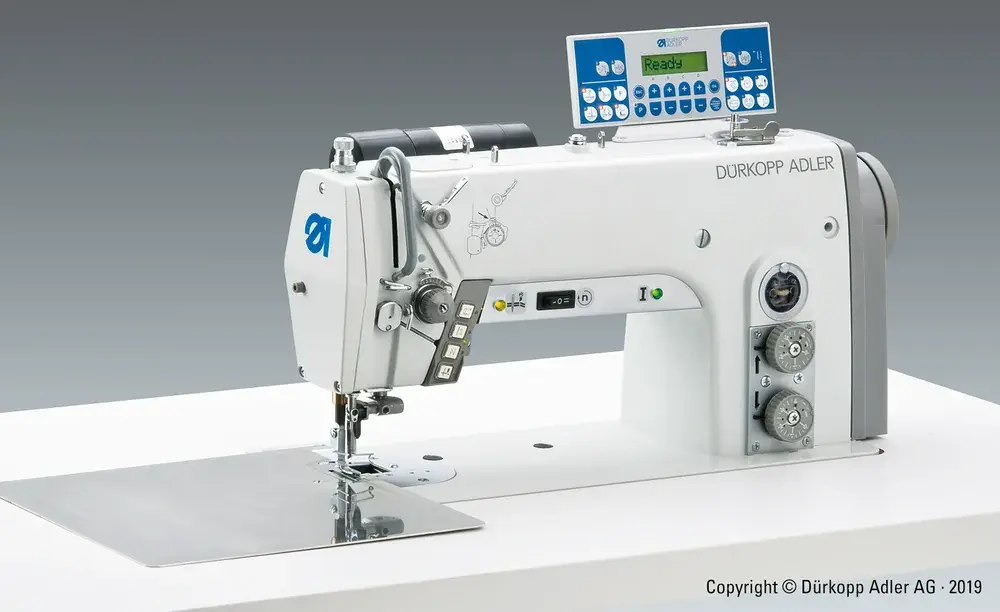

DAC classic control with control panel OP1000

• Electric strength (up to 400 V AC)

• Extended operating range (190 V AC to 250 V AC)

• Updatability via various storage media

• Special energy efficiency by optimum software parameters by means of machine ID technology

• Freely programmable functions and inputs

• Seam programming

Multi-function pushbutton bar for quick access

Ergonomically placed multi-function button for

• Edge trimmer ON/OFF

• seam backtacking

• needle up/down in the seam

• single stitch and backtack inversion

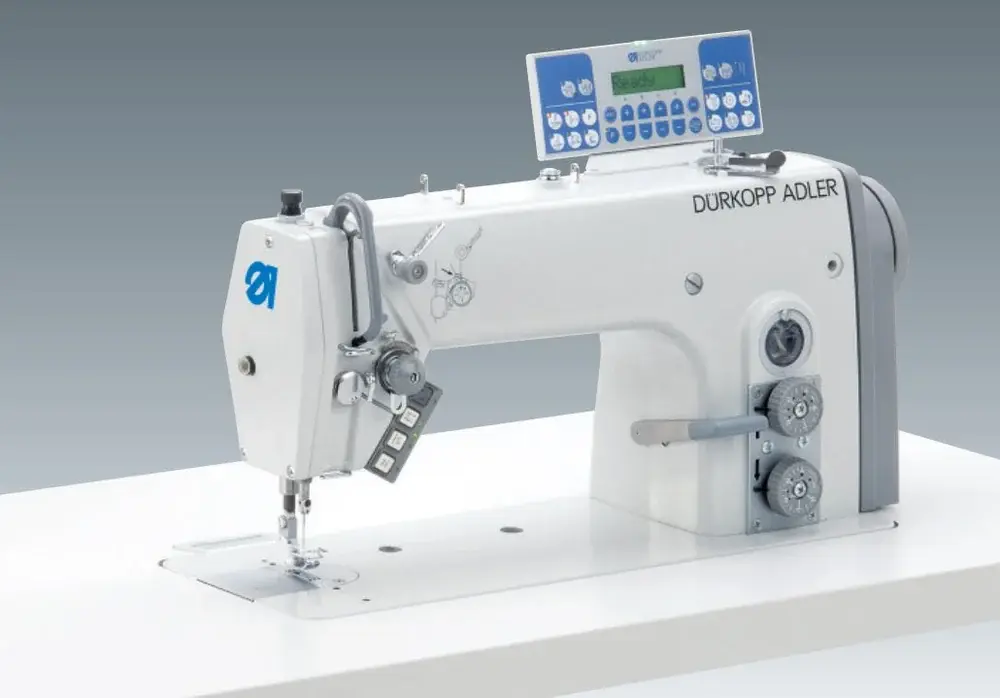

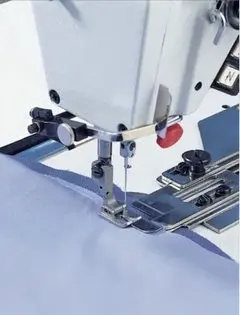

272-640642-01 – with shiftable edge trimmer

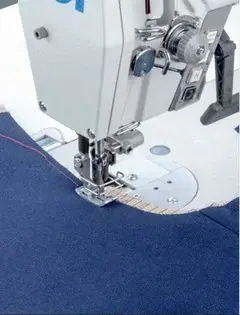

Standard equipment like 272-140342-01. The DC coupled edge trimmer is shiftable and lends itself for straight and slightly curved cutting edges.

272-740642-01 – with shiftable edge trimmer, driven by electric motor

Standard equipment like 272-140342-01. The edge trimmer driven by electric motor is flexible shiftable and selectable in two different speeds, depending on material quality.

• Universal application by means of a great variety of sewing equipment and attachments

• Optimum sewing results, even in finest materials

• Improved stitch formation and flat seams due to extremely low thread tensions

• Especially smooth and soft running

Examples of use

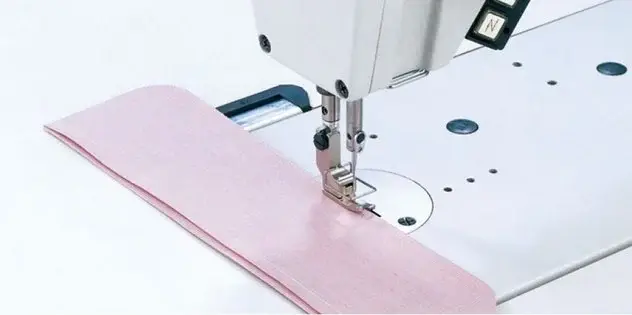

Runstitch and trim collars and cuffs

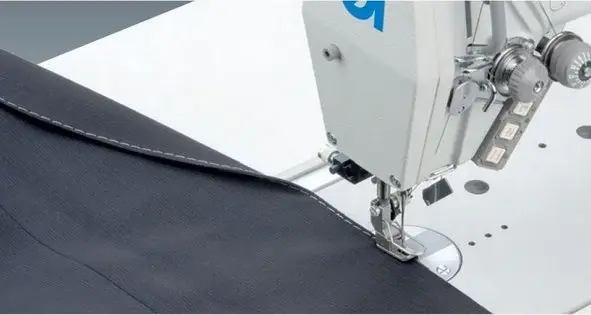

Topstitching seams

French sleeve seams

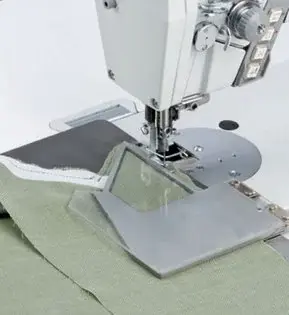

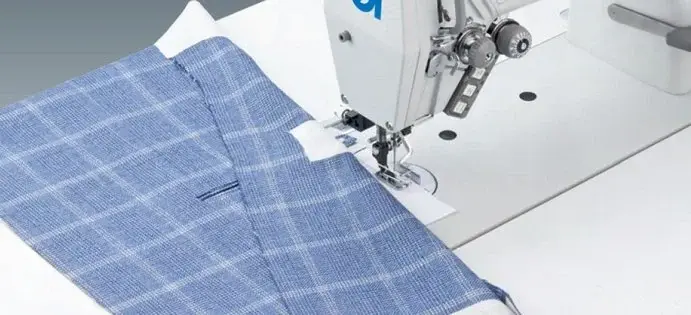

Finishing outside pockets of men’s jackets

Decorative stitching

Attaching and simultaneously cuttingthe chest piece

Runstitch and trim peak lapel and small parts

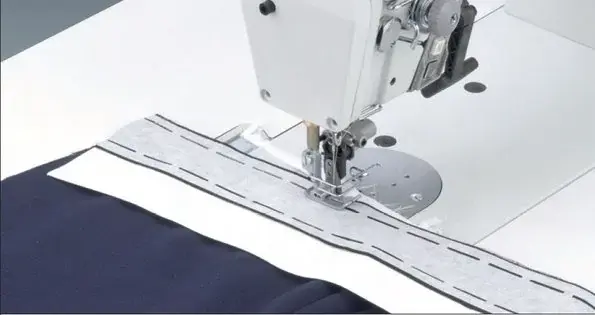

Attaching waistbands with simultaneously cutting the edges

● Standard ○ Optional
