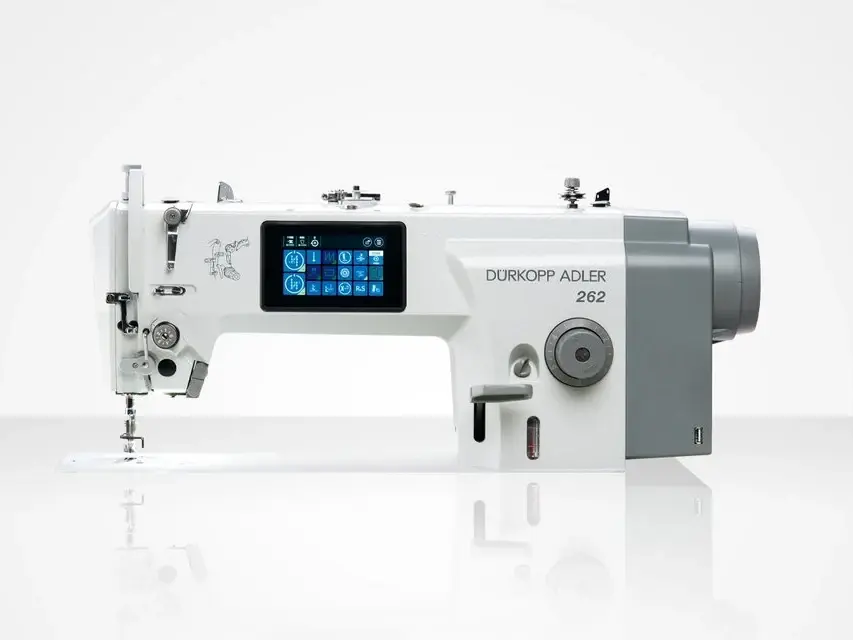

Dürkopp Adler
262
Single needle lockstitch machines with needle feed and integrated sewing drive
Product features
PRECISE SEAMS IN A WIDE RANGE OF APPLICATIONS
The single-needle lockstitch machines 262 are equipped as standard with needle and bottom feed and automatic functions such as sewing foot lift, seam backtacking and thread trimmer. They are ideal for precise seams and thus ideally suited for topstitching and general sewing work in light to medium-weight fabrics.
Your benefits at a glance

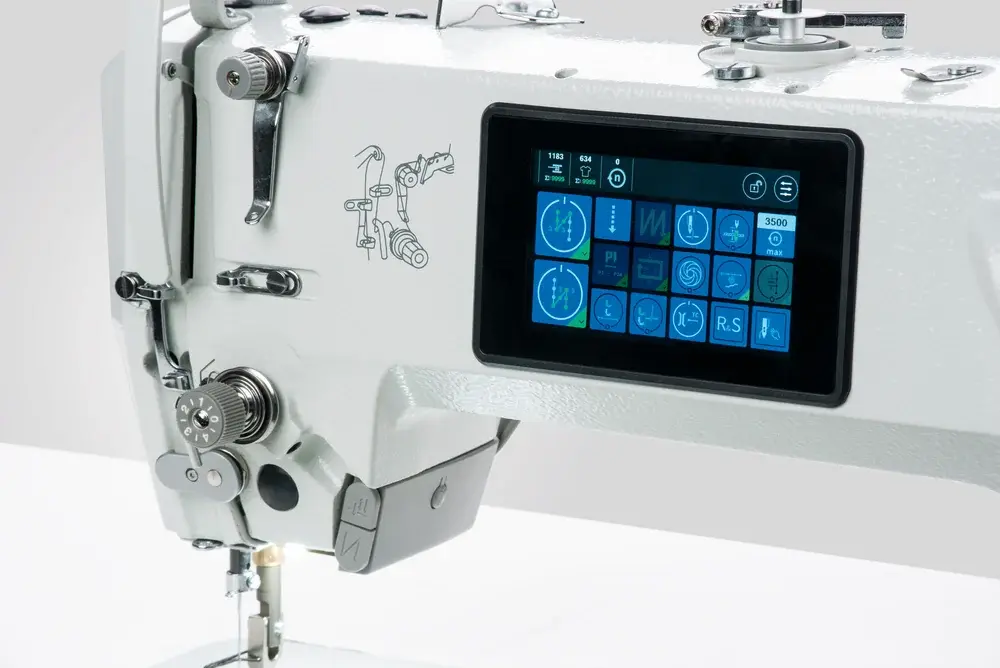

Touch screen control panel
Bilingual touch screen control panel (English and Chinese) integrated in machine arm
The control panel of the 262 allows intuitive and quick setting of the basic functions and programming of small seam sequences. It can be set in English and Chinese. In addition, a piece counter can be switched on.
Thread nipper
Accurate seam beginning due to the standard thread nipper
The machine achieves an accurate seam beginning by means of the standard thread nipper. It pulls the thread ends to the left material side and thus achieves a clean right fabric side where the seam ends are not visible.

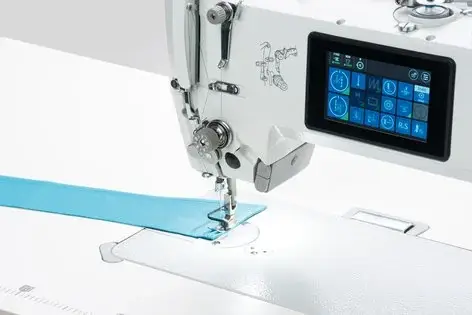

Needle feed for precise seams
The material is fed at the 262 when the needle is in the sewing material. This prevents the fabric layers from shifting. The needle feed thus ensures precise seams.
Electromagnetic thread clamping device for neat seam beginning
Semi-automatic processing allows sewing of material plies with unequal contours
Special sewing set for trousers side seams with side seam pockets
Automatic sewing foot lift, thread trimming and backtacking as standard
Two subclasses for processing of different materials
Automatic sewing foot lifting, backtacking and thread trimmer
Efficient work due to overlapping working method
Examples of use
Collar
Specifications
| Model | 262-140342-02 |
|---|---|
| Bottom feed and needle feed | ● |
| Clearance when lifting, electro magnetic [mm] max. | ● |
| Clearance when lifting, with knee switch [mm] max. | ● |
| DA-sewing drive | ● |
| Horizontal hook, small (S, Ø 22mm) | ● |
| Integrated LED sewing light with dimmer | ● |
| Lockstitch (301) | ● |
| Program control, integrated touch panel | ● |
| Seam backtacking A = Automatic, Ma= Manual ***= programmable, stitch length 0,5-6,5mm | 1 A |
| Semi-Dry-Machine Head | ● |
| Sewing foot lift, automatic | ● |
| Sewing Material SL = very light / L= light / LM = light to medium heavy / M= medium heavy / MS = medium heavy to heavy / S = heavy | M / MS |
| Single needle | ● |
| Stitch length Bottom feed; top puller feed [mm] max. | 5 |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 4.000 |
| Thread nipper for a neat seam beginning | ● |
● Standard ○ Optional
