Dürkopp Adler

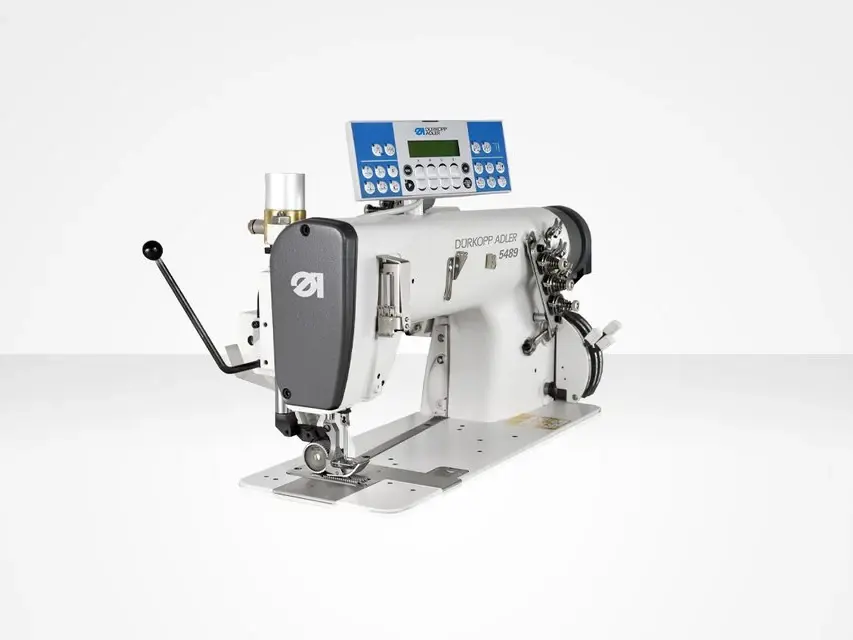

5489
Double-chainstitch special highspeed-seamer (crossline) with differential bottom-feed
Product features
DIFFERENTIAL SEWING
MACHINES OF THE 5489 SERIES OPERATE WITH PARALLEL-WORKING DIFFERENTIAL FEED AND PULLER FEED. THEY ARE PREDESTINATED FOR SEWING OF LEFT-HAND LAP-FELLED SEAMS. THE MACHINES ARE OFFERED EXCLUSIVELY IN THE ECO X VERSION WITH A HIGH NEEDLE BAR STROKE OF 33 MM (H).
Your benefits at a glance

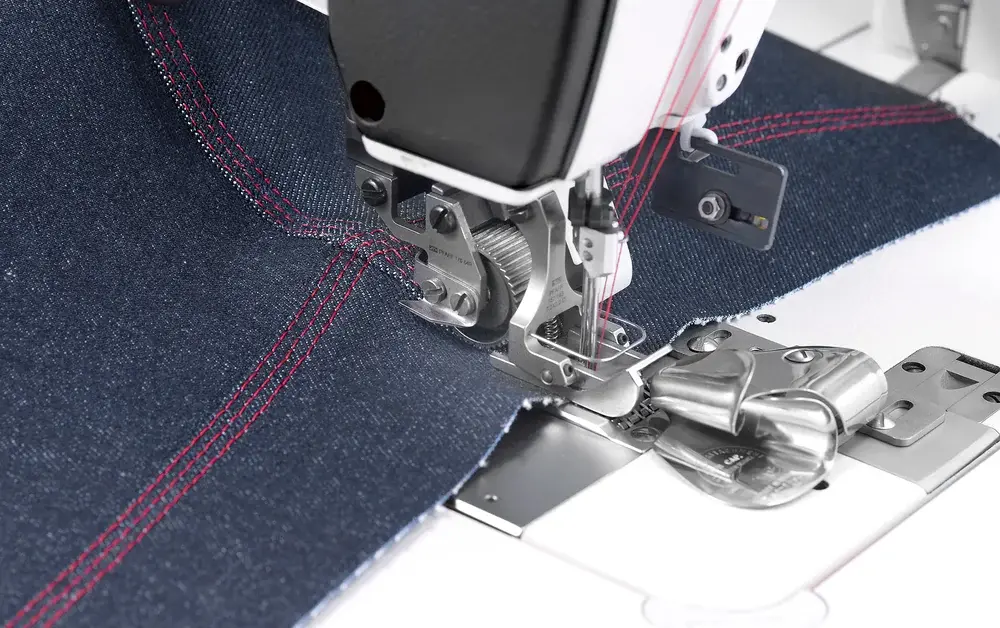

Top-driven puller feed mechanism
The top-driven puller feed mechanism (-748/26) operates directly behind the presser foot, ensuring optimal feeding performance even at maximum sewing speeds

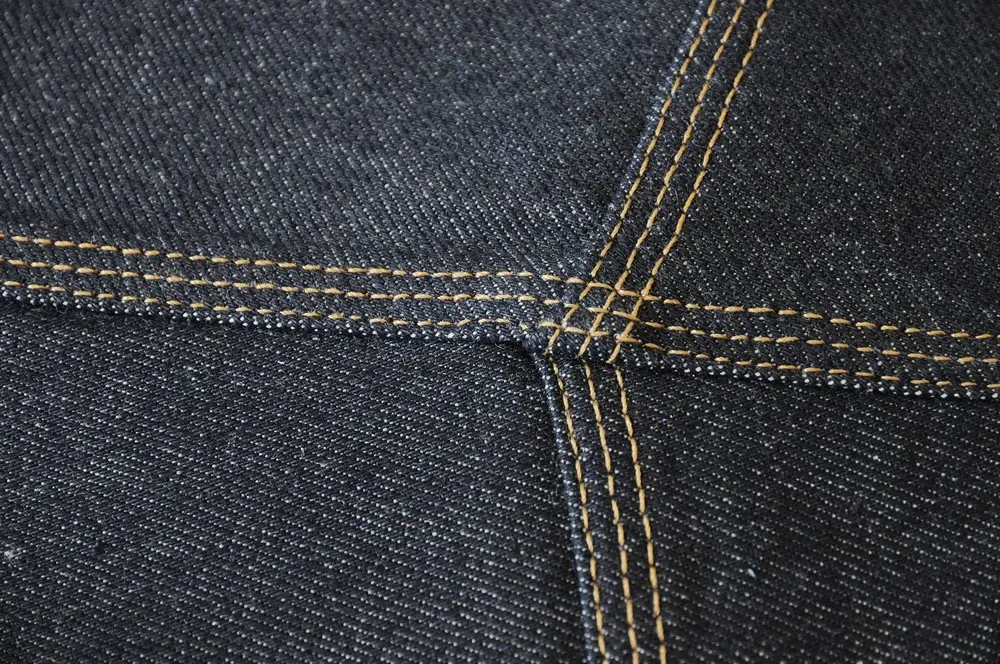

Perfect twin- and 3-needle seams
Efficient and distortion-free sewing of left-hand lap-felled seams
Stitch length regulator with integrated differential-feed control levers
By making the appropriate adjustments, the lower layer of fabric can be either stretched or gathered
Electro-pneumatic automatic foot lift and puller lift (-910/24)
Machine is available as twin-needle version (6.4 mm and 7.2 mm) or 3-needle version (3.2 x 3.2 mm and 3.6 x 3.6 mm)
Double-lap part set in 6.4 mm and 7.2 mm (option)
Examples of use

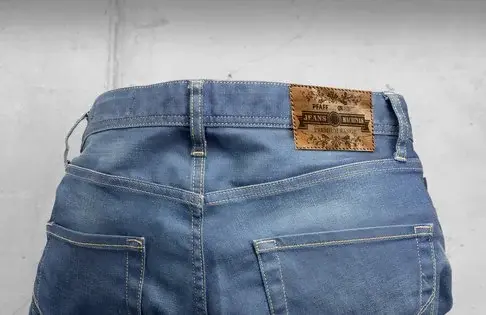

Felled-seam on a jeans trouser
Specifications
| Model | 5489 Eco X |
|---|---|
| Automatic presser foot lift | ● |
| Clearance when lifting [mm] max. | 7,0 mm |
| Double chainstitch (401) | ● |
| Electropneumatic puller lift | ● |
| Intermitted puller | ● |
| Needle system [Nm max.] * depending on the sewing equipment | 4463-35 |
| Nominal voltage [V], [Hz] | 230V, 50 / 60 Hz |
| Stitch length [mm] max. | 4,5 mm |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | max. 4.600 |
● Standard ○ Optional
