Dürkopp Adler
743
Darts and waist pleats for nice shaped clothing
Product features
Practical - Quick - Easy

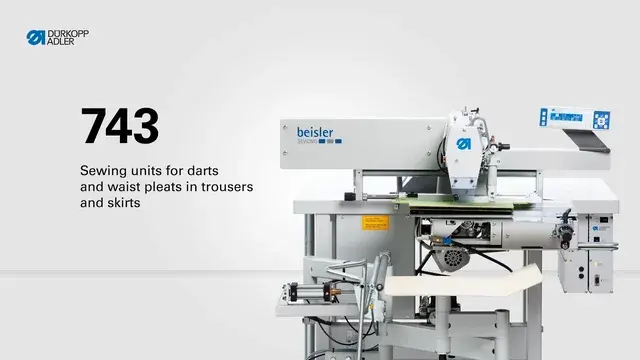

The practical and highly productive sewing unit 743 offers you an ideal solution for sewing darts and waist pleats in trousers and skirts. Convincing is its way of working with very short cycle times. Whether you prefer a double lockstitch 743-221-01 or a double chainstitch 743-121-01, the sewing unit gives you perfect seams.
Your benefits at a glance
Vacuum table for stretch materials

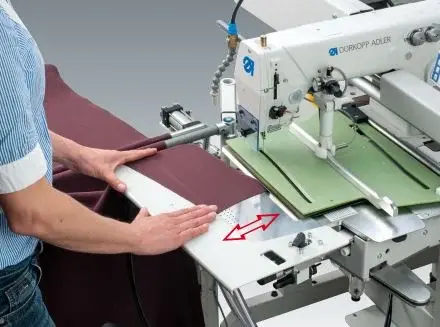

Tension-free loading of difficult to handle material
Vacuum table (0793 080000) for materials that are difficult to process, e.g. stretch or slippery materials, ensures trouble-free application.
Templates for darts and waist pleats
Quick change between the operations "darts" and "waist pleats" by exchange of the template set
Standard-templates for straight darts (0793 078001) and curved darts (0793 078002)
Standard-templates for waist pleats (0793 078034)
Seam shapes of darts and waist pleats
The straight dart has a straight seam course. This can cause a small "bubble" with different fabrics. To prevent this, the curved dart is the ideal solution. Due to the curved seam, the angle of the dart is much smaller and prevents the "bubble" at the end of the dart. The seam course of the waist pleat has a small curve with stitch condensation so that the material is not damaged by possible backtacking.
Fine adjustment for the dart point
For a perfect dart point without "bubble", the stepless fine adjustment can be used in addition to the seam shape for the dart.
Max. sewing length
The max. sewing length is depending on the dart angle.
Performance examples in 480 min.:
Performance: approx. 7,000 darts/ pleats in 480 min.
743-121-01: approx. 7,500 darts or waist.
743-221-01: approx. 6,500 darts or waist pleats.
Angle quick adjustment
Dart / waist pleat angles of 0° to 10° can be adjusted by means of the quick adjustment.
High-quality Dürkopp Adler control technology
High-quality control technology with “DAC classic” control system and machine-ID
The sewing units are equipped with the “DAC classic” control system. All machine parameters are stored in the machine ID and are retained when the control system is changed.
Constant quality due to most accurate repetition
Most easy operation, thus short training periods
Trouble-free processing of all kinds of clothing fabrics
Examples of use
Casual trousers
Classic trousers
Ladies pants
Skirts

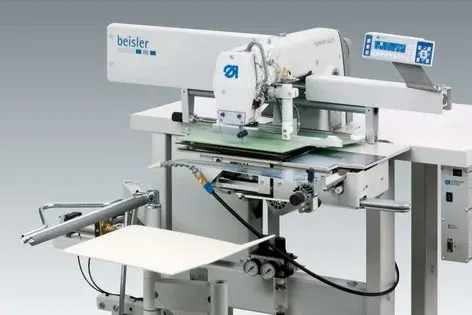

743-121-01 Double chainstitch version

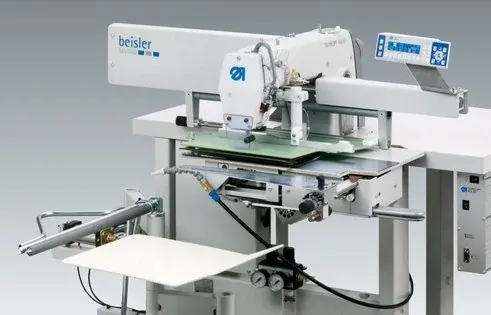

743-221-01 Double lockstitch version
Specifications
| Model | 743-121-01 | 743-221-01 |
|---|---|---|
| Air requirement per stroke / Air pressure [NL] [bar] | 2,0 / 6 | 2,0 / 6 |
| Angular adjustment range | 0° – 10° | 0° – 10° |
| Bobbin thread monitor | – | ● |
| Bundle clamp | ○ | ○ |
| Clamp, top and bottom feed | ● | ● |
| Double chainstitch (401) | ● | – |
| Horizontal hook, small (S, Ø 22mm) | – | ● |
| Lockstitch (301) | – | ● |
| Looper (in-line) | ● | – |
| Needle size [Nm] max. | 90 | 90 |
| Needle system [Nm max.] * depending on the sewing equipment | 934 RG | 134 SERV 7 |
| Needle thread monitor | ● | ● |
| Nominal voltage [V], [Hz] | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz |
| Packaging size (Length, Width, Heigh) [mm] | 2.300 / 1.200 / 1.350 | – |
| Power consumption [kVA] max. | 1.0 | 1.0 |
| Program control, operating panel OP3000 with graphic display | ● | ● |
| Reflecting light barrier for automatic sewing stop at fabric end | ● | ● |
| Sewing lenth (depending on the angle and seam shape) | 30-150 | 30-150 |
| Sewing Material SL = very light / L= light / LM = light to medium heavy / M= medium heavy / MS = medium heavy to heavy / S = heavy | L / LM / MS | L / LM / MS |
| Single needle | ● | ● |
| Stitch condensing, automatic *** = Programmable stitch length 0,5 – 6.5 mm | ● | ● |
| Stitch length [mm] max. | 2,2 | 2,2 |
| Stitches/Min. (ex works) Depending on the selected sewing head | 4.800 | 4.500 |
| Synthetic [Tkt.] max. * = Max. thread size upper thread: Tkt. 10/3, max. thread size Unterfaden: Tkt. 20/3 ** = Max. thread size upper thread: Tkt. 15/3; max. thread size Unterfaden: Tkt. 40/3 | 120 | 120 |
| Thread trimmer | ● | ● |
| Weight, complete [kg] | 180 | 180 |
● Standard ○ Optional
