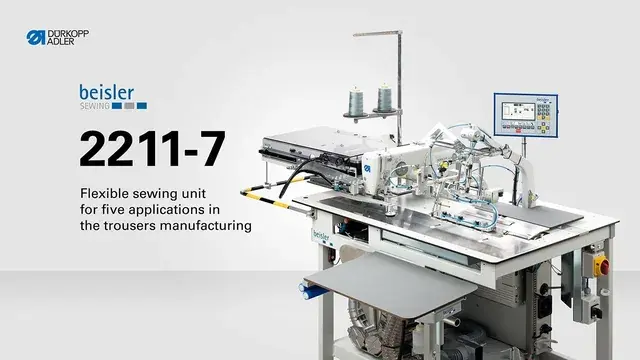

2211

Productive and flexible

The 2211 allows 5 different operations on only one unit:

1. attaching the left fly

2. attaching the right fly

3. attaching the wing pockets

4. attaching of wing pockets with piping

5. topstitching the wing pockets

Simplify your processing by using the sewing unit 2211-5. Attach the left or right fly piece in just one operation. Also, the attaching of wing pockets can be done easily and quickly in one operation. Unskilled operators can be trained on the machine in a short time. The machine takes over the seam quality, the operator the productivity.

Your benefits at a glance

High application flexibility - Up to 5 operations on one machine!

1. Attach wing pockets

2. Attach wing pockets with piping

3. Topstitching wing pockets

4. Attach left fly

5. Attach right fly

Quick adjustment

Four various topstitch widths available with quick adjustment

In order to react quickly to different material thicknesses or topstitching margins, the sewing unit is equipped with a quick adjustment for four different stitching widths. Topstitching widths from 1.6 to 8.0 mm can be realized.

Automatic seam end control

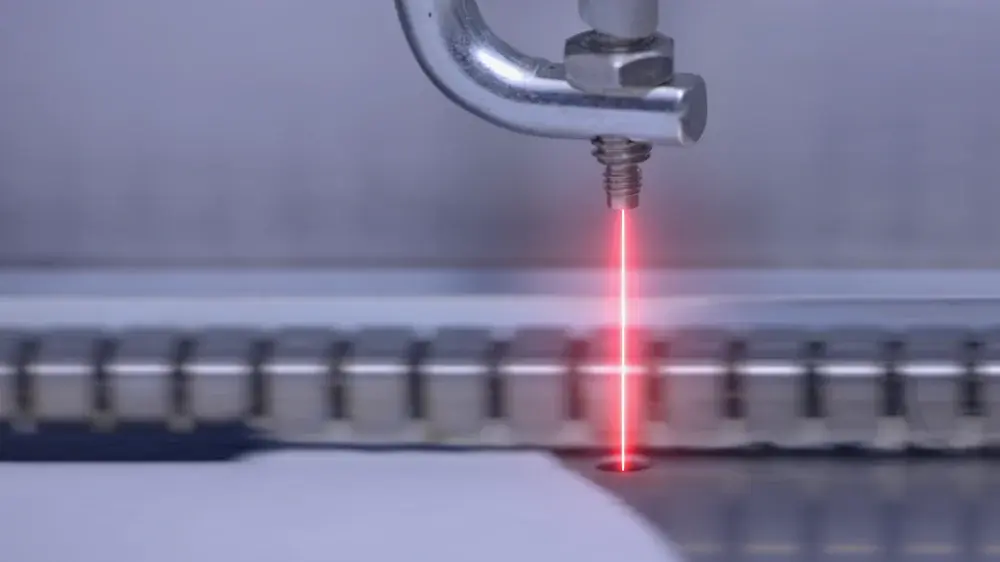

Automatic seam end control either by seam length measurement or reflecting light barrier

via reflex light barrier or distance measurement. These allow flexible and automatic adjustment to the pocket bag size and thus the length of the seam.

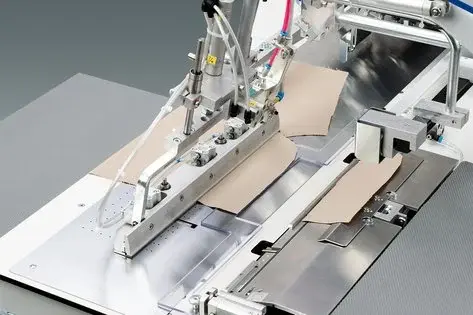

Folding length

Folding station for facings up to 350 mm long (400 mm as optional equipment)

up to max. 350 mm as standard.

Optionally up to 400 mm folding and max. seam length up to 450 mm.

Bundle clamp with rest table

Bundle clamp for trousers

The bundle clamp with rest table is available as an option (1970 593004). For hanging production the rest table (1970 592994) without bundle clamp is recommended.

• Thread monitor for the remaining bobbin thread for safe seam finishing

• Precise cutting of the seam overlap

• Sewing head class 281 for seams with particularly low thread tension for smooth sewing results

• Modern and reliable Dürkopp Adler control technology ”DAC classic”

Examples of use

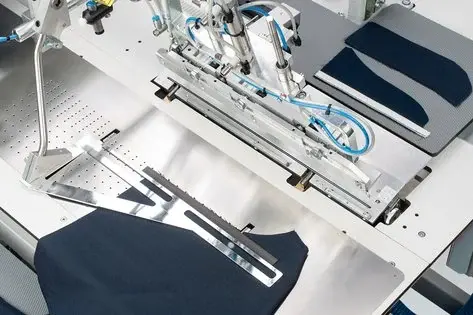

Attach wing pockets with open pocket bag

Attach wing pockets with closed pocket bag

Attach wing pockets with piping

Topstitch wing pockets

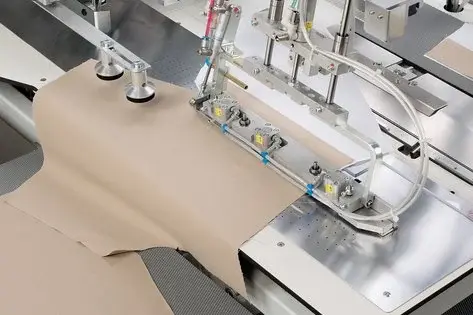

Attach left fly piece

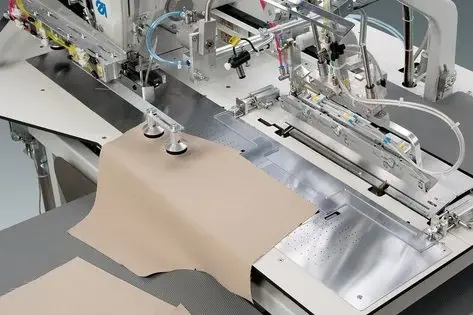

Sew right fly piece

● Standard ○ Optional
