Dürkopp Adler
630-10
Optimized work station for pre-ruffling of sleeves
Product features

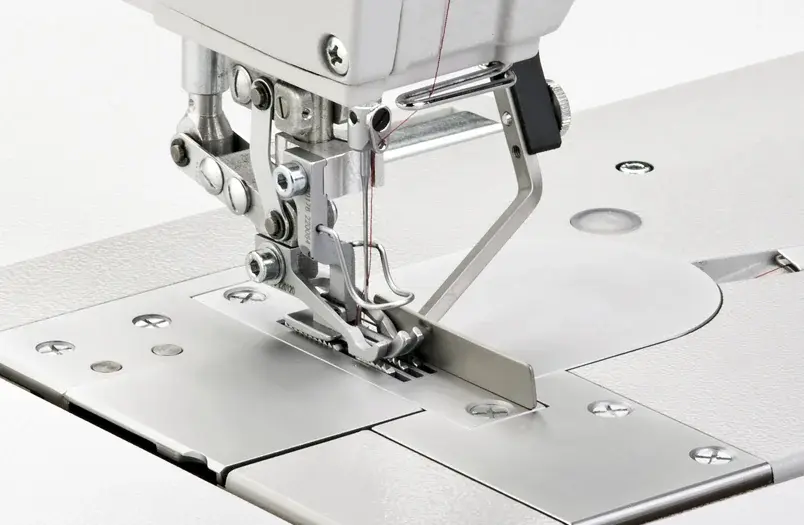

Finest fullness nuances by means of differential top and bottom feed
Fullness where it is desired, perfectly symmetrical on the right and on the left, completely identical parts – no problem for the 630-10. The control panel allows quick and easy adaptation to different materials. All relevant data are clearly visible to the user.
Your benefits at a glance
Finest fullness nuances
Finest fullness nuances by means of differential top and bottom feed, stepper motor controlled
Finest fullness nuances by means of differential top and bottom feed, individually selectable, stepper motor controlled, exact repetition even in difficult fabrics.
Single programmable parameters
Needle and bobbin thread tension, stitch length and speed can be programmed per step for a perfect stitch pattern independent of the material.
Ergonomically designed work station
Fatigue-free working with integrated LED sewing light and optimal view on the material.
"Teach-In"
Easiest programming possible by “teach-in” procedure
Easiest programming possible by “teach-in” procedure and automatic mirroring for the second sleeve. The touch screen with coloured graphic display of the seam course clearly shows the current program. All important parameters as e.g. fullness, thread tension, stitch length etc. are easily readable and programmable.
Control technology
Modern, reliable and network-capable Dürkopp Adler control technology “DAC comfort”, with high-resolution touch panel OP7000.

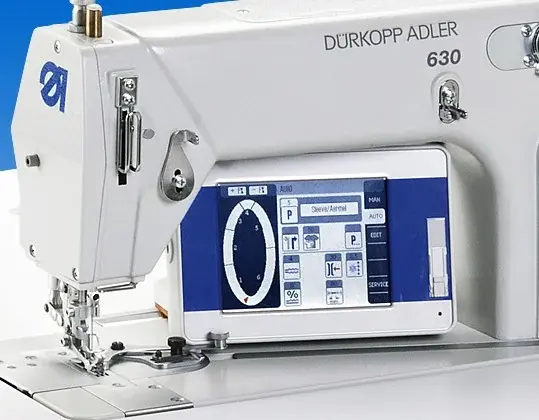

Operating panel OP7000
Touch Screen
The touch screen with coloured graphic display of the seam course clearly shows the current program. All impor tant parameters as e.g. fullness, thread tension, stitch length etc. are easily readable and programmable.
Seam programming
Up to 80% faster seam programming compared to the classical method
The touch screen with coloured graphic display of the seam course clearly shows the current program. All important parameters as e.g. fullness, thread tension, stitch length etc. are easily readable and programmable.
Short training times due to easiest operation
Quick and easy software update and sewing program saving by USB flash drive
Constant fullness with exact repetition due to patented light stroke system
Service-friendly calibration
Examples of use

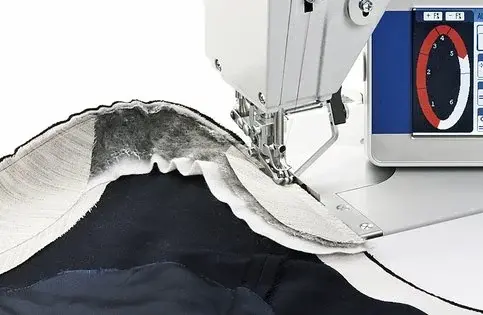

Pre-ruffling of the sleeve crown, with sleeve head roll

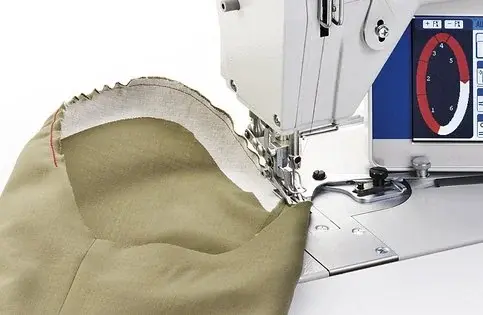

Pre-ruffling of the sleeve crown, without sleeve head roll
Specifications
| Model | 630-10 |
|---|---|
| Air requirement per stroke / Air pressure [NL] [bar] | 0,1 / 6 |
| Differential bottom feed and variable top feed | ● |
| Dimensions (Length, Width, Height) [mm] | 1.350 / 900 / 1.100 |
| Double chainstitch (401) | ● |
| Feeding length Top feed; bottom feed | 8 / 6 |
| Flat bed machine with clearance C [mm] D [mm] | 281 / 144 |
| Fullness above, flat sewing, fullness below | ● |
| Integrated LED sewing light with dimmer | ● |
| Looper (crossline) | ● |
| Needle size [Nm] max. | 70-130 |
| Needle system [Nm max.] * depending on the sewing equipment | 934 RG |
| Nominal voltage [V], [Hz] | 1x230V, 50 / 60 Hz |
| Power consumption [kVA] max. | 0,5 |
| Program control, operating panel OP7000 with graphic display and touch screen | ● |
| Sewing Material SL = very light / L= light / LM = light to medium heavy / M= medium heavy / MS = medium heavy to heavy / S = heavy | L / M |
| Single needle | ● |
| Stitch condensinging and sewing foot lift, pedal controlled | ● |
| Stitch length [mm] max. | 1,0 - 4,0 |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 5.000 |
| Synthetic [Tkt.] max. * = Max. thread size upper thread: Tkt. 10/3, max. thread size Unterfaden: Tkt. 20/3 ** = Max. thread size upper thread: Tkt. 15/3; max. thread size Unterfaden: Tkt. 40/3 | 120 / 3 - 70 / 3 |
| Thread trimmer | ● |
| Weight, complete [kg] | 108 |
| Weight, sewing head [kg] | 54 |
● Standard ○ Optional
