Atlanta Attachment
1278-12

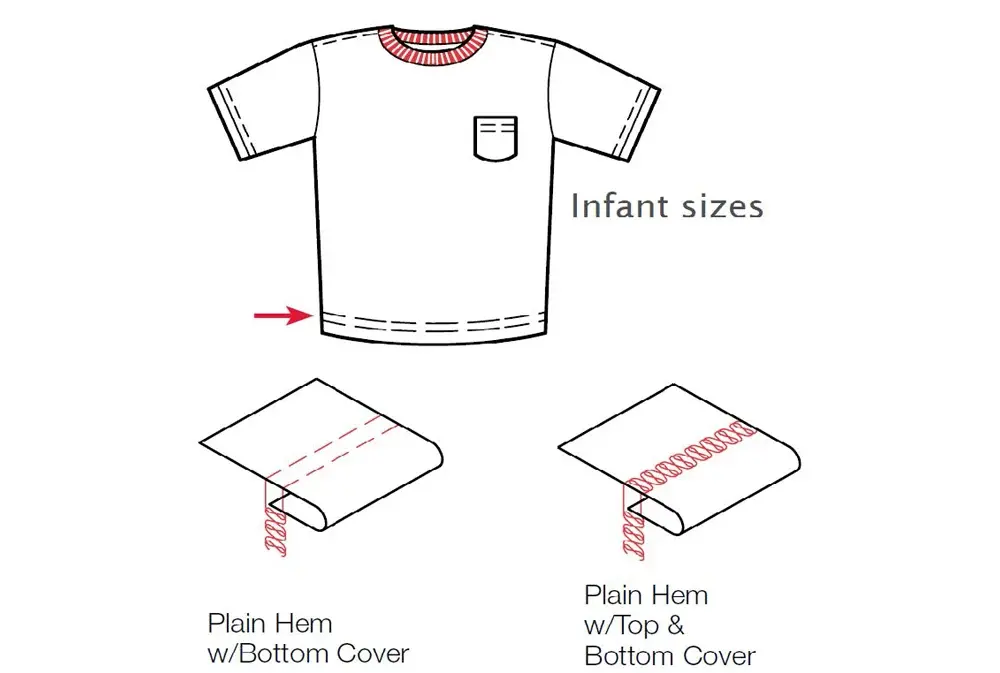

Automatic Coverstitch Bottom Hemmer (Infant Size)
Product features
Patented Serial Bus Control System Shirt may be hemmed first or last operation Tandem operation Automatic size control Perfectly aligned oversew Electronic active edge guiding system 100% cotton thread max RPM
Shirts may be tubular or with side seams
Production
Approximately 415 bottom hems per hour, depending on material and size of parts. (based on tandem setup)
Operation

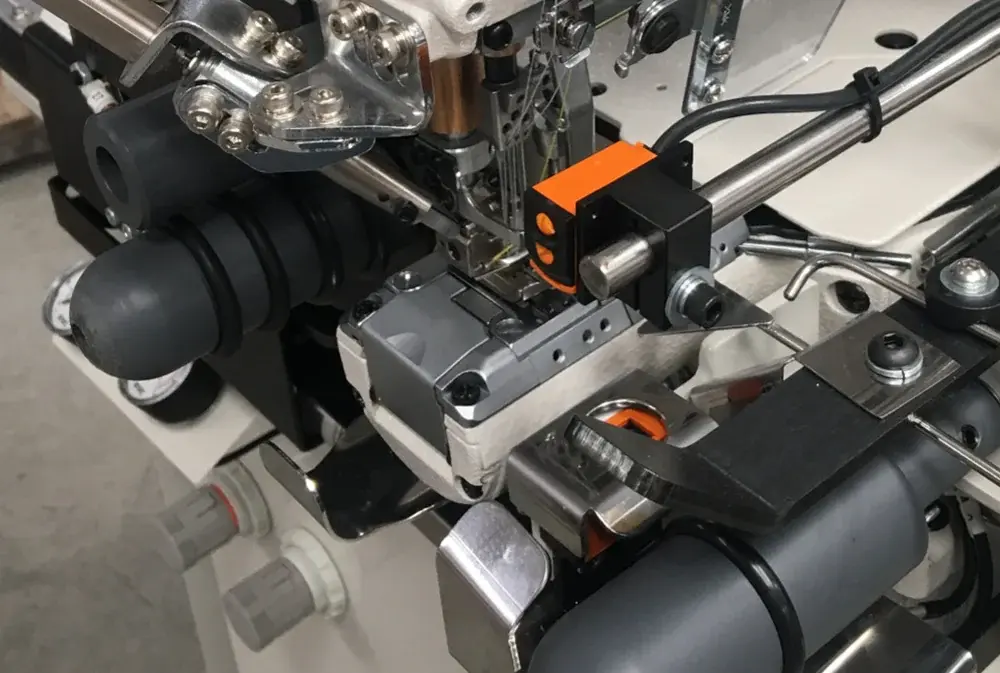

A tubular or side-seamed body is loaded over the expansion rollers. When loaded, the rollers expand to the proper tension, indexes the shirt under the presser foot, and the sewing cycle is initiated. The finished hem is sensed and perfectly oversewn (with stitch-condensing if desired). The threads are trimmed and the garment is automatically stacked.
Specifications
| Voltage (v/ph/hz) | 220v 1ph |
|---|---|
| Current (amps) | 6.5 |
| Air pressure (psi) | 90 |
| Air consumption (cfm) | 15 |
| Shipping weight (lbs) | 890 |
| Shipping dimensions (w/l/h, inch) | 46 x 54 x 60 |
