Atlanta Attachment
211M

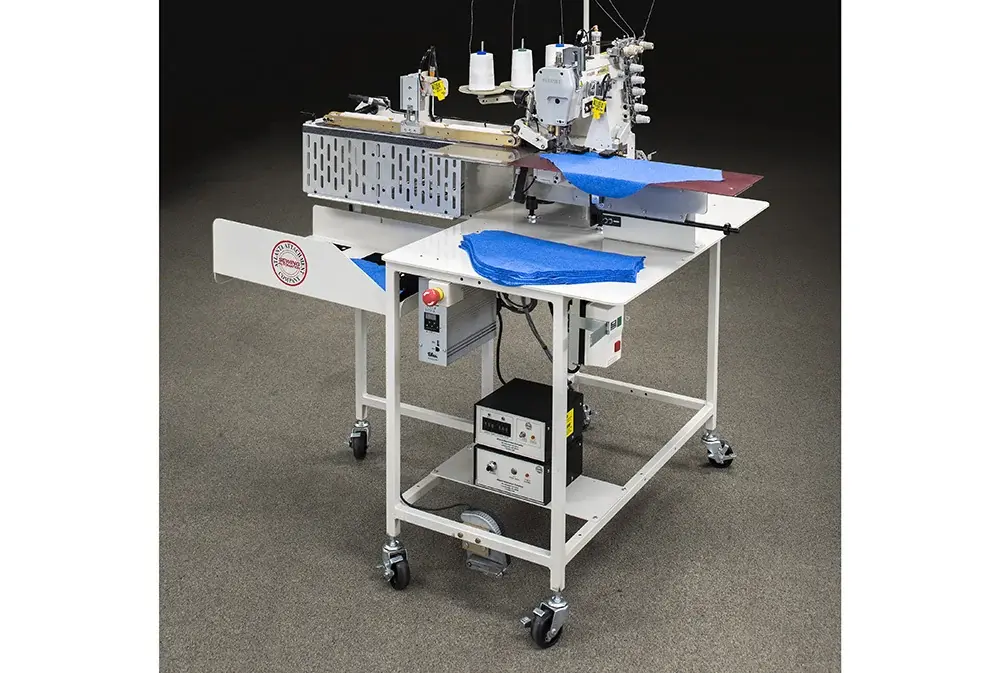

Semi-Automatic Two-Needle Sleeve Hemmer
Product features
Low Cost Simple to Operate Easy to Maintain Coverstitch does not ravel back Quality flat hems – No twist or roping Sewing head with top feed Two or three needle sewing head Sewing head with top feed and under trimmer Sewing head with thread under trimmer Auto Stacker Sewing head with puller and thread impact cutter Top coverstitch
Production
Approximately 1125 pieces per hour depending on material and size of parts
Options
0211-300 Folder assembly 211M 211-KIT03 Thread tension release 211MKIT01 Vacuum chain remover 191297C ACC, Blow gun & light SP211M Spare parts kit
Operation

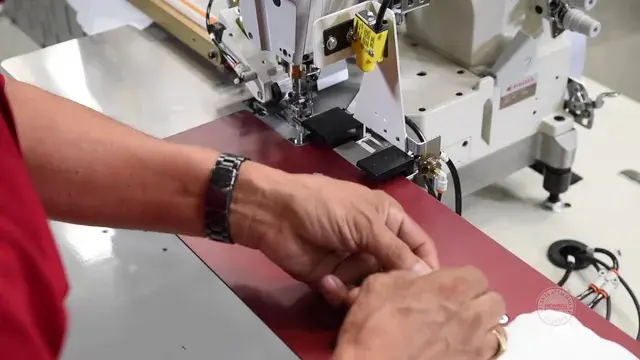

The operator loads the sleeve under the presser foot. The machine starts and hems the sleeve. After hemming, the sleeve may be left in a chain or the thread can be cut and the sleeve stacked.
Machine Model
Yamato, Pegasus, Union Special, Siruba
Specifications
| Voltage (v/ph/hz) | 220v 1ph |
|---|---|
| Current (amps) | 5 |
| Air pressure (psi) | 90 |
| Air consumption (cfm) | 19 |
| Shipping weight (lbs) | 950 |
| Shipping dimensions (w/l/h, inch) | 60 x 62 x 60 |
