Product features
Patented Serial Bus Control System DC electronic motor Combines hemming and closing operation w/auto backlatch Sews 100% cotton thread max RPM Plain hem or imitation collarette style (patented) “No tool” adjustments by operator Auto indexing stacker Computerized soft touch control system Adjustable transfer station for closing straight or contour seams Unique automatic fold-in-half system allows sleeves to be overlapped during sew cycle, increasing production Self-contained waste removal system Operator and technician friendly for easy adjustments and maintenance

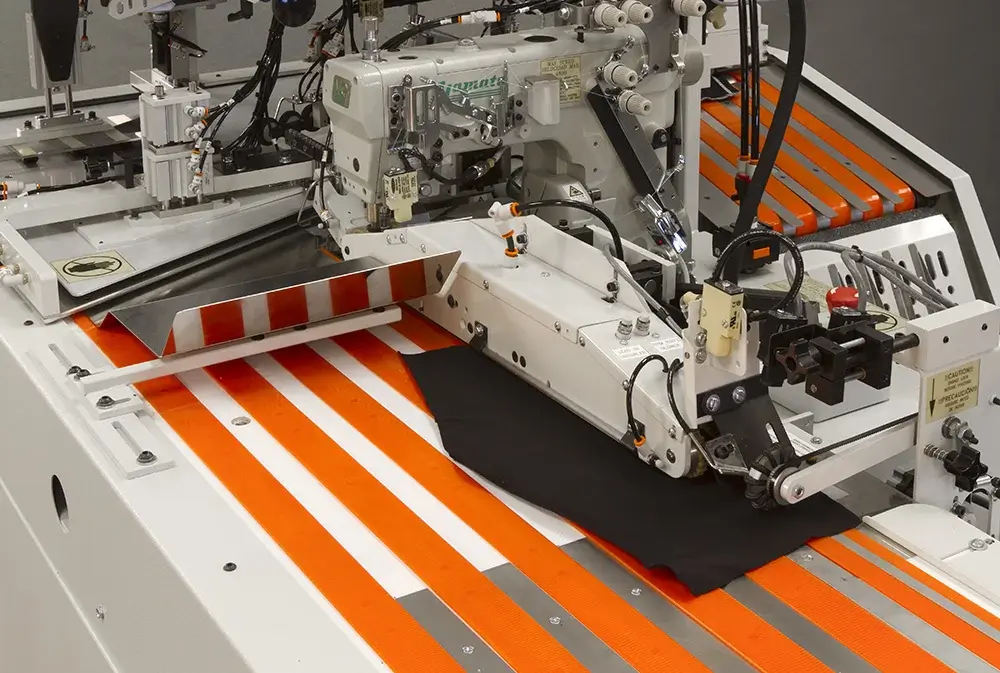

An electronically controlled automatic workstation consisting of a conveyorized hemming system, fold-in-half station, a closing station with automatic backlatch and a programmable indexing stacker.
Production
1,120 hemmed & closed sleeves per hour
Options
2211-EG1 – Active Edge Guide 311-5A – Top cover 3 needles
Operation

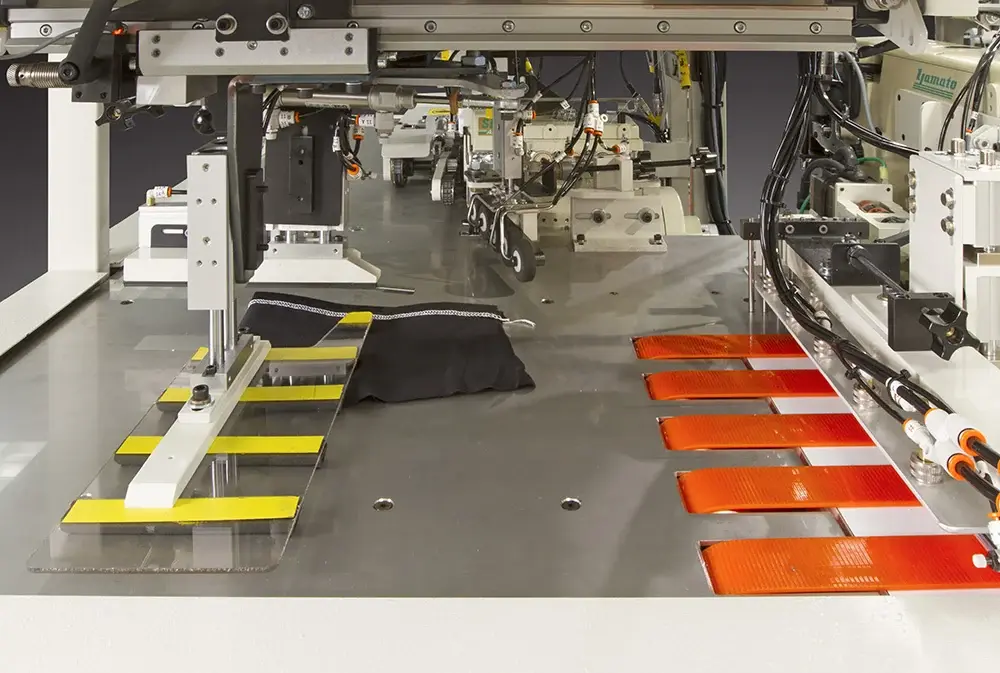

The operator places parts to an edge guide, initiates the sewing cycle and continues loading. The sleeves are automatically trimmed, folded, hemmed, folded in half, transported to closer, backlatched, closed and stacked. Stacker indexing is accomplished through programming of the number of sleeves in a bundle.
Specifications
| Voltage (v/ph/hz) | 220v 1ph |
|---|---|
| Current (amps) | 15 |
| Air pressure (psi) | 90 |
| Air consumption (cfm) | 25 |
| Shipping weight (lbs) | 1950 |
| Shipping dimensions (w/l/h, inch) | 106 x 65 x 67 |

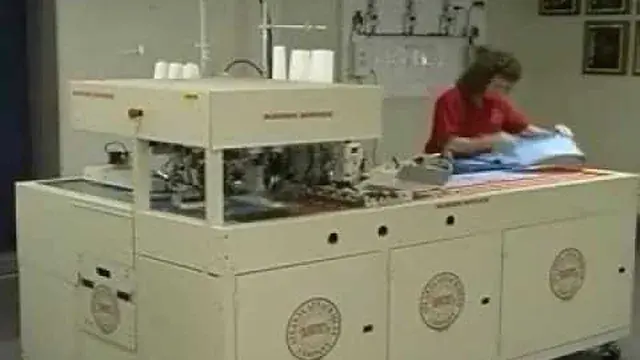

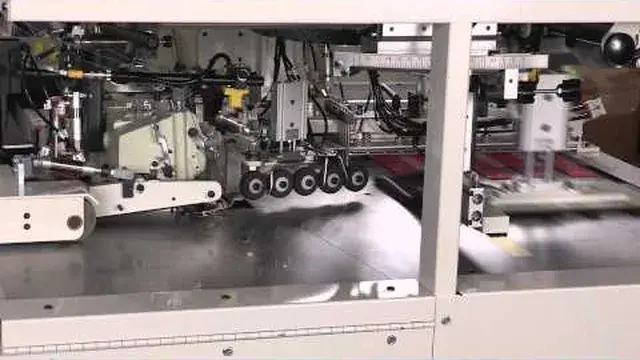

Videos
