Atlanta Attachment
AP264
Automatic Long Sleeve Closing Station
Product features
Auto start & stop Auto bundle return Auto backlatch Auto thread cutter DC electronic motor & microprocessor controls Electronic active edge guiding system Auto thread saver Auto piece counter Auto stack Short or long sleeves
Production
Approximately 1080 short sleeves per hour Approximately 1,260 long fleece sleeves per hour Approximately 720 long jersey sleeves per hour Production depends on material and size of parts.
Options
Indexing bundle table
Operation

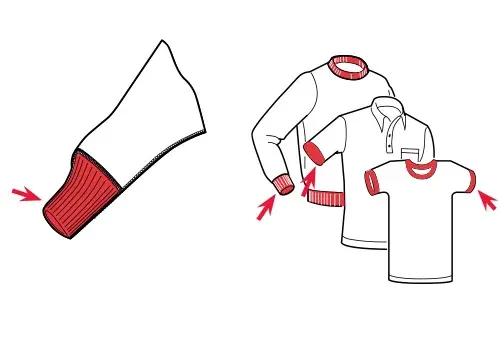

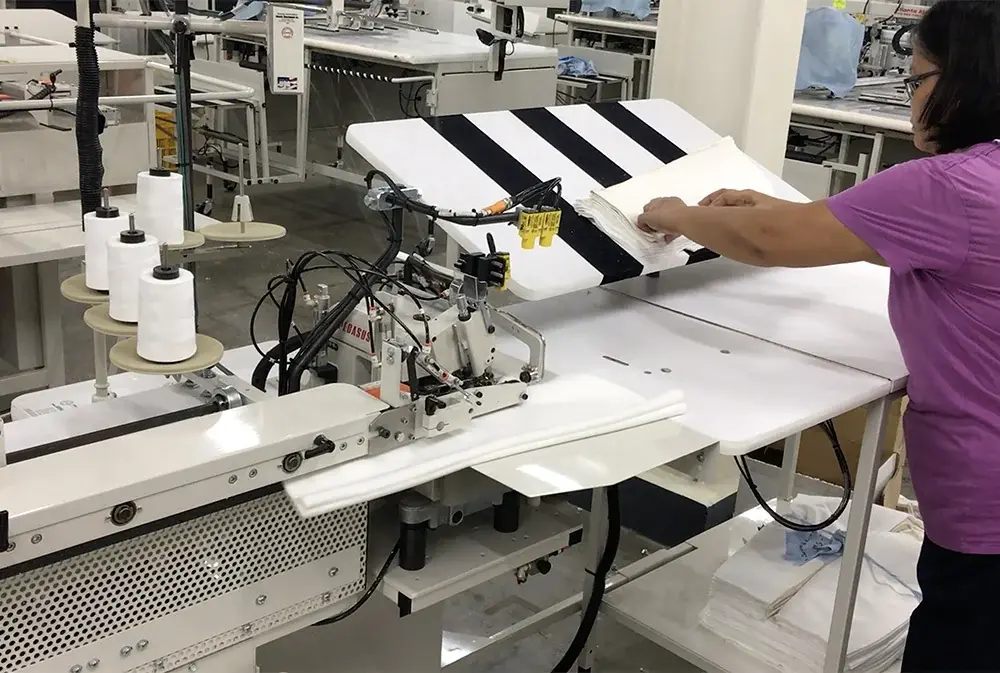

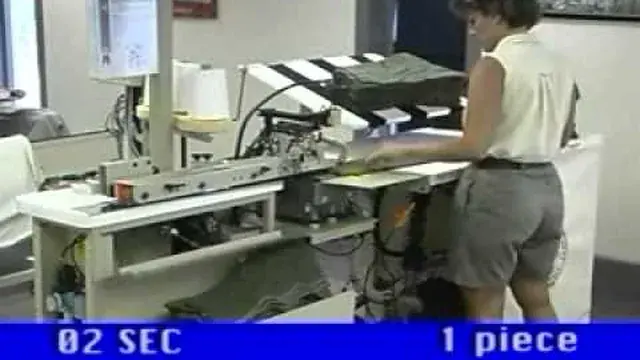

The operator folds the sleeve, aligning the hemmed or cuffed end and presents it to the presser foot. A photo cell senses the beginning edge, drops the presser foot and begins the sew cycle with an automatic backlatch. The electronic active edge guiding system controls the sleeve during sewing cycle, while the operator prepares the next sleeve. When the seam is completed, the machine stops, the thread chain is cut and the sleeve is stacked automatically.
Machine Model
Most overlock machines.
Specifications
| Voltage (v/ph/hz) | 220v 1ph |
|---|---|
| Current (amps) | 5 |
| Air pressure (psi) | 90 |
| Air consumption (cfm) | 13 |
| Shipping weight (lbs) | 1200 |
| Shipping dimensions (w/l/h, inch) | 96 x 72 x 53 |
