Atlanta Attachment
1278-6
Automatic Rib Knit Bottom Band Setting Station
Product features
DC electronic motor & microprocessor controls Tandem operation Reduces ergonomic risk Minimizes fabric waste Uniform gathering Dual electronic active edge guiding system Automatic stack Increased production Piece counter

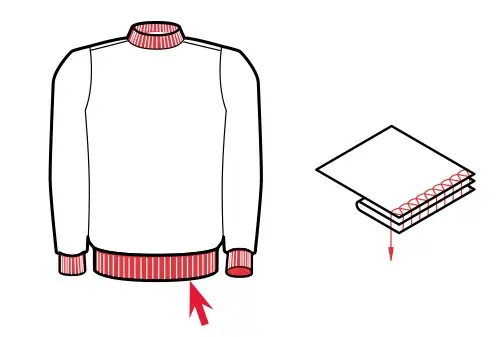

Shirt and band may be tubular or with side seams
Production
180 – 225 dozen bottom bands per 8 hour shift. (based on a tandem setup) Depending on material and size of parts
Operation

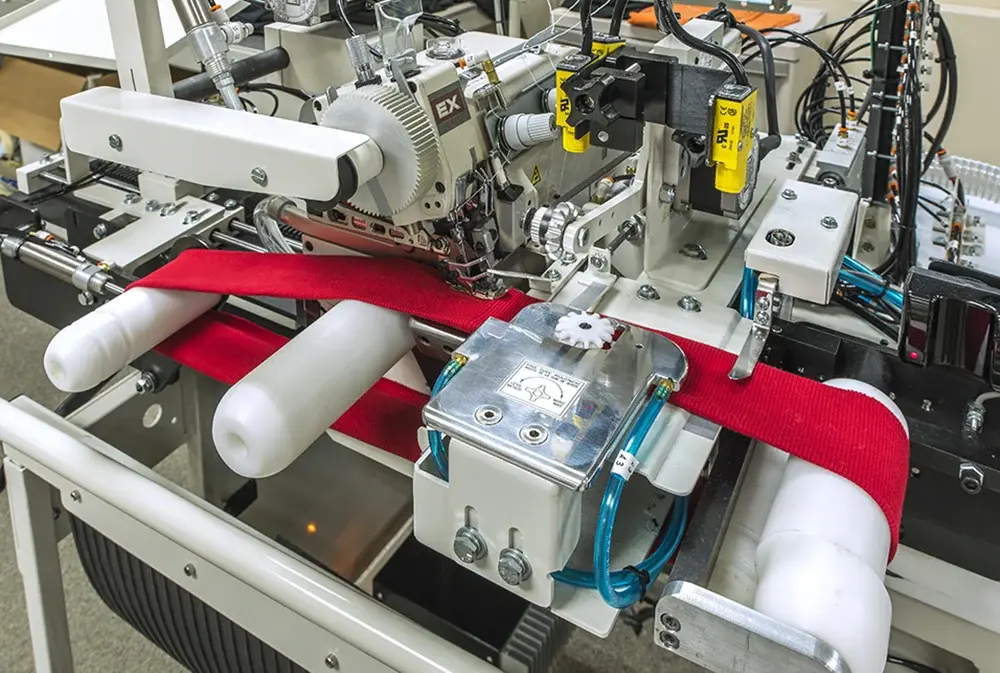

The operator folds the circular rib knit piece in half to form a band and places it over the expansion guide rollers. The rollers automatically expand for loading the body. The body is loaded over the rollers and band and a touch of the start sensor expands the rollers to sew position and indexes the parts under the presser foot and sew cycle begins. The operator is free to load a second machine. When the finished seam is sensed the parts are oversewn a predetermined distance, thread chain is cut, and the part is automatically stacked.
Machine Model
Yamato AZ8403 Pegasus Juki Union Special
Specifications
| Voltage (v/ph/hz) | 220v 1ph |
|---|---|
| Current (amps) | 6 |
| Air pressure (psi) | 90 |
| Air consumption (cfm) | 23 |
| Shipping weight (lbs) | 890 |
| Shipping dimensions (w/l/h, inch) | 60x54x60 |

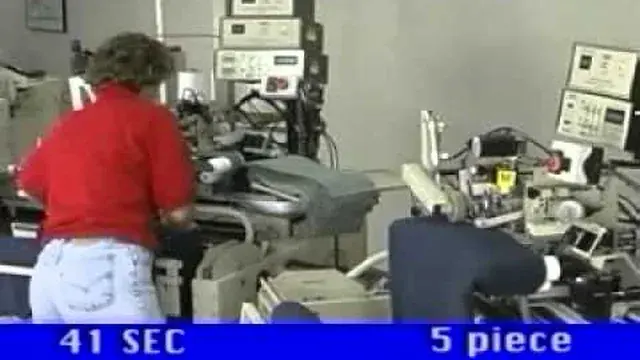

Videos
